CIMC HONTO 25ton 40 ft ISO LPG tank container for LPG transportation container tank

  • 1 - 9 Sets
    $46,100.00
  • >=10 Sets
    $46,050.00
Model Number:
HT42FD-51.7A
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Capacity:
51700L
Place of Origin:
Hubei, China
Brand Name:
Chinese Brand HonTo
Dimension(L*W*H):
12192mmX2438mmX2591mm
Weight:
11900Kg
Certification:
BV
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Product name:
40 feet Tank contaier
Medium:
LPG
Max working pressure:
1.8MPa
Material:
Carbon Steel
Application:
Industry
Hydro Test Pressure:
2.58MPa
U2 Stamp:
Yes(ASME)
Design Standard:
ASME Standard
Design Temperature:
55℃
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Port
Shanghai/Wuhan/Jingzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Video Description
Detailed Images

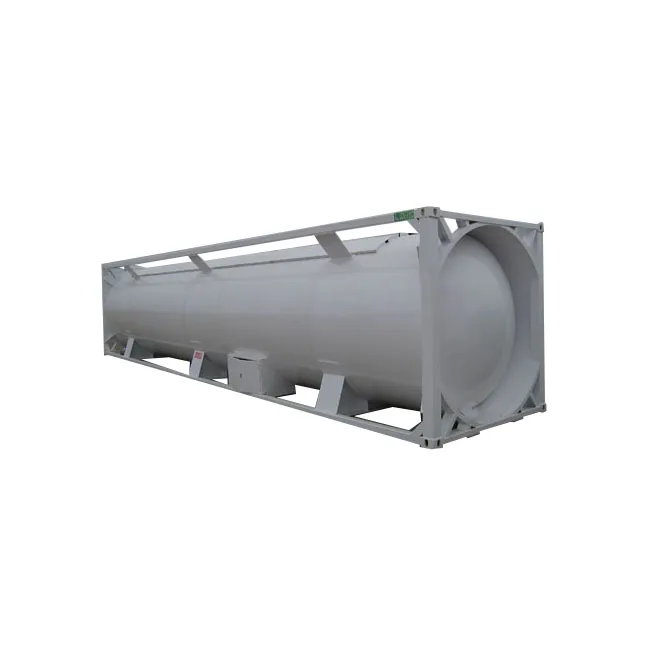

Technical Parameters of 40 Feet LPG Tank Container
Product Name
40Feet LPG Tank Container
Model
HT42FD-51.7A
Design Code
ASME Code
Design Pressure
1.8MPa
Design Temperature
55℃
Shell Material
SA-612M Normalized
Head Material
SA-612M Normalized
Overall Dimension(L/W/H)
12192mmX2438mmX2591mm
Nominal Volume
51700L
Tare Mass
11900KG
Max Gross Mass
36000KG (Theoretical)
Internal MAWP
1.8MPa at 55℃
HYDRO Test Pressure
2.58MPa
Leakage Test Pressure
1.64MPa
Medium
LPG
Medium Characteristic
No Lethal
Corrosion Allowance
0mm
Joint Efficiency
1.0
Authorized Inspection Agency
BV/TUV
U2 Stamp
Yes
Product Description

Advantages

HONTO brand tank containers have the following advantages when compared with tank trailers
1.The tank containers can be used for transportable and stationary vessels.
2.The tank containers can be transported from door to door, which makes the transportation safe and secure.
3.The tank containers can be transported by road, rail, river and sea, which shortens the time of loading and discharging of tankers and storage tanks at the filling stations. Furthermore, the tanks can be stacked for 6 ~ 9 layers and occupy little room.
4.Tank containers can be separated from the trailers.
HONTO brand tank containers comply with the standards and codes abroad and at home. They have reasonable structure, reliable performance, beautiful appearance, easy operation, and so on

Packing & Delivery
Company Introduction


Company Introduction

CIMC·Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd. has 30 years experience in the design and manufacturing of storage and transportation equipments for liquefied gas and dangerous chemicals. The company has participated in the compiling of National TSG R0005-2011 Mobile Pressure Vessel Safety Technology Supervision Regulation and GB 18564.1-2006 Liquid & Dangerous Goods Transport Tank Vehicle Standards.

The company has developed 62 models of liquefied gas transport vehicle which features more than 30 patented technologies. For 20 years, the production and sales volume always ranks the first in domestic market, and the products have been exported to more than 40 countries and areas.

Hongtu liquefied gas transport vehicle is specially used for the road transport of liquefied gas like LPG, propane, propene, liquid ammonia, butadiene, iso-butane, and isobutene. The company has more than 30 core technologies including stress analysis and design, high strength light aluminum alloy weather board made of aeronautical materials with military manufacturing technology, wholly embedded safety valve, quadrangular outriggers, precision assembly between the tank and the travel mechanism, etc. as well as professional modular manufacturing lines, robot welding, etc. For more than 20 years, the company is always in the leading position and ranks the first in terms of market share in the domestic market.

Our Workshop

Our Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2 .

Main Products

 Semi-trailer

 Bobtail/Rigid Tanker

 ISO Tank /Tank Container

 Spherical Tank

 Horizontal/Mounded/Domestic Storage Tank

LPG Plant/Filling Plant/Autogas Station

LPG/Autogas Filling Skid
