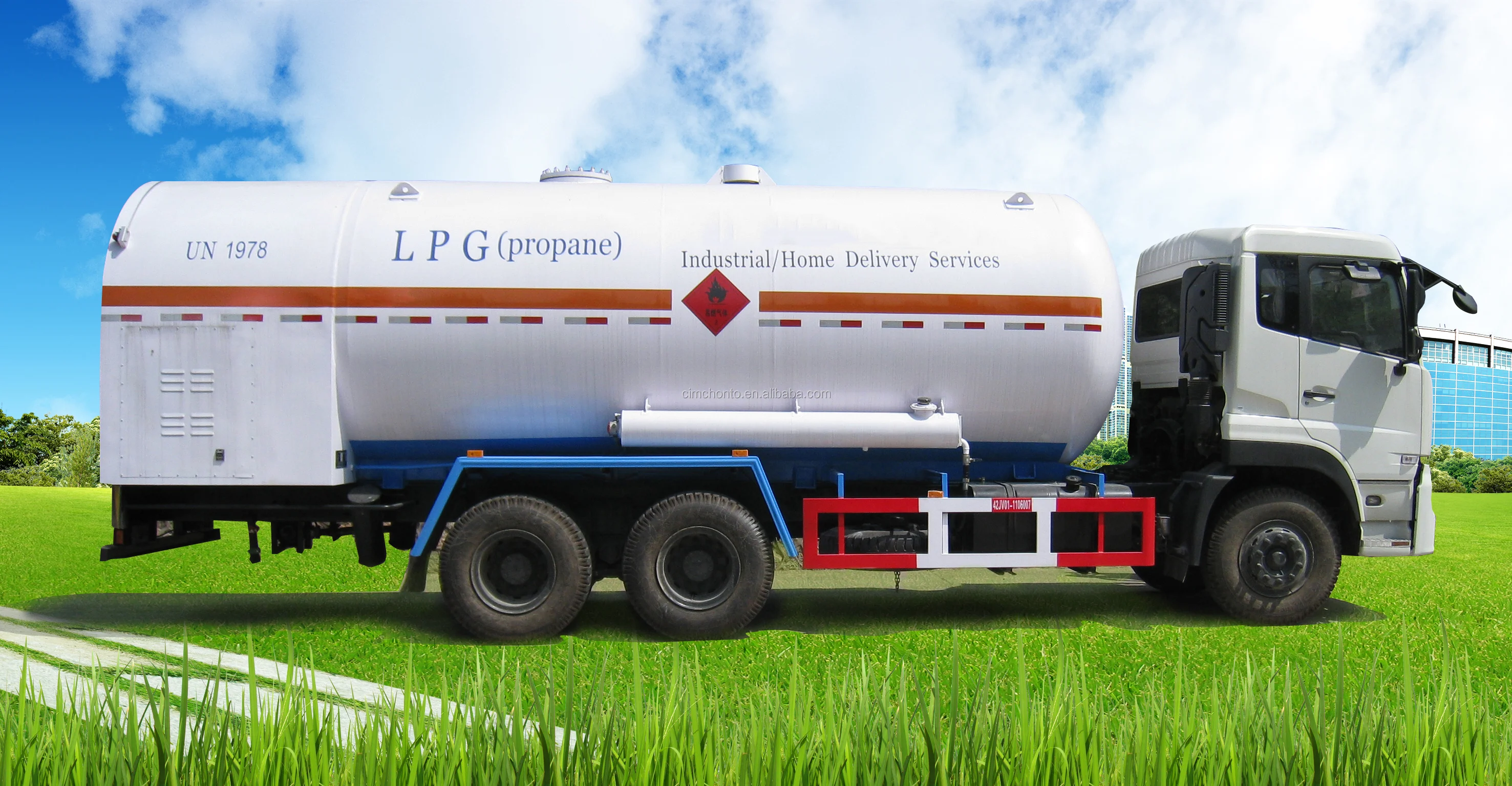

10m3 4.2 tons Rigid with Pump Propane lpg gas tank truck

FOB Reference Price:Get Latest Price
$30,000.00 - $40,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
HT5160GYQ3D
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Storage:
LPG
Drive Wheel:
4x2
Horsepower:
251 - 350hp
Transmission Type:
Manual
Fuel Type:
Diesel
Tank Volume:
5001 - 10000L
Engine Capacity:
9726 ml
Dimensions (L x W x H) (mm):
8830x2490x3050
Brand Name:
CIMC Enrich Hongtu
Place of Origin:
Hubei, China
Gross Vehicle Weight:
15130
Product name:
HT5160GYQ3D 10 m3 LPG Tanker (Propane)
Chassis:
ZZ1167M4611W
Kerbweight:
10800 kg
Payload (product weight):
4200 kg
Design pressure:
1.61/-0.1 MPa
Calculation pressure:
1.73 MPa
Design temperature:
50℃
Tank material:
Q345R
Corrosion allowance:
1 mm
Tank mass:
2900 kg
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude packing
Port
any port in China
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Description

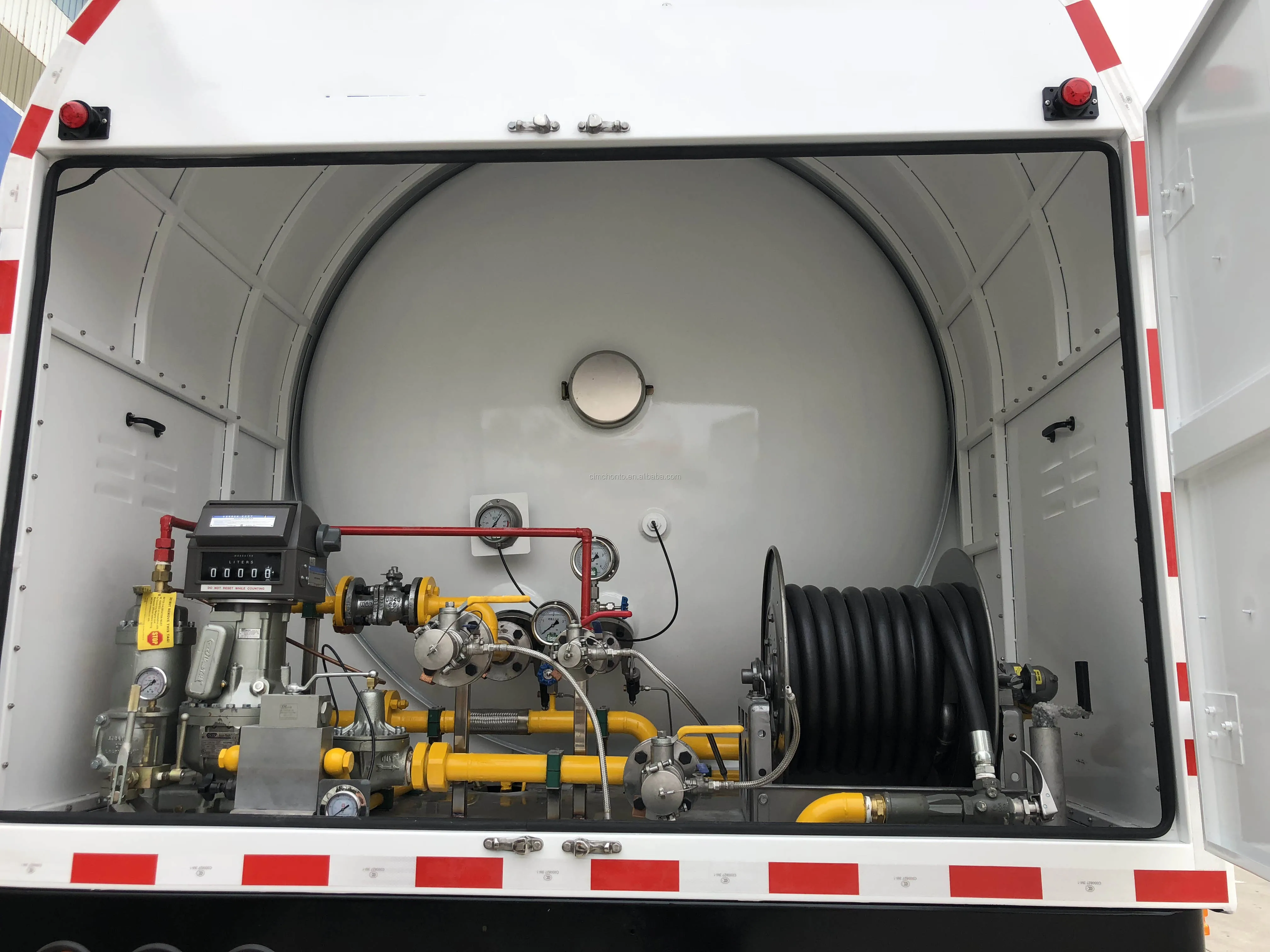

Hongtu is qualified to design and manufacture bobtail truckers with pump, and loading & unloading system on the side or at the rear of the tankers. The pump can be driven by PTO, hydraulic oil or electric motors. The valves and instruments used on the bobtail tankers are well-known international brands, catering to application requirements of Europe, America, Southeast Asia and other countries.

Technical specification

Design code:

ASME BPVC Ⅷ-1/Ⅷ-2,EN 12493,GB/T 19905,JB/T 4732

Vessel capacity:

5m3~40m3

Material:

SA-516, SA-612, P460, Q420R, Q370R, etc.

HT5160GYQ3D 10m³ LPG Tanker (Propane)
Item
Data
Vehicle
Chassis
ZZ1167M4611W
Kerbweight
10800 kg
Payload (Product weight)
4200 kg
Gross Vehicle Weigh(GVW)
15130 kg
External Dimensions
(Length*Width*Height)
8830x2490x3050
Full load
First front axle load
6000 kg
First front axle load
6500 kg
Middle and rear axle load
9130 kg
Max. Vehicle roll anlge
>35°
Design the limited velocity
Straight road
60 km/h
Turning
25 km/h
Tank
Design pressure
1.61/-0.1 MPa
Calculation pressure
1.73 MPa
Design temperature
50 ℃
Water capacity
10 m3
Filling medium
LPG (Propane)
Tank material
Q345R
Corrosion allowance
1 mm
Tank mass
2900 kg
Hydraulic test pressure
2.10 MPa
Pressure of leak test
1.61 MPa
Heat treatment method
PWHT
External dimensions
(In-diameter*Thickness*Length)
1650x9(10)x4985
Service years
Ten years
Certifications
Company Introduction

CIMC·Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd. has 30 years experience in the design and manufacturing of storage and transportation equipments for liquefied gas and dangerous chemicals. The company has participated in the compiling of National TSG R0005-2011 Mobile Pressure Vessel Safety Technology Supervision Regulation and GB 18564.1-2006 Liquid & Dangerous Goods Transport Tank Vehicle Standards.

The company has developed 62 models of liquefied gas transport vehicle which features more than 30 patented technologies. For 20 years, the production and sales volume always ranks the first in domestic market, and the products have been exported to more than 40 countries and areas.

Hongtu liquefied gas transport vehicle is specially used for the road transport of liquefied gas like LPG, propane, propene, liquid ammonia, butadiene, iso-butane, and isobutene. The company has more than 30 core technologies including stress analysis and design, high strength light aluminum alloy weather board made of aeronautical materials with military manufacturing technology, wholly embedded safety valve, quadrangular outriggers, precision assembly between the tank and the travel mechanism, etc. as well as professional modular manufacturing lines, robot welding, etc. For more than 20 years, the company is always in the leading position and ranks the first in terms of market share in the domestic market.

Our Workshop

Our Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2 .

Main Products

 Semi-trailer

 Bobtail/Rigid Tanker

 ISO Tank /Tank Container

 Spherical Tank

 Horizontal/Mounded/Domestic Storage Tank

LPG Plant/Filling Plant/Autogas Station

LPG/Autogas Filling Skid
