16.14 tons 40m3 Propane Storage lpg cooking gas tank

FOB Reference Price:Get Latest Price
$20,000.00 - $22,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
WG18-2470-40
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hubei, China (Mainland)
Brand Name:
CIMC Enric Hongtu
Dimension(L*W*H):
2470x3240x8843 mm
Capacity:
40 m3
Weight:
8780 kg
After-sales Service Provided:
Field maintenance and repair service, Video technical support
Warranty:
1 Year
Product name:
40m3 Propane Storage Tank DN2470mm
Payload:
16140 kg
Working pressure:
≤1.61MPa
Design pressure:
1.61MPa
Allowable working pressure:
1.77 MPa
Working Temperature:
-20~50 ℃
Design Temperature:
-20~50 ℃
Filling ratio:
0.9
Corrosion allowance:
1.0 mm
Hydraulic test pressure:
2.22 MPa
Supply Ability
Supply Ability:
50 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
international standard
Port
any port in China
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Product Description

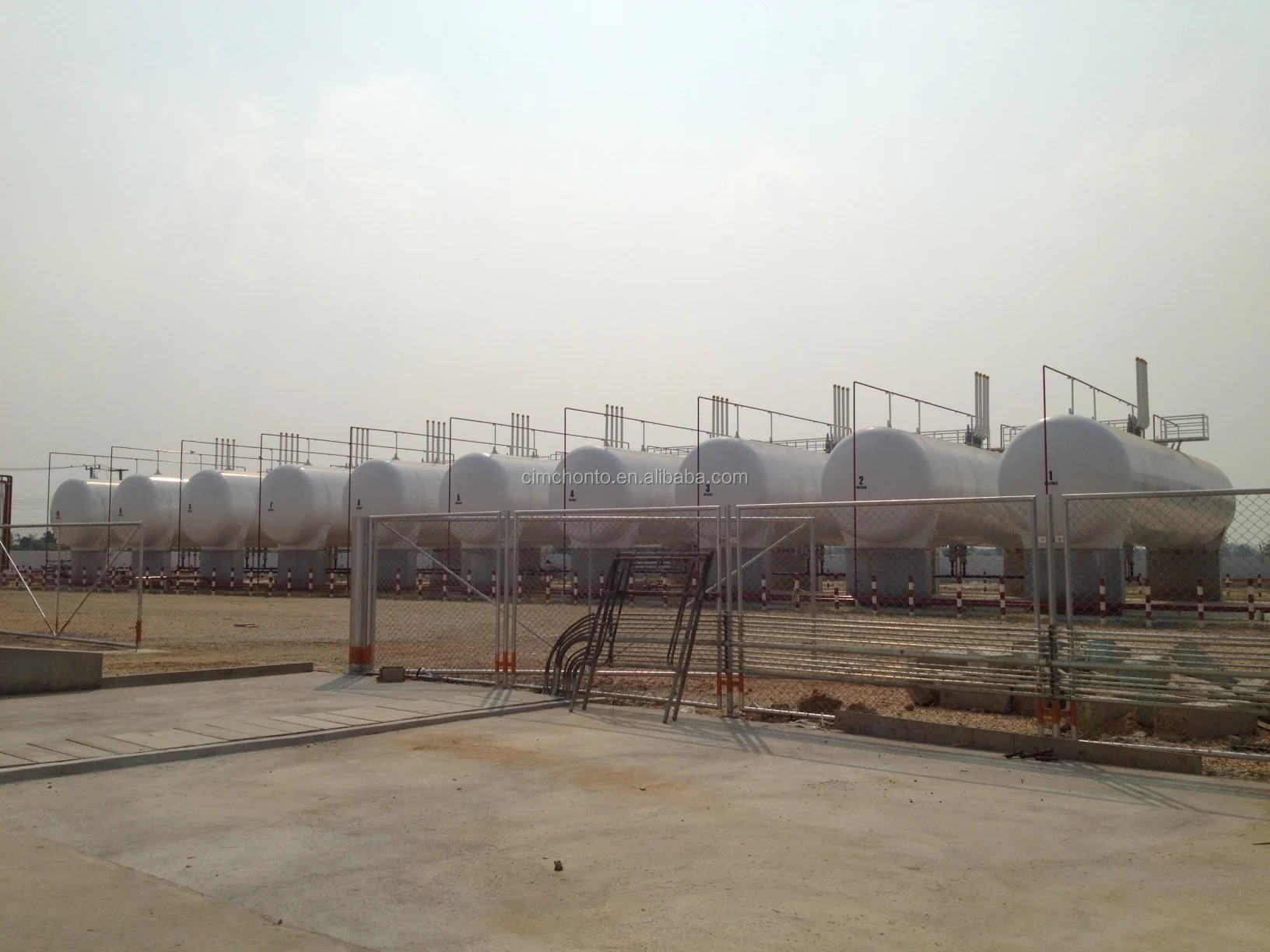

Propane LPG Storage Tank

HONGTU has the design and fabrication capability of household storage tanks and stationary storage tanks, including above-ground storage tanks, underground storage tanks, horizontal storage tanks, and vertical storage tanks etc., which is customized according to the customers' requirement.

Technical Specifications
Design Code
: ASME BPVC Ⅷ-1/Ⅷ-2,GB/T 150,JB/T 4732
Vessel Capacity: 0.5m3~1000m3
Vessel Material: SA-516, SA-612,Q370R etc.

SPECIFICATIONS for 40 m3 Propane Storage Tank DN2470mm
Storage tank Model
WG18-2470-40
Design capacity
40 m³
Payload
16140 kg
Net weight
8780 kg
Tank Outline dimension  ID * H * L
Φ2470×3240×8843 mm
Working pressure
≤1.61 MPa
Design pressure
1.61 MPa
Working temperature
-20~50 ℃
Allowable working pressure
1.77 MPa
Loading
LPG (propane) / explosive,inflammable
Note: H2S≤10mg/m³
Design Temperature
-20/50 ℃
Filling ratio
0.9
Ambient temperature
-20~50 ℃
Seismic intensity
less than 7 degree
Corrosion allowance
1.0 mm
Wind load & snow load
Not considered
Hydraulic test pressure
2.22 MPa
Vessel pressure
Shell design thickness
12.62(13) mm
Head design thickness
12.59(14) mm
Main material
Q345R (Hot-rolled, controlled rolling)
Saddle standard
JB/T 4712-2007
Design& manufacturing standard, regulation for supervision & Inspection
NB/T47042-2014 GB/T150-2011 TSG 21-2016 Safety Technical Supervision Code for fixed pressure vessels

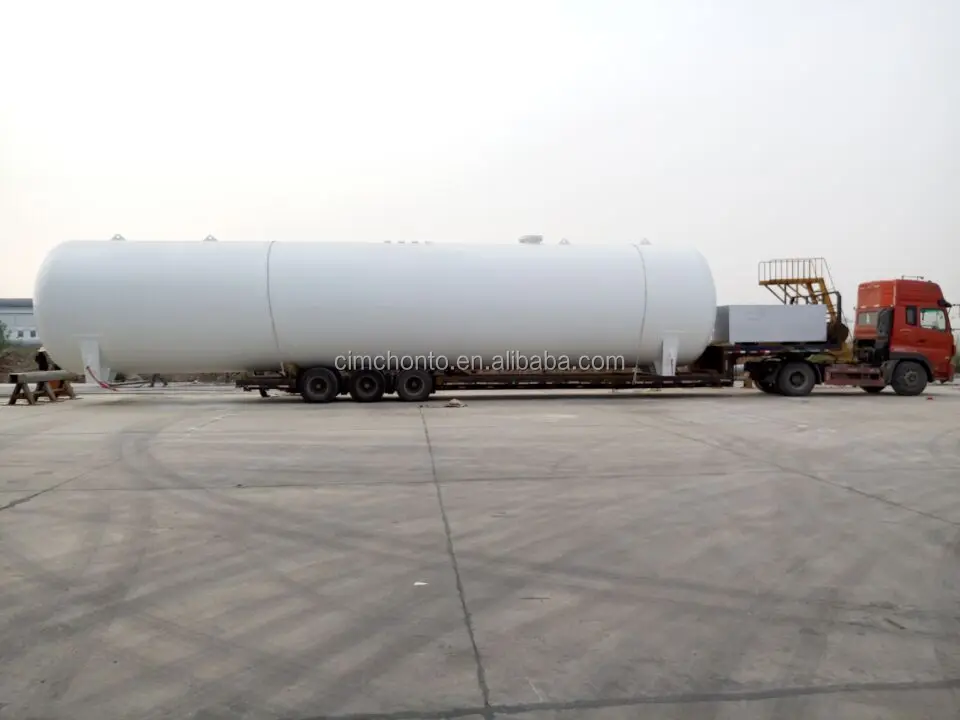

Packing & Delivery
