ASME 2500 tons Spherical Tanks 5000m3 lpg gas tank for zimbabwe

FOB Reference Price:Get Latest Price
$2,400,000.00 - $2,600,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
AQGF1712-YH0526
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 150 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hubei, China (Mainland)
Brand Name:
CIMC Enric Hongtu
Dimension(L*W*H):
21220mmx49mm
Capacity:
5003 m3
Weight:
636868 kg
After-sales Service Provided:
Field maintenance and repair service, Video technical support
Warranty:
1 Year
Product name:
5000m3 LPG spherical tank
Working pressure:
1.70 MPa
Designed pressure:
1.8 MPa
Max. allowable working pressure:
1.8 MPa
Working Temperature:
-35~40℃
Design Temperature:
-40/50℃
Spherical shell material:
SA-537M Cl.2
MDMT:
-20 ℃
Corossion allowance:
1.5mm
Design working life:
20 years
Supply Ability
Supply Ability:
50 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
international standard
Port
any port in China
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 150 To be negotiated
Product Description

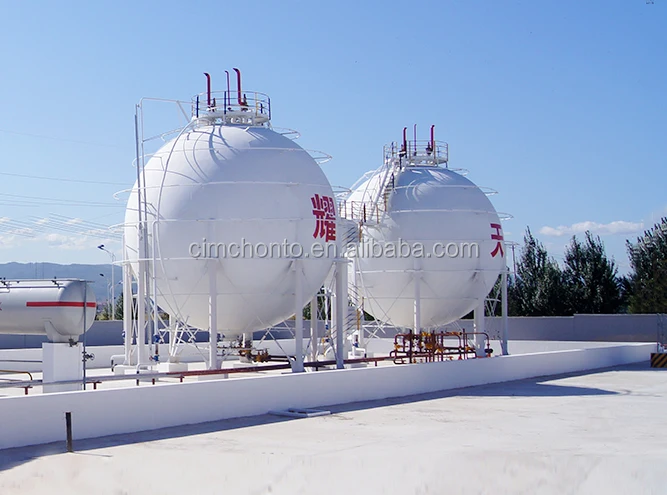

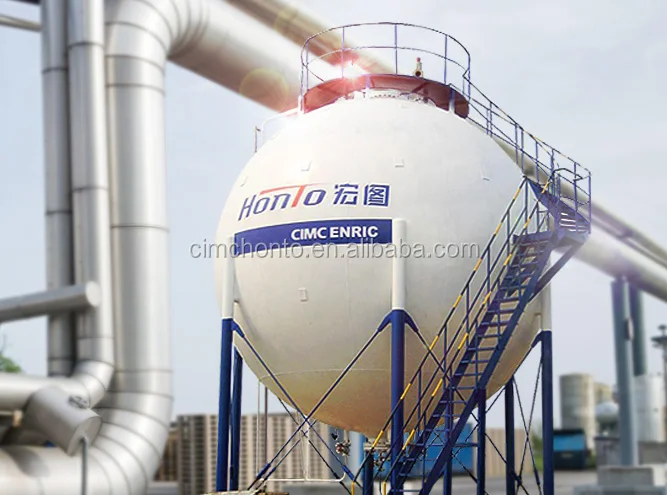

LPG Spherical Tank

HONGTU has the design and fabrication capability of large ASME codes spherical tanks and owns 5 sets of large hydraulic pressing machine. The maximum pressing capacity for spherical shell plate is thickness 80mm. Besides, HONGTU can also construct the spherical tanks made of special steel such as stainless steel, stainless steel clad carbon steel plate, 9Ni steel and etc. , and owns relevant project references.

Technical Specifications
Design Code: ASME BPVC Ⅷ-1/Ⅷ-2,GB/T 12337,JB/T 4732
Vessel Capacity: 50m3~10000m3 liquefied gas spherical tank, 200m3 ~20000m3 gas spherical tank
Material: SA-516,SA-537 CL1,SA-537 CL2,Q370R etc.

Technical Parameters of 5000m³ LPG Spherical Tank
Woking pressure
1.70 MPa
Design pressure
1.8 MPa
Max. allowable working pressure
1.8 MPa
Working temperature
-34~40 ℃
Design temperature
-40/50℃
Medium
LPG(H2S≤20ppm)
Medium Sp.
Flammable
Spherical shell material
SA-537M Cl.2
MDMT
-20℃
Corrosion allowance
1.5 mm
Design working life
20 years
Joint efficiency
1.0
Total capacity
5003.0 m3
Charging efficiency
0.9
Wind pressure
2000 Pa
Snow pressure
300 Pa
Seismic intensity
8 degree (nearby seismic) - SZ3, SZF0.3
Field Soil Category
II - (SC)
Hydraulic test pressure
2.58 MPa
Air tightness test pressure
1.8 MPa
Net weight
636868 kg
Full water weight
5660000 kg
Design/Fabrication/Inspection Standard
ASME Code. SEC. VIII DIV.2 2015 EDITION
Refering to "STEEL SPHERICAL TANKS" GB12337-2014
Certifications

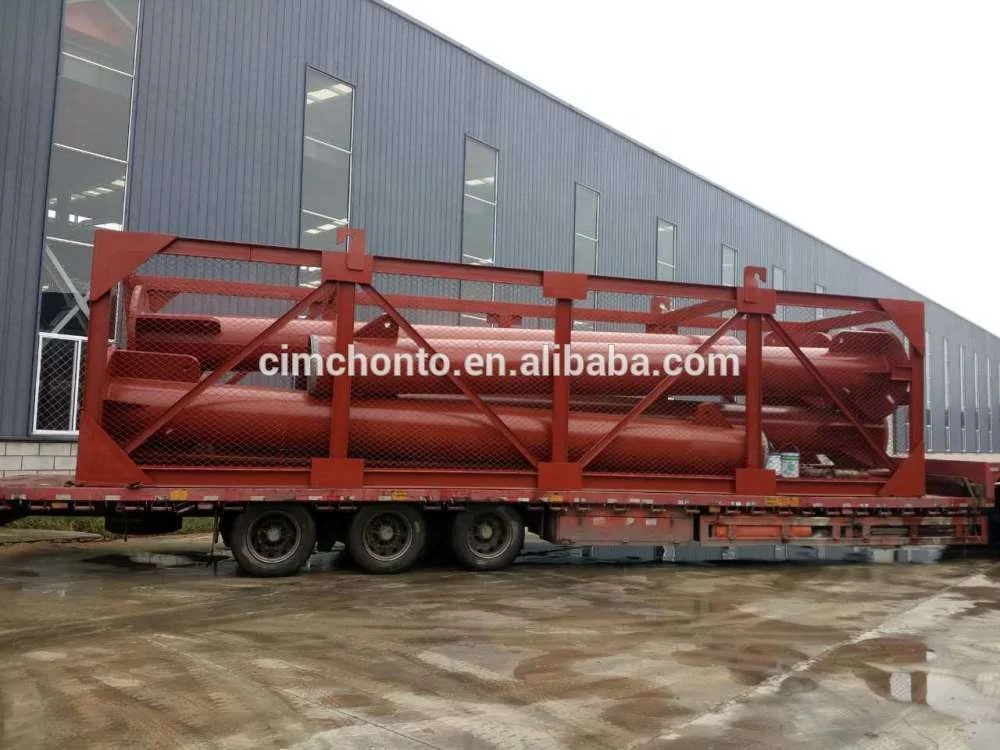

Packing & Delivery
