2026m3 985 ton propane LPG storage spherical tank

FOB Reference Price:Get Latest Price
$450,000.00 - $500,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
QGF1702
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hubei, China (Mainland)
Brand Name:
CIMC HONTO
Capacity:
2026m3, 2026m3
Weight:
271094kg
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service
Warranty:
3 years
Material:
Q370R
Medium:
LPG propane
Certification:
Chinese GB, BV
Design pressure:
1.77Mpa
Design temperature:
-19/50℃
Filling capacity:
985 MT
Supply Ability
Supply Ability:
50 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Tank shell plates and columns packed in frame.
Port
Shanghai, Wuhan, Jingzhou, or any port in China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Product Introduction

LPG Shherical Tank

CIMC HONGTU (brand: HONTO) has the capability to design and manufacture large LPG spherical tanks of either Chinese standard or ASME standard. It owns 5 sets of large hydraulic pressing machine, and can press spherical shell plate up to 80mm in thickness. HONGTU also designs and supplies spherical tanks made of special materials like stainless steel, carbon steel plus stainless clad steel plate, 9Ni steel, etc.

Technical Specifications

Design Code: ASME BPVC Ⅷ-1/Ⅷ-2,GB/T 12337,JB/T 4732
Vessel Capacity: 50m3~10000m3 liquefied gas spherical tank, 200m3 ~20000m3 gas spherical tank
Material: SA-516,SA-537 CL1,SA-537 CL2,Q370R, etc.

Product Details
Design/fabrication/inspection standard
Chinese GB standard
Working pressure
1.57MPa
Design pressure
1.77MPa
Max. allowable working pressure
1.77MPa
Working temperature
40°C
Design temperature
-19/50°C
Medium
LPG
Shell material
Q370R
Working life
15 years
Corrosion allowance
1mm
Total capacity
2026m3
Filling ratio
0.9
Wind pressure
1500Pa
Seismic intensity
8 degree
Hydrolic testing pressure
2.22MPa
Leakage testing pressure
1.77MPa
Net weight
271094kg
Packing & Delivery
Production

CIMC HONGTU has a 11,500m2 workshop especially built for spherical tank production.


With a 8m-span 2000ton pressing machine and all kinds of moulds in the workshop, we could undertake the manufacturing of 200m3 to 10000m3 spherical tanks of different medium.


We provide spherical tank plant EPC(Engineering Procurement Construction) service.

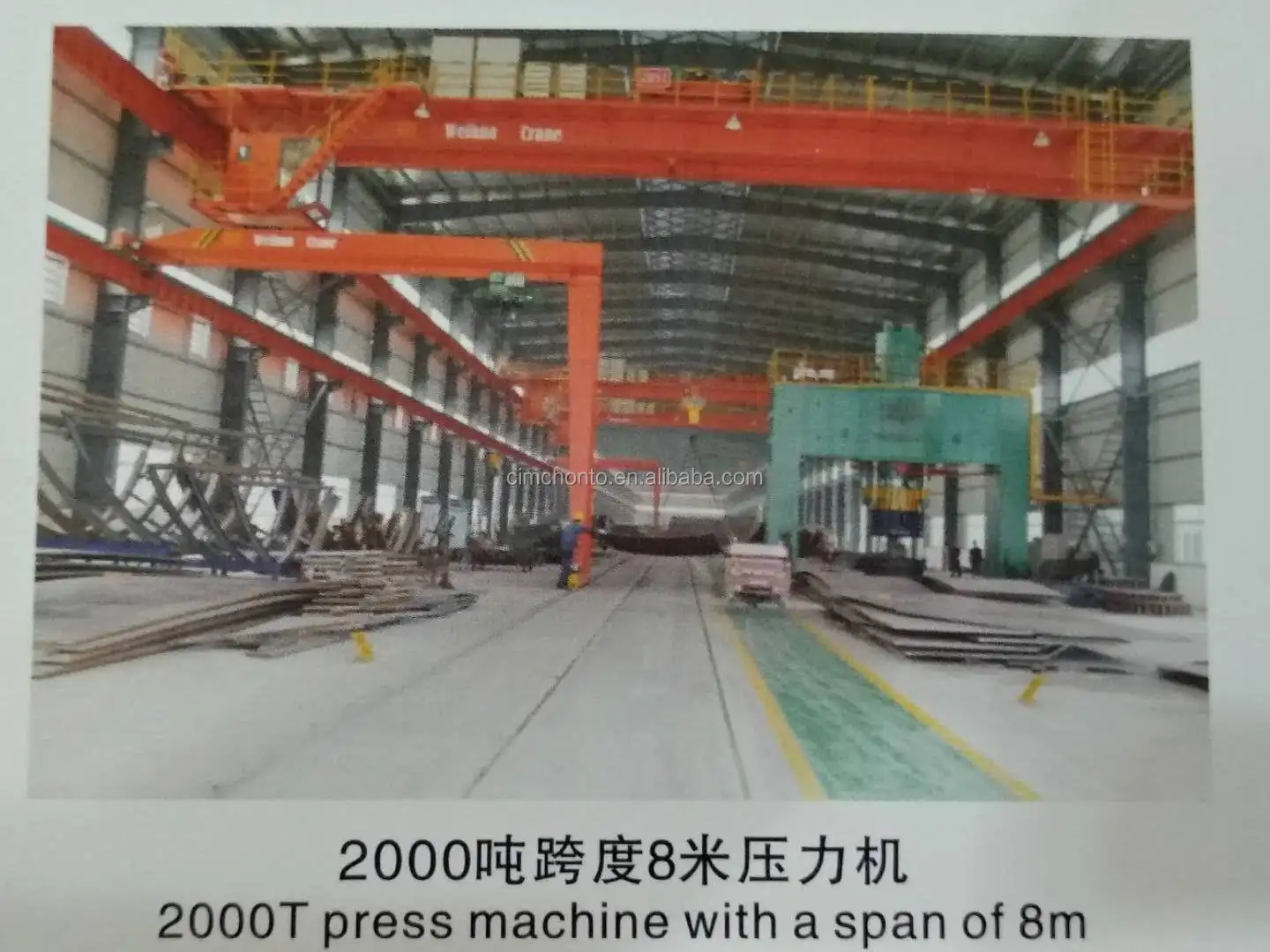

2000ton pressing machine with a span of 8m

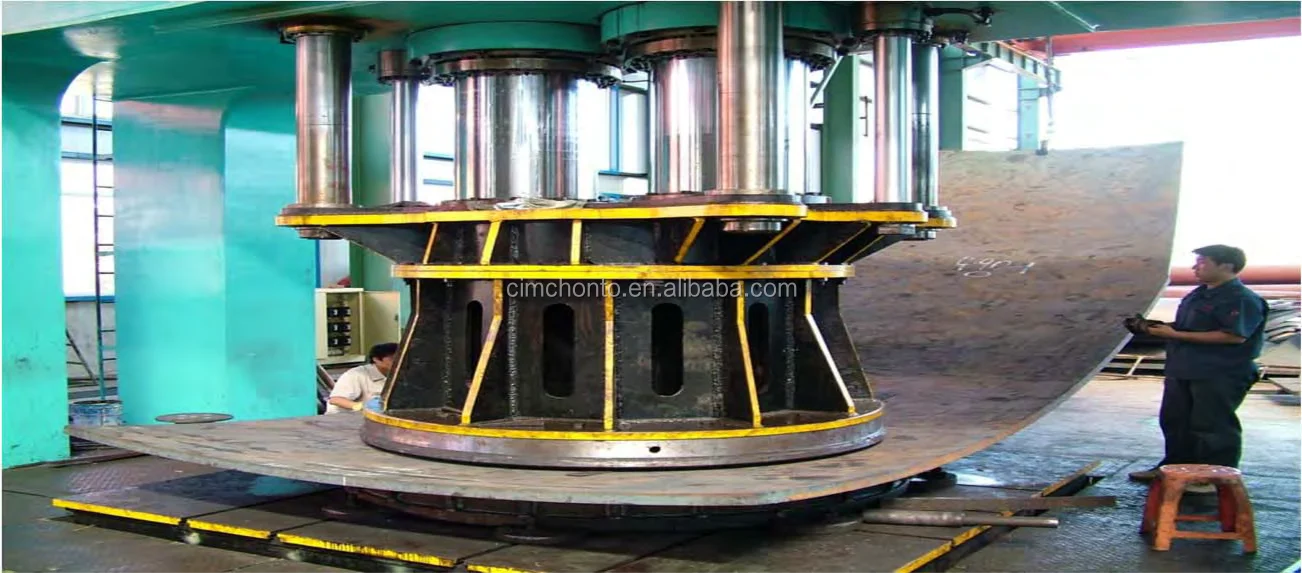

Shell plate pressing with hygrolic pressing machine

Manhol welding

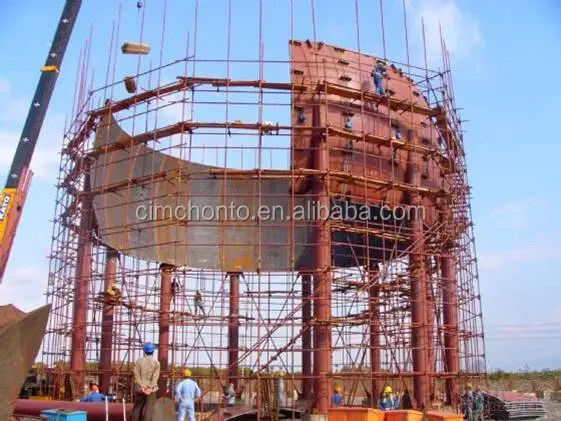

Brace welding

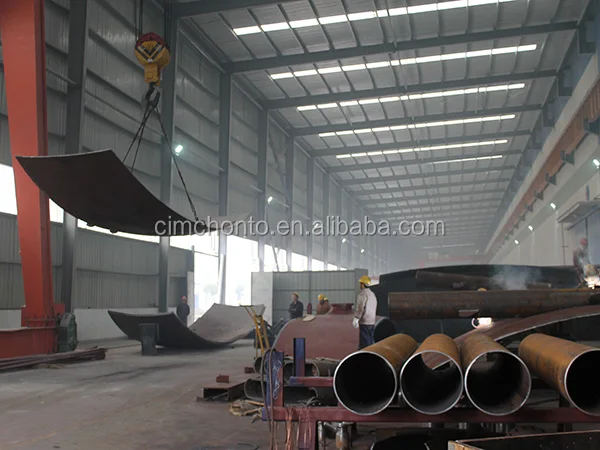

Shell plates and columns

Certificates

ASME U Certificate

ASME U2 Certificate

Member of World LPG Association

National Board of Boiler & Pressure Vessel Inspection

Company Information

CIMC ENRIC • Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called Hongtu, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since her establishment in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked 68th in Chinese Top 500 businesses), is engaged in R&D of normal temperature storage & transportation equipment and cryogenic storage & transportation equipment, EPC contracting, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2.

The Company always stands in the forefront leading the industrial development. "HONTO" Brand LPG tanker's production and sales has ranked No.1 in China for the past three decades with a domestic market share over 60% all along. Hongtu has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also the only LPG full-industrial chain equipment manufacturer and solution provider in China.

"HONTO" brand LPG storage and transportation equipment has been distributed to more than 32 countries in America, Middle East, South America, Southeast Asia, Northeast Asia and Africa.
