20ft container for sale 28.5ton ASME iso lpg gas fuel tank container

FOB Reference Price:Get Latest Price
$20,000.00 - $24,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
AS20LPG
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Capacity:
24700L
Place of Origin:
Hubei, China
Brand Name:
HONTO
Dimension(L*W*H):
6058*2438*2591mm
Weight:
6500kg
Certification:
ASME, DOT, ADR, CSC, CCC, ISO
Warranty:
12 Months
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service
Material:
Carbon Steel SA-612M
Medium:
LPG
U2 Stamp:
Yes
Payload:
28.5ton
Size:
20ft Standard Container
Design pressure:
1.8MPa
Design temperature:
-40~55℃
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude, with wax or with cover as per customer's requirement
Port
Shanghai, Wuhan, Jingzhou or any port of China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

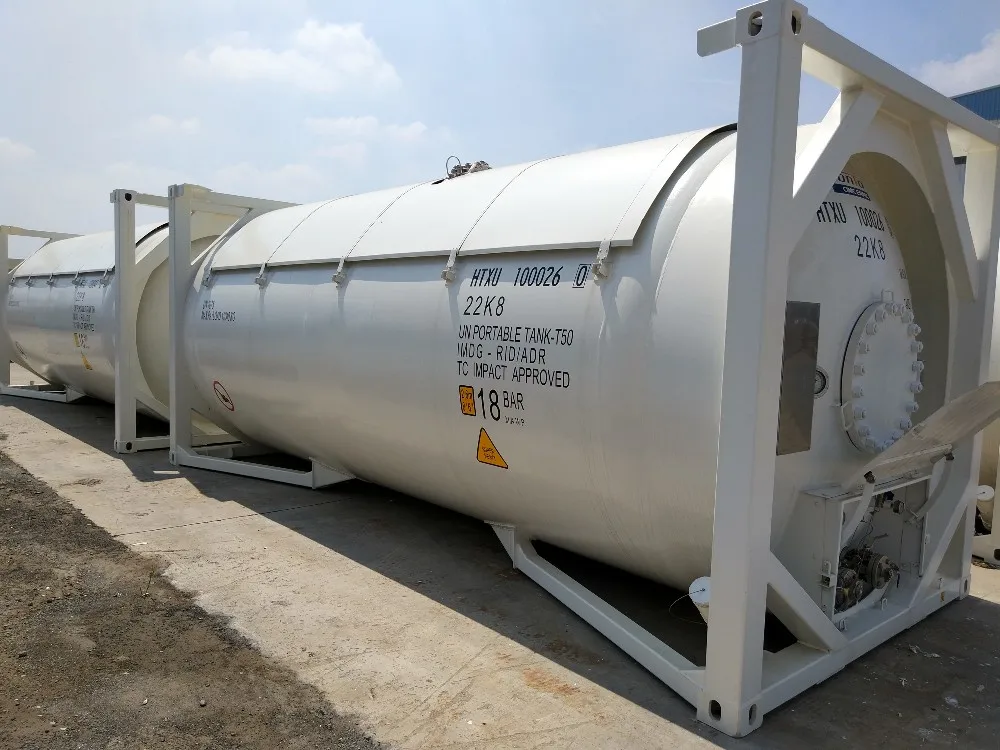

LPG ISO Tank Container

CIMC HONGTU has mature capability to design and manufacture tank containers. The tank containers are equipped with FORTVALE loading & unloading accessories and safety valves; side-mounted floating level meter on the rear head and aluminum sunshield on the top. With all necessary certificates, HONGTU tank containers meet international road, marine and railway transportation requirements.

Technical specification

Design code: ASME BPVC VIII-1/VIII/2, RID/ADR, IMDG T50, TC, UIC, CSC, TIR, ISO1496/3
Vessel capacity: 24.7m3(200feet), 51.7m3(40feet)
Material: SA-516, SA-612
Certificates: BV, TUV, CCS

ASME Standard LPG ISO Tank Container 20ft
Product Name
ASME Standard LPG ISO Tank Container 20ft
Model
HT20FD-24.7
Design Code
ASME Code
Design Pressure
1.8MPa
Design Temperature
-40~55℃
Shell Material
SA-612M
Head Material
SA-612M
Overall Dimension(L/W/H)
6058*2438*2591
Nominal Volume
24700L(± 0.1%)
Tare Mass
6500KG(±3%)
Max Gross Mass
35000KG
Internal MAWP
1.8MPa
External MAWP
0.1MPa
Working Temperature
-40~+50℃
Hydro Test Pressure
2.58MPa
Leakage Test Pressure
1.64MPa
Medium
LPG
Medium Density
According to IMDG 4.2.2.7
Corrosion Allowance
0mm
Joint Efficiency
1.0
Authorized Inspection Agency
BV/TUV
U2 Stamp
Yes
Certificates

ASME U Certificate

ASME U2 Certificate

Member of World LPG Association

National Board of Boiler & Pressure Vessel Inspection

Packing & Delivery

Packaging: Nude, with wax-coated or as per customer's requirements
Delivery: Ship in 30 days by container ship or bulk cargo ship.

Company Information

CIMC ENRIC • Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called Hongtu, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since her establishment in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked 68th in Chinese Top 500 businesses), is engaged in R&D of normal temperature storage & transportation equipment and cryogenic storage & transportation equipment, EPC contracting, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2.

The Company always stands in the forefront leading the industrial development. "HONTO" Brand LPG tanker's production and sales has ranked No.1 in China for the past three decades with a domestic market share over 60% all along. Hongtu has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also the only LPG full-industrial chain equipment manufacturer and solution provider in China.

"HONTO" brand LPG storage and transportation equipment has been distributed to more than 32 countries in America, Middle East, South America, Southeast Asia, Northeast Asia and Africa.

Our Products

Our main products:

LPG Semi-trailer
LPG Bobtail/Rigid Tanker
LPG ISO Tank Container
LPG Spherical Tank
LPG Horizontal/Mounded/Domestic Storage Tank
LPG Plant/Filling Plant/Autogas Station
LPG/Autogas Filling Skid

Our Workshop

Our Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2 .
