20' 20m3 24.2 tons Liquid Chlorine iso tank container 20ft

FOB Reference Price:Get Latest Price
$42,000.00 - $44,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HT20FD - 20A - AGX1708 -1
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Capacity:
20000 L
Place of Origin:
Hubei, China
Brand Name:
CIMC Enric Hongtu
Dimension(L*W*H):
6058x2438x2591 mm
Weight:
8750 kg
Certification:
ISO BV/TUV ASME U2
Warranty:
1 Year
Product name:
20' Tank Container for Liquid Chlorine
Mode of transportation:
Road, waterway, railway
Max. gross mass:
36000 kg
Max. payload:
24200 kg
Design temperature:
60 ℃
Specified design pressure:
1.7 MPa
Hydro. Test pressure:
2.72 MPa
Joint efficiency:
1.0
Corrosion allowance:
4 mm
Materials:
SA-516M Gr.485 Normalized
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
2000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Naked package or customized wih protective covers
Port
Shanghai, Wuhan, Jingzhou or else
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Introduction

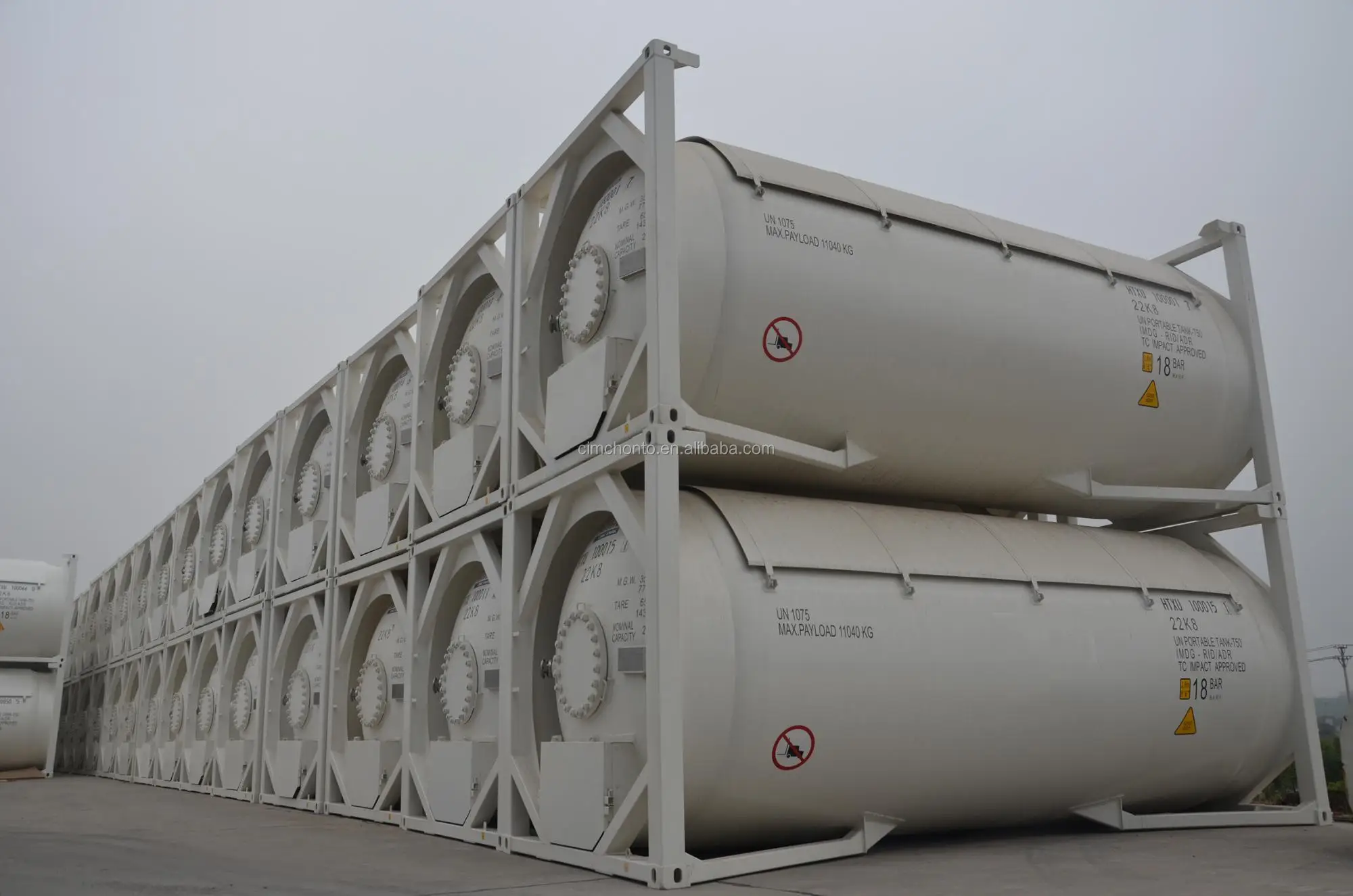

Tank Container

The company has mature capability to design and manufacture tank container. The tank container is equipped with FORTVALE loading & unloading accessories and safety valves; side-mounted floating level meter on the rear head; and aluminum sunshade on the top. With all necessary certificates, Hongtu's tank container meets the requirements of international road, waterway railway and combined transport

Technical specifications
Design code: ASME BPVC Ⅷ-1/Ⅷ-2,RID/ADR,IMDG T50,TC,UIC,CSC,TIR,ISO1496/3
Capacity: 24.7m3(20feet), 51.7m3(40feet)
Material: SA-516,SA-612
Design certificates: BV, LR, CCS

Product Parameters
20' Tank Container for Liquid Chlorine

Mode of Transportation
Road, Railway, Waterway
Design Temperature
60 ℃
Specified Design Pressure
1.7 MPa
Tare Mass
8750 kg
Max. Gross Mass
36000 kg
Max. Payload
24200 kg (UN1017)
Frame(L/W/H)
Length:6058mm   Width:2438mm   Height:2591mm
Nominal Volume
20000 L
Stacking
Nine Layers
Container Type
1 CC
MAWP (ASME)
1.9 MAa
MAWP (IMDG)
1.5 MPa
MDMT (℃)
-40/1.9MPa
Hydro. Test Pressure
2.72 MPa
Joint Efficiency (Shell/Head)
1.0
Corrosion Allowance
4 mm
Material
SA-516M Gr485 Normalized
Tank Instruction
T50
Authorized Inspection Agency
BV/TUV
PWHT
Treated as a whole in furnace
Mediums
Liquid Chlorine
