16m3 Horizontal LPG Propane Storage Tank Bullet Tank

FOB Reference Price:Get Latest Price
  • >=1 Sets
    $9,000.00
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Capacity:
16m3
Place of Origin:
Hubei, China (Mainland)
Brand Name:
HONTO
Model Number:
WG18-1600-16
Dimension(L*W*H):
8300*1620*2370mm
Weight:
4590KG
Material:
Carbon Steel Q345R (Hot-rolled, controlled rolling)
Medium:
Liquefied Petroleum Gas
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Port
SHANGHAI, WUHAN
Lead Time :
Ship in 60 days after payment
Product Description

We have been engaged in R&D and manufacturing of pressure vessels and liquefied gas storage and transportation equipment since 1980s.


Our main products include: various storage and transportation equipment for LPG, LNG, Cryogenic liquid, and other chemical liquid.

Technical Parameters of 16m3  LPG Storage Tank
Product Name
16m3 LPG Storage Tank
Model
WG18-1600-16
Design Capacity
16m3
Payload
6460KG
Net weight
4590KG
Tank Outline Dimension( ID * H * L)
1600*2370*8300mm


Tank Dimension

LA
8300mm
LB
6530mm
LC
450mm
Working Pressure
≤1.61MPa
Design pressure
1.61 MPa
Allowable Working pressure
1.77 MPa
Working Temperature
-20~50 ℃
Design Temperature
-20/50 ℃
Medium
LPG
Filling Ratio
0.9
Ambient Temperature
-20~50 ℃
Life Expectancy
20 years
Seismic Intensity
less than 7 degree
Corrosion Allowance
1.0mm
Wind Load & Snow Load
Not Considered
Hydro Test Pressure
2.22MPa
Shell Design Thickness
8.53(10)mm
Head Design Thickness
8.51(10)mm
Material
Q345R (Hot-rolled, controlled rolling)
Saddle Standard
JB/T 4712-2007
Design Code
Chinese GB Standard

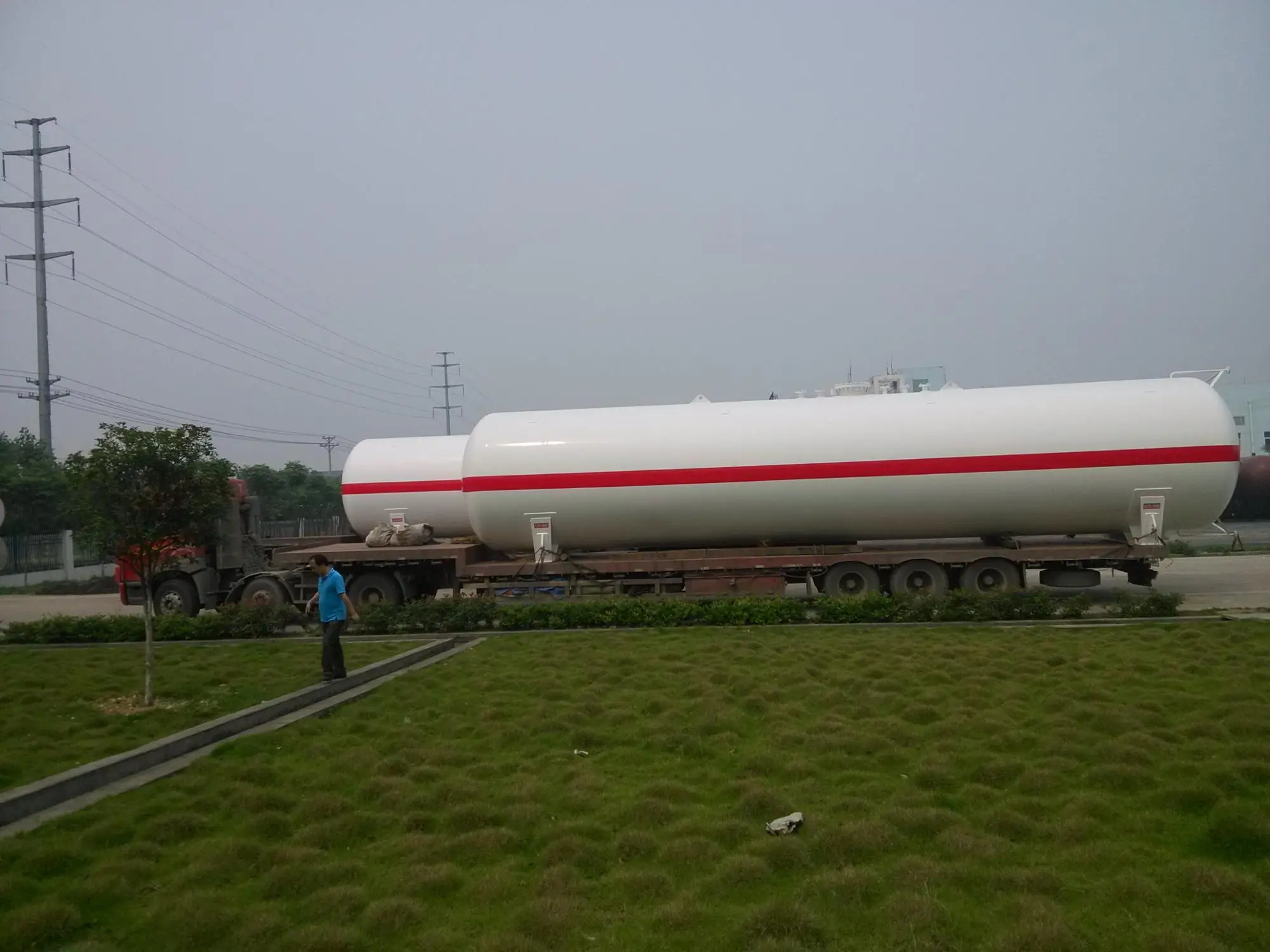

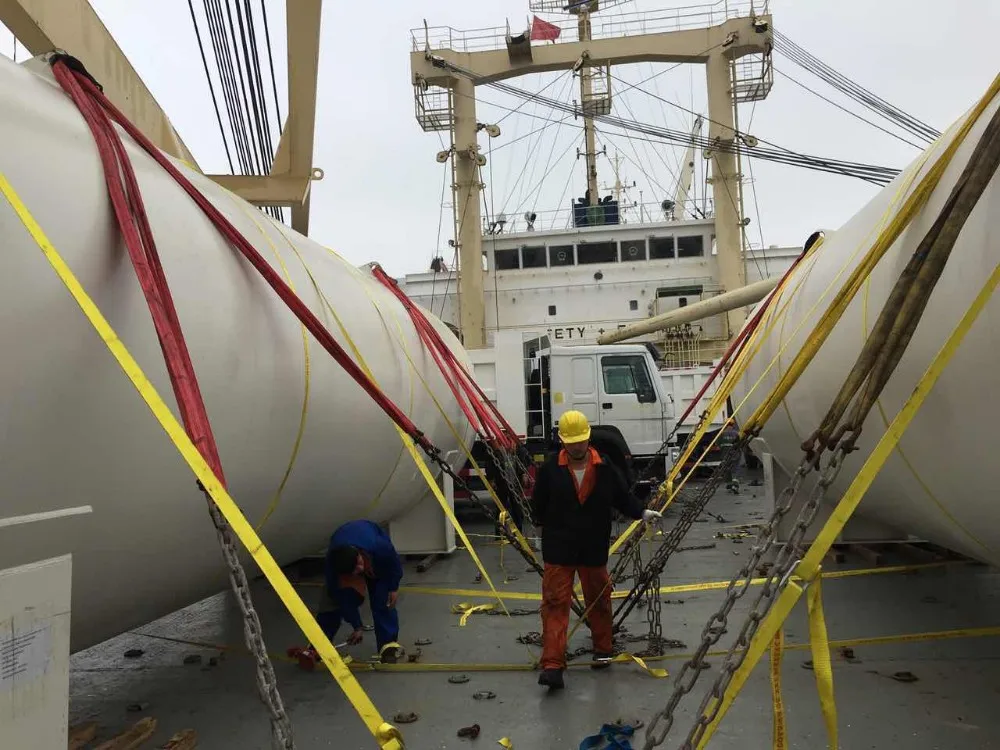

Packing & Delivery

Packaging: Nude or according to customer's requirements
Delivery: Ship in 60 days after payment

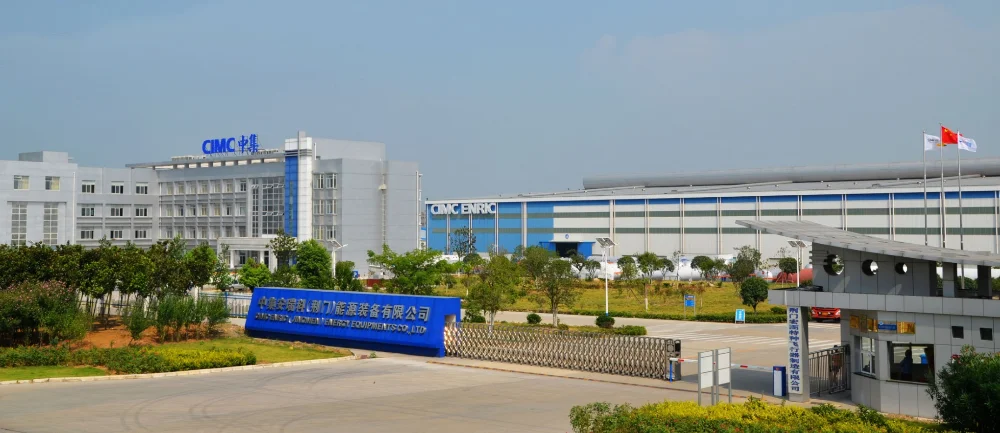

Company Information

CIMC ENRIC • Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called Hongtu, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since her establishment in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked 68th in Chinese Top 500 businesses), is engaged in R&D of normal temperature storage & transportation equipment and cryogenic storage & transportation equipment, EPC contracting, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2.

The Company always stands in the forefront leading the industrial development. "HONTO" Brand LPG tanker's production and sales has ranked No.1 in China for the past three decades with a domestic market share over 60% all along. Hongtu has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also the only LPG full-industrial chain equipment manufacturer and solution provider in China.

"HONTO" brand LPG storage and transportation equipment has been distributed to more than 32 countries in America, Middle East, South America, Southeast Asia, Northeast Asia and Africa.

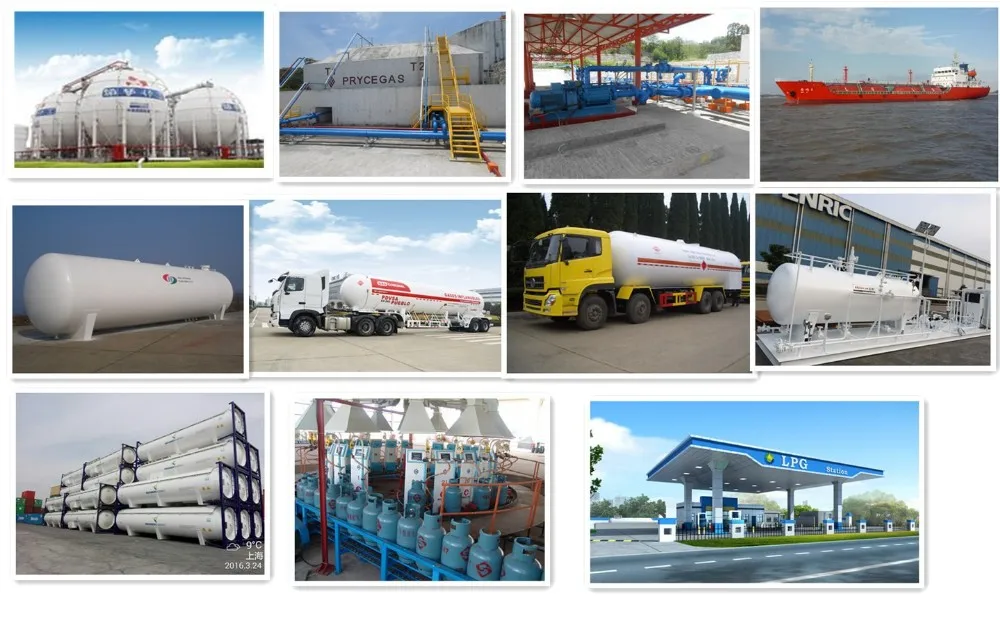

Our Products

Our main products:

LPG Semi-trailer
LPG Bobtail/Rigid Tanker
LPG ISO Tank Container
LPG Spherical Tank

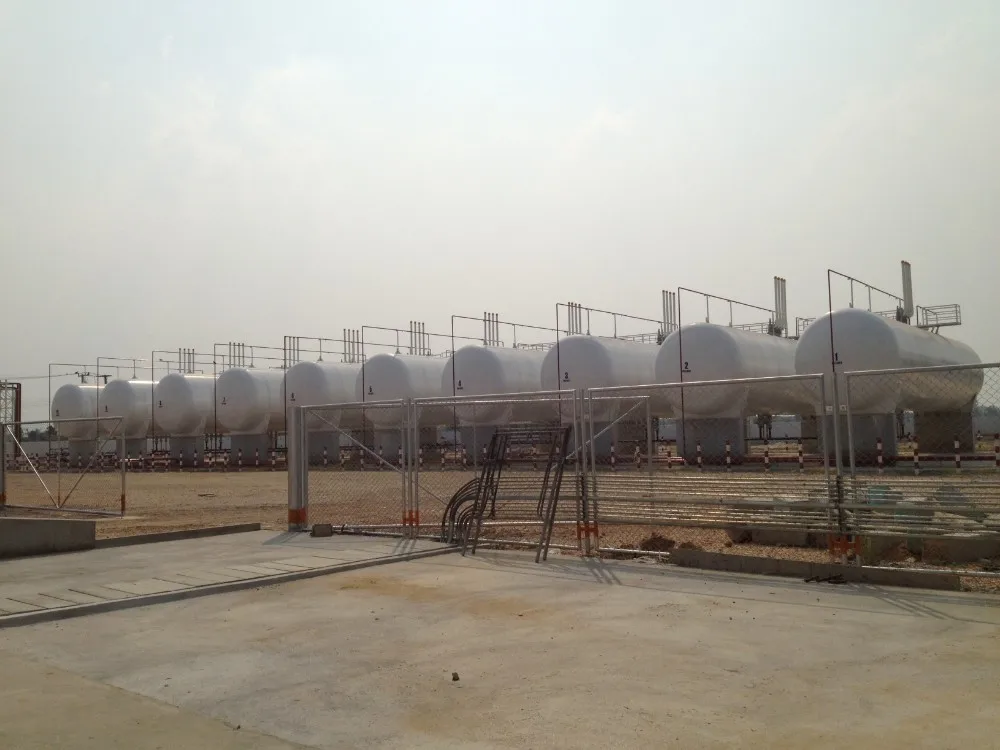

LPG Horizontal/Mounded/Domestic Storage Tank
LPG Plant/Filling Plant/Autogas Station
LPG/Autogas Filling Skid

Our Workshop

Our Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2 .
