CIMC factory supply 40ton 100m3 lpg gas storage tank

FOB Reference Price:Get Latest Price
$20,000.00 - $23,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
M100-3100-40
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Capacity:
100m3
Place of Origin:
Hubei, China (Mainland)
Brand Name:
HONTO
Dimension(L*W*H):
13846*3132*3800mm
Weight:
20000kg
Certification:
ISO, GB
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Material:
Carbon Steel Q345R
Medium:
LPG
Payload:
40ton
Design pressure:
1.61MPa
Design temperature:
-20/50 ℃
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude, with wax or with cover as per customer's requirement
Port
Any port of China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

CIMC HONGTU(brand HONTO) has the design and fabrication capability of household storage tanks and stationary storage tanks, including above-ground storage tanks, underground storage tanks, horizental storage tanks, and vertical storage tanks, etc., which is customized according to the customers' requirement.

Technical specification

Design Code: ASME BPVC VIII-1/VIII-2, GB/T 150, JB4732
Vessel Capacity: 0.5m3~1000m3
Vessel Material: SA-516, SA-612, Q370R etc.

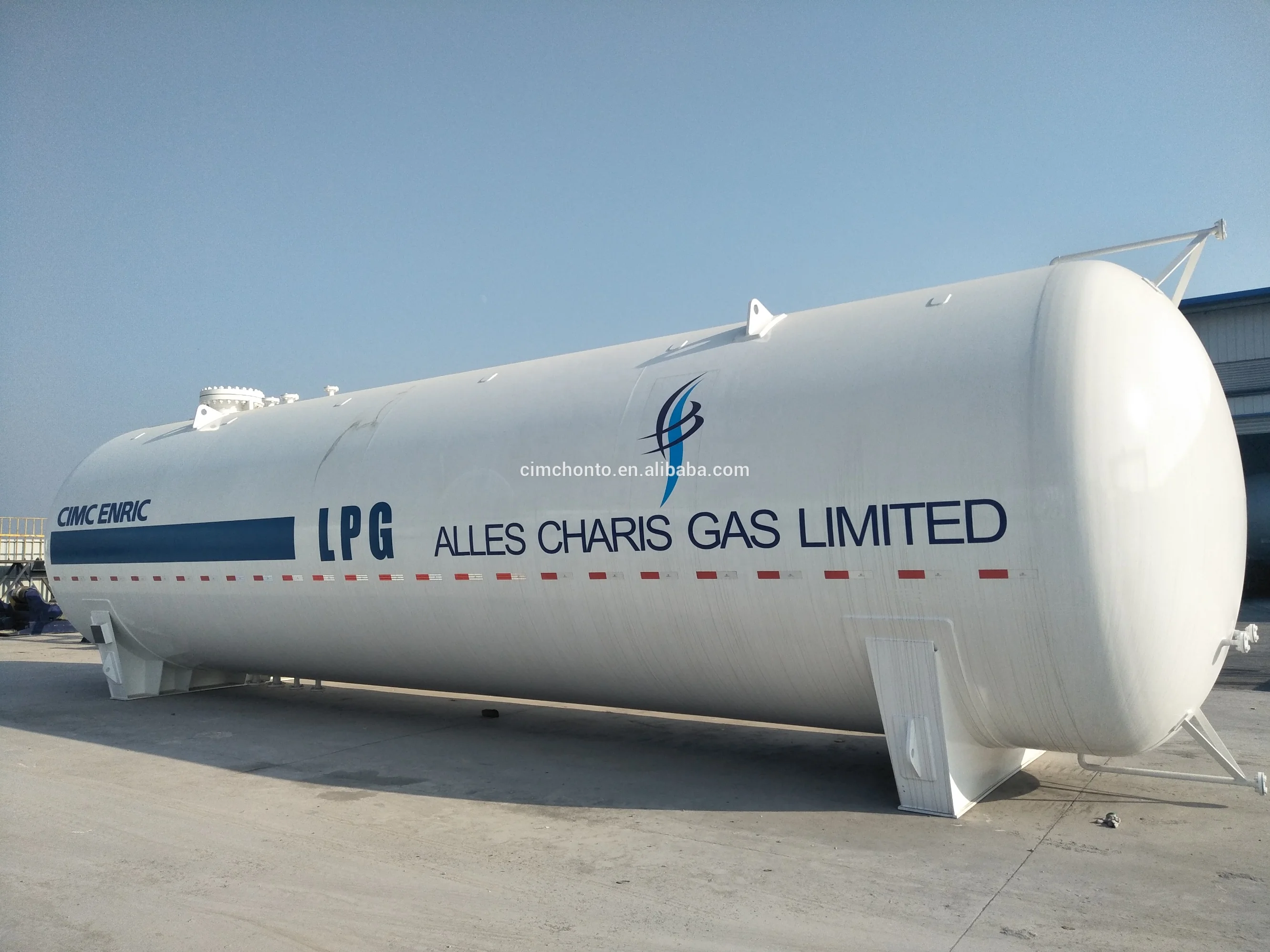

Technical Parameters of 100m3  LPG Storage Tank
Product Name
100m3 LPG Storage Tank
Model
WG18-3100-100
Design Capacity
100m3
Payload
40350KG
Net weight
20000KG
Tank Outline Dimension( ID * H * L)
3100*3800*13846mm


Tank Dimension

LA
13846mm
LB
10640mm
LC
770mm
Working Pressure
≤1.61MPa
Design pressure
1.61 MPa
Allowable Working pressure
1.77 MPa
Working Temperature
-20~50 ℃
Design Temperature
-20/50 ℃
Medium
LPG
Filling Ratio
0.9
Ambient Temperature
-20~50 ℃
Life Expectancy
20 years
Seismic Intensity
less than 7 degree
Corrosion Allowance
1.0mm
Wind Load & Snow Load
Not Considered
Hydro Test Pressure
2.22MPa
Shell Design Thickness
15.58(16)mm
Head Design Thickness
15.87(18)mm
Material
Q345R
Saddle Standard
JB/T 4712-2007
Design Code
Chinese GB Standard
Certificates

ASME U Certificate

ASME U2 Certificate

Member of World LPG Association

National Board of Boiler & Pressure Vessel Inspection

Packing & Delivery

Packaging: Nude, with wax or with cover as per customer's requirement
Delivery: Ship in 30 days after payment

Company Information

CIMC ENRIC • Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called Hongtu, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since her establishment in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked 68th in Chinese Top 500 businesses), is engaged in R&D of normal temperature storage & transportation equipment and cryogenic storage & transportation equipment, EPC contracting, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2.

The Company always stands in the forefront leading the industrial development. "HONTO" Brand LPG tanker's production and sales has ranked No.1 in China for the past three decades with a domestic market share over 60% all along. Hongtu has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also the only LPG full-industrial chain equipment manufacturer and solution provider in China.

"HONTO" brand LPG storage and transportation equipment has been distributed to more than 32 countries in America, Middle East, South America, Southeast Asia, Northeast Asia and Africa.

Our Products

Our main products:

LPG Semi-trailer
LPG Bobtail/Rigid Tanker
LPG ISO Tank Container
LPG Spherical Tank
LPG Horizontal/Mounded/Domestic Storage Tank
LPG Plant/Filling Plant/Autogas Station
LPG/Autogas Filling Skid

Our Workshop

Our Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2 .
