CIMC 58.1m3 58100 liters LPG Truck 3 Axles 27ton LPG Tank Trailer

FOB Reference Price:Get Latest Price
$23,000.00 - $32,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
BG581-GB27
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Steel, Q370R
Certification:
CCC, ISO, BV
Size:
13150*2500*4100mm
Max Payload:
26915kg
Place of Origin:
Hubei, China (Mainland)
Brand Name:
HONTO
Capacity:
58.100m3
Payload:
26915kg
Axle:
3
Net weight:
15000kg
Total weight:
41915kg
Design code:
Chinese GB standard
Supply Ability
Supply Ability:
150 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude, with wax or with cover as per customer's requirement
Port
Shanghai, Wuhan or any port of China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

LPG Semi Trailer

CIMC HONGTU(brand HONTO) has 30-plus years of experience in design and fabrication of LPG semi-trailers. With European and American certificates of pressure vessels, HONGTU can supply various semi-trailers as per Chinese standard, international standards, and tailered design register, etc. HONGTU has cooperated with the international reputed suppliers of valves, instruments and other accessories, such as REGO, FISHER, ROCHESTER, WIKA, CORKEN, BLACKMER, etc. in the long term so as to supply the optional brands of valves, pumps and flow meters etc. as per clients' requirement.

Technical specification

Design Code: ASME BPVC VIII-1/VIII-2, EN 12493, GB/T 19905, JB 4732
Vessel Capacity: 30m3~70m3
Vessel Material: SA-516, SA-517, SA-612, P460, Q420R, Q370R etc.
Tank Type: Cylinder tank, Eccentric cone tank, etc.


Vehicle Type:
- ASME code tank + international brands of valves and accessories
- Chinese standard tank + Chinese brands of valves and accessories
- Chinese standard tank + international brands of valves and accessories

Design Code
Chinese GB Standard
Total Weight
41915kg
Payload
26915kg
Net Weight
15000kg
Overall Dimension(L*W*H)
13150*2500*4100mm
Medium
LPG
Capacity
58.1m3
InsideDiameter
2470mm
Total Length of Tank
12.966m
Design Pressure
1.72/-0.1MPa
Tank Weight
10600kg
MAWP
1.72MPa
Design Temperature
-20/50℃
Medium Density
0.545t/m3
Joint Efficiency
1.0
Corrosion Allowance
1mm
Shell Material
Q370R Normalized
Head Material
Q370R Normalized
Shell Thickness
12mm
Head Thickness
8mm
Leakage Test Pressure
1.72MPa
Hydrostatic Test Pressure
2.24MPa
Detailed Image
Packing & Delivery

Packaging: Nude, with wax or with cover as per customer's requirement
Delivery: by bulk cargo ship, ro-ro ship, or land transportation

Production Process

Our Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2 .

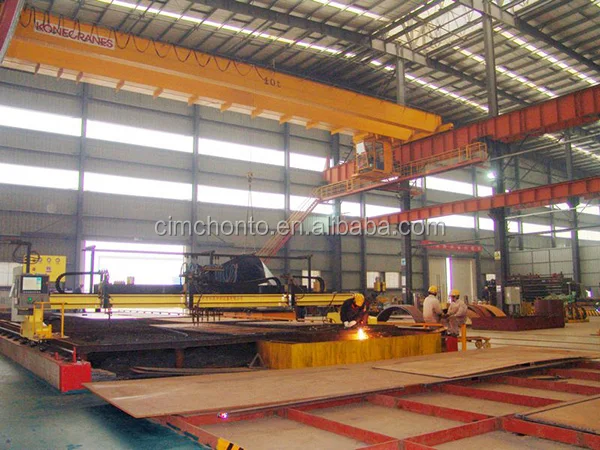

Steel plate cutting

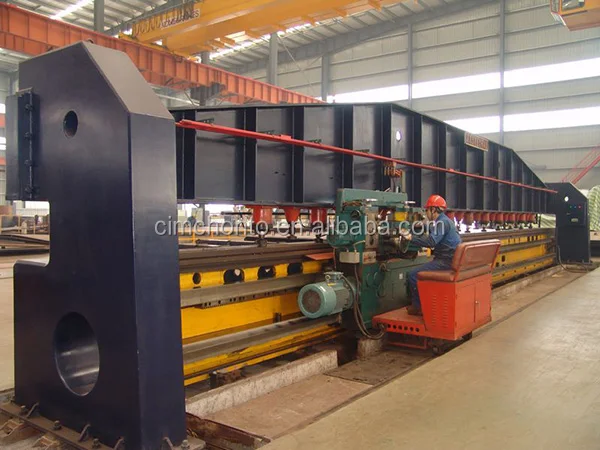

Edge planning

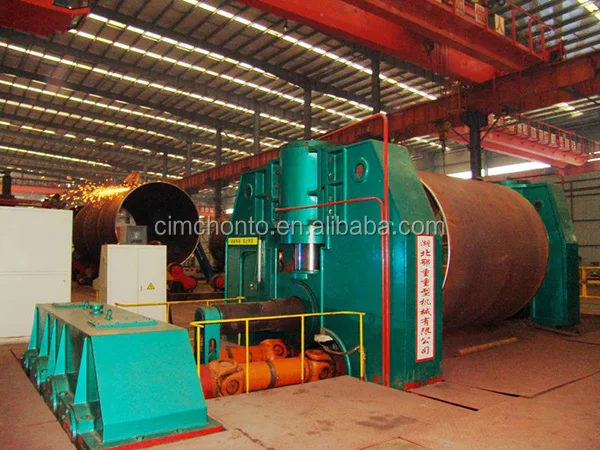

Rolling

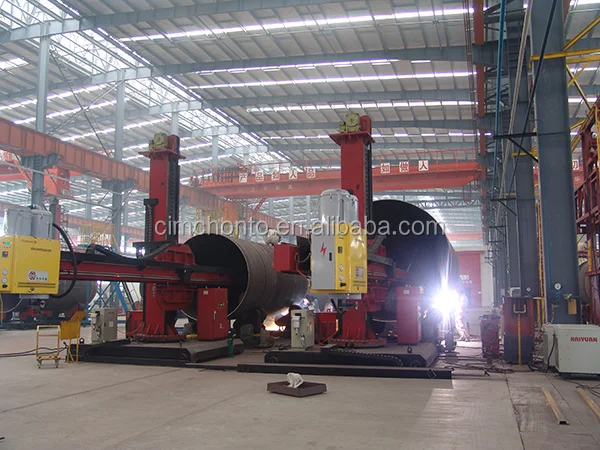

Welding

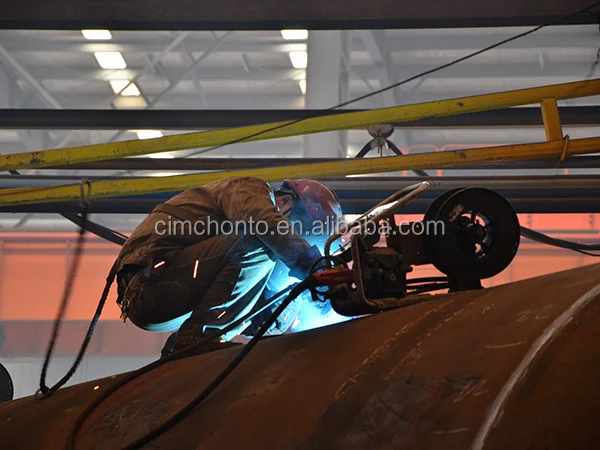

Manual welding

Manual welding

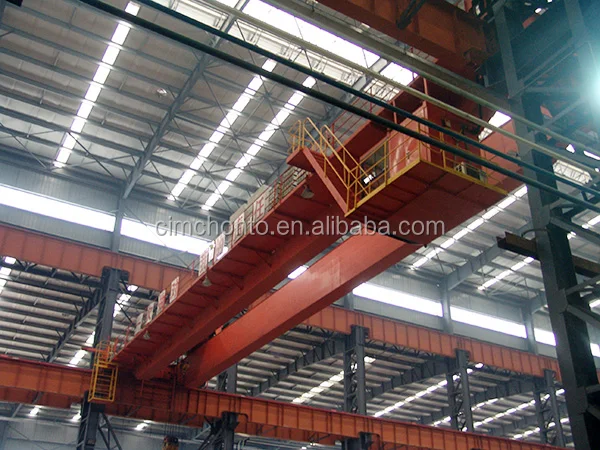

100T Crane

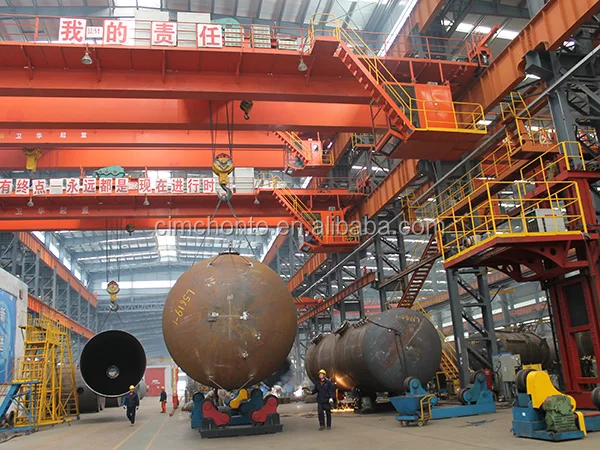

Moving by crane

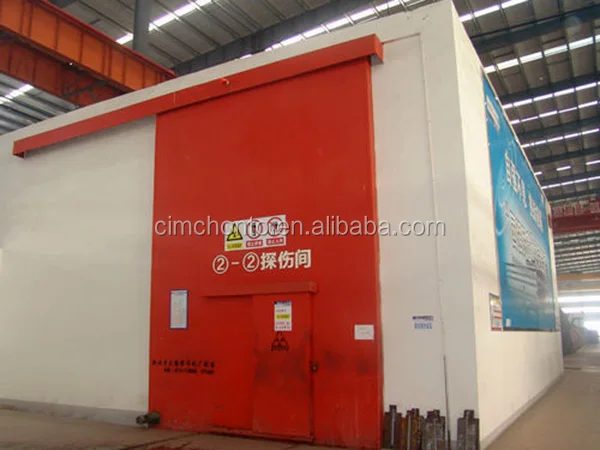

NDT testing

Heat treatment

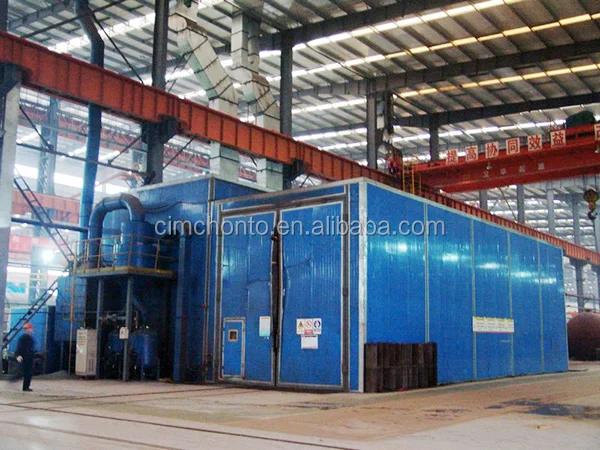

Sand blasting

Paiting

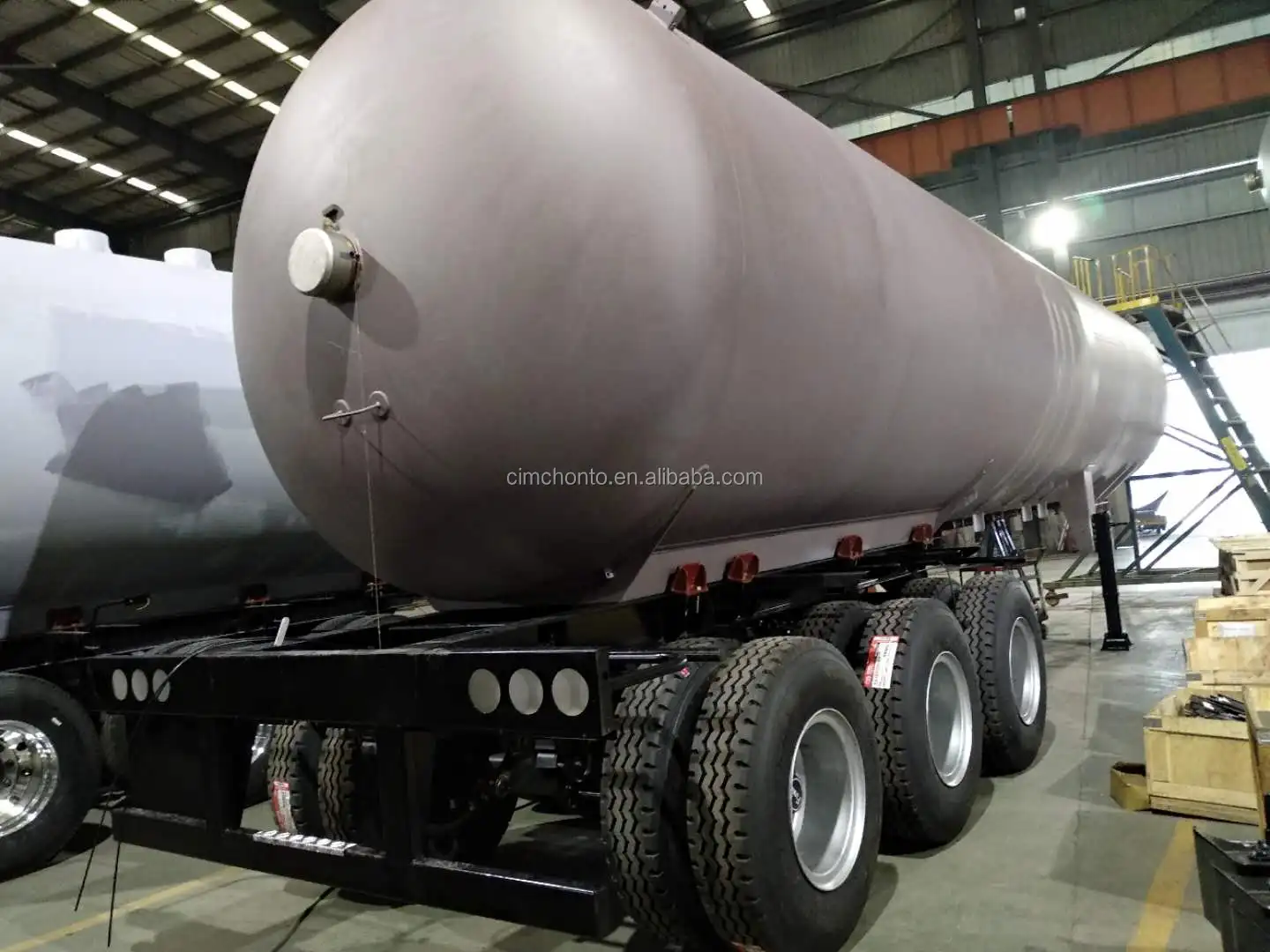

Assembly after hydro testing

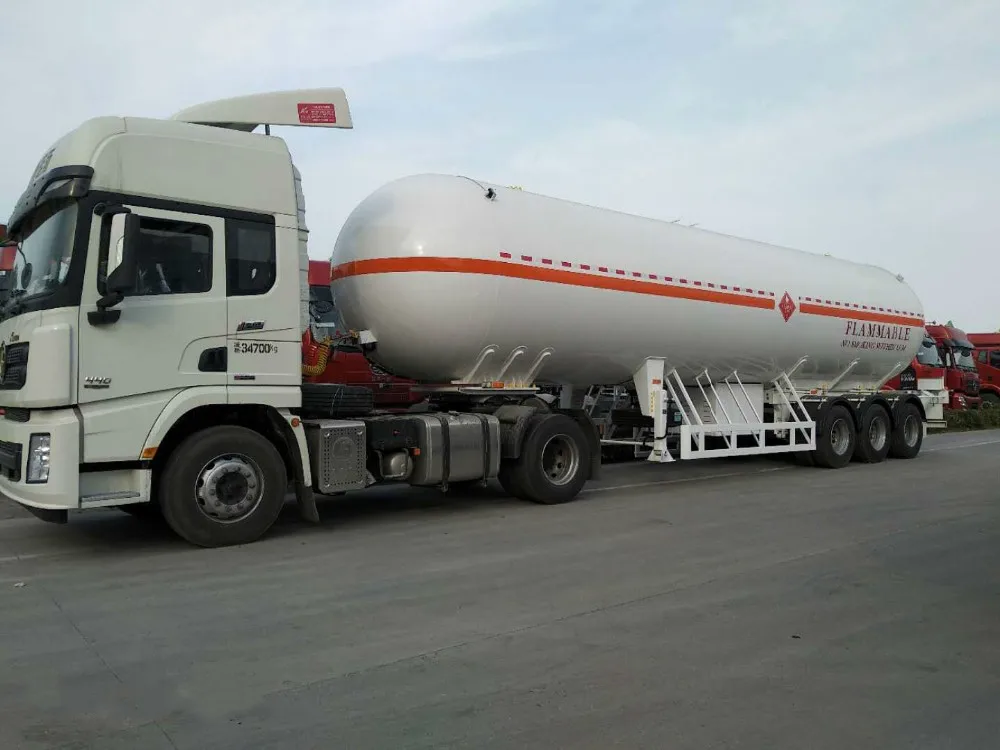

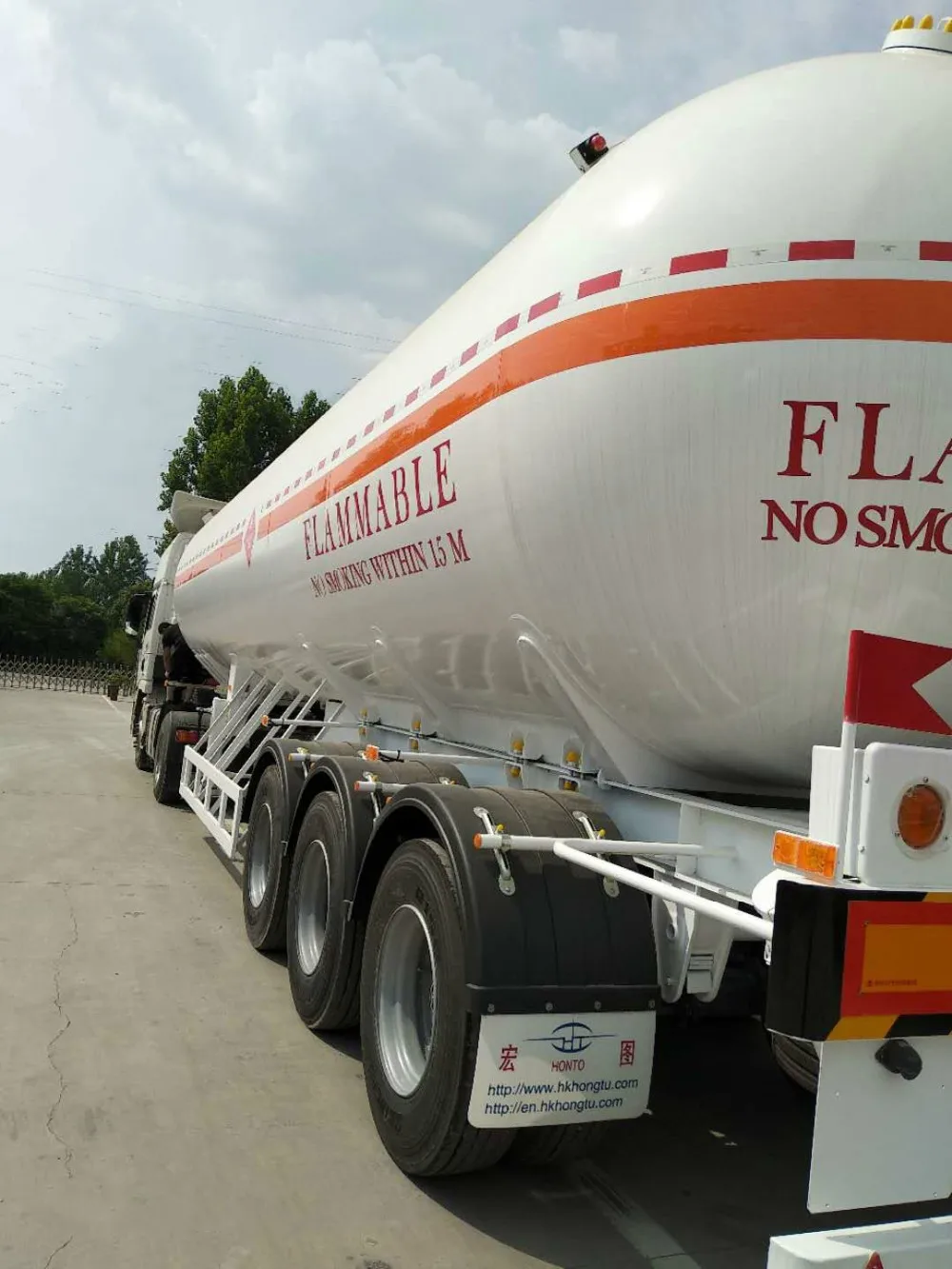

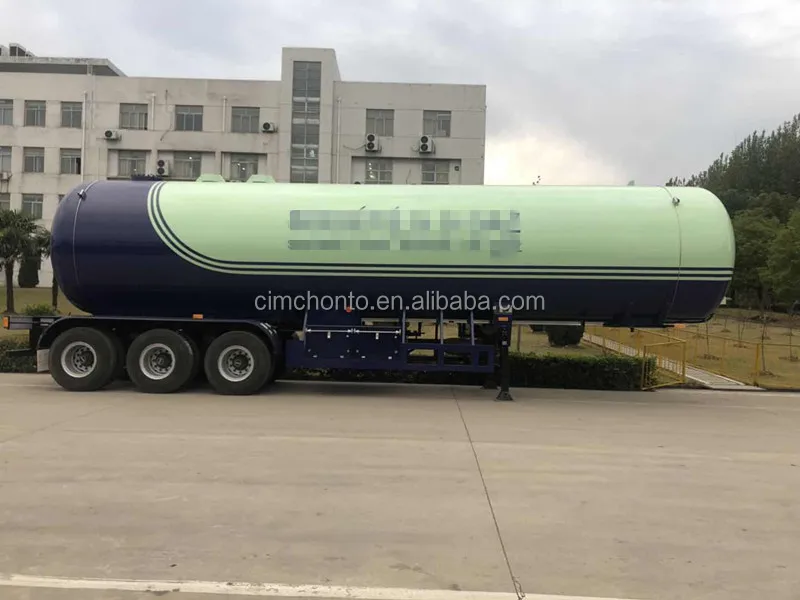

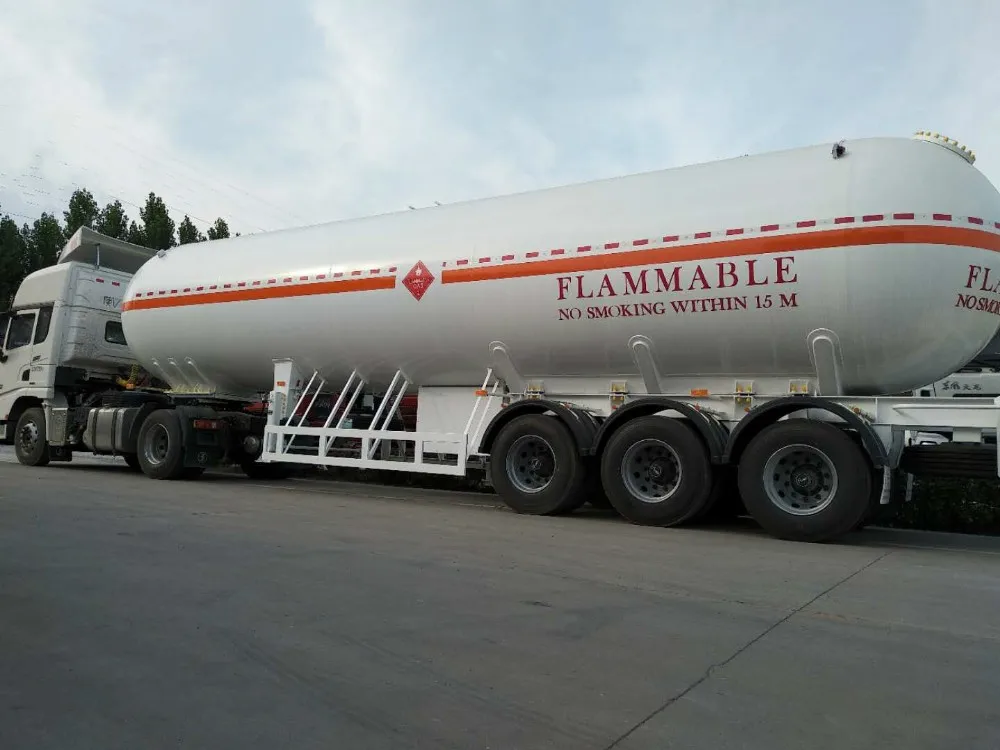

Finished LPG trailer

Company Information

CIMC ENRIC • Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called Hongtu, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since her establishment in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked 68th in Chinese Top 500 businesses), is engaged in R&D of normal temperature storage & transportation equipment and cryogenic storage & transportation equipment, EPC contracting, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2.

The Company always stands in the forefront leading the industrial development. "HONTO" Brand LPG tanker's production and sales has ranked No.1 in China for the past three decades with a domestic market share over 60% all along. Hongtu has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also the only LPG full-industrial chain equipment manufacturer and solution provider in China.

"HONTO" brand LPG storage and transportation equipment has been distributed to more than 32 countries in America, Middle East, South America, Southeast Asia, Northeast Asia and Africa.

Our Products

Our main products:

LPG Semi-trailer
LPG Bobtail/Rigid Tanker
LPG ISO Tank Container
LPG Spherical Tank
LPG Horizontal/Mounded/Domestic Storage Tank
LPG Plant/Filling Plant/Autogas Station
LPG/Autogas Filling Skid
