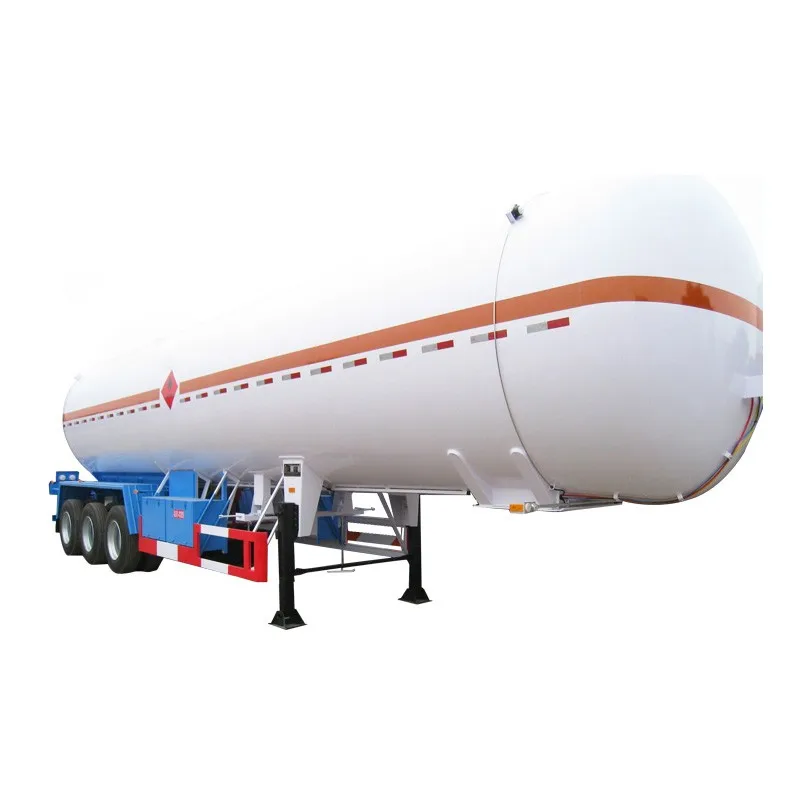

24Ton 52m3 50000 liters fuel tank semi trailer lpg gas tanker trailer

FOB Reference Price:Get Latest Price
$20,000.00 - $38,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HT9407GYQ
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Steel
Certification:
CCC, ISO, BV
Size:
12723*2500*4000mm
Place of Origin:
China
Brand Name:
HONTO or Customized
Axle:
3
Capacity:
52000L
Loading capacity:
24090kg
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Nude Package or Customized Package.
Port
Shanghai, Wuhan or any port of China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 To be negotiated
Product Description

We have been engaged in R&D and manufacturing of pressure vessels and liquefied gas storage and transportation equipment since 1980s.
Our main products include: various storage and transportation equipment for LPG, LNG, Cryogenic liquid, and other chemical liquid.

Model
HT9407GYQ
Design Code
Chinese GB Standard
Total Weight
37790kg
Payload
24090kg
Net Weight
13700kg
Overall Dimension(L*W*H)
12723*2500*4000mm
Medium
LPG
Capacity
52m3
Inside Diameter
2400mm
Total Length of Tank
12.342m
Design Pressure
1.72/-0.1MPa
Tank Weight
9500kg
MAWP
1.72MPa
Design Temperature
-20/50℃
Medium Density
0.545t/m3
Joint Efficiency
1.0
Corrosion Allowance
1mm
Shell Material
Q370R Normalized
Head Material
Q370R Normalized
Shell Thickness
12mm
Head Thickness
8mm
Leakage Test Pressure
1.72MPa
Hydrostatic Test Pressure
2.24MPa
Packing & Delivery

Packaging: Nude or according to customer's requirements
Delivery: Ship in 60-80 days after payment

Company Information

CIMC ENRIC • Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called Hongtu, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since her establishment in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked 68th in Chinese Top 500 businesses), is engaged in R&D of normal temperature storage & transportation equipment and cryogenic storage & transportation equipment, EPC contracting, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2.

The Company always stands in the forefront leading the industrial development. "HONTO" Brand LPG tanker's production and sales has ranked No.1 in China for the past three decades with a domestic market share over 60% all along. Hongtu has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also the only LPG full-industrial chain equipment manufacturer and solution provider in China.

"HONTO" brand LPG storage and transportation equipment has been distributed to more than 32 countries in America, Middle East, South America, Southeast Asia, Northeast Asia and Africa.

Our Products

Our main products:

LPG Semi-trailer
LPG Bobtail/Rigid Tanker
LPG ISO Tank Container
LPG Spherical Tank
LPG Horizontal/Mounded/Domestic Storage Tank
LPG Plant/Filling Plant/Autogas Station
LPG/Autogas Filling Skid

Our Workshop

Our Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2 .
