23.4 m3 26.7 tons Cryogenic Transportation Semi-trailer 26m3 liquid oxygen tank transport trailer

FOB Reference Price:Get Latest Price
$30,000.00 - $40,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
HT9403GDY1
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 180 Negotiable
Report Suspicious Activity
Overview
Quick Details
Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Steel
Certification:
China GB Standard
Size:
11000x2490x3600 mm
OEM No.:
1
Max Payload:
26700kg
Place of Origin:
Hubei, China (Mainland)
Brand Name:
CIMC Enric Hongtu
Effective Volume:
23.4m3
Gross Vehicle Weight:
40000kg
Kerb Weight:
13300kg
Wheel space:
4940+1320+1320mm
Environmental Temperature:
-183℃ / -20~+50℃
Filling ratio:
0.90
Weight of Vessel:
7900kg
Design pressure:
0.8/-0.1 MPa
Design Temperature:
-183℃ / -20~+50℃
Working Temperature:
-183℃
Supply Ability
Supply Ability:
50 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
international standard
Port
any port in China
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 180 To be negotiated
Product Description

Industrial Gas Trailers

To meet the demand of rapid development of the industrial gas industry domestically and overseas, since CIMC Hongtu rolled out the first liquid oxygen tanker, aiming at market demand, 18 models of industrial gas tankers are developed and designed in succession, the production line covered Carbon Dioxide, Liquid Oxygen, Liquid Nitrogen, Liquid Argon, Liquid Ethylene, Liquid Ethane and other mainstream mediums, we can provide products of super quality, competitive price, high efficiency and safety and complete total solutions to the industry users, comprehensively meet the different demand of the users of industrial gas industry to storage & transporation equipment.

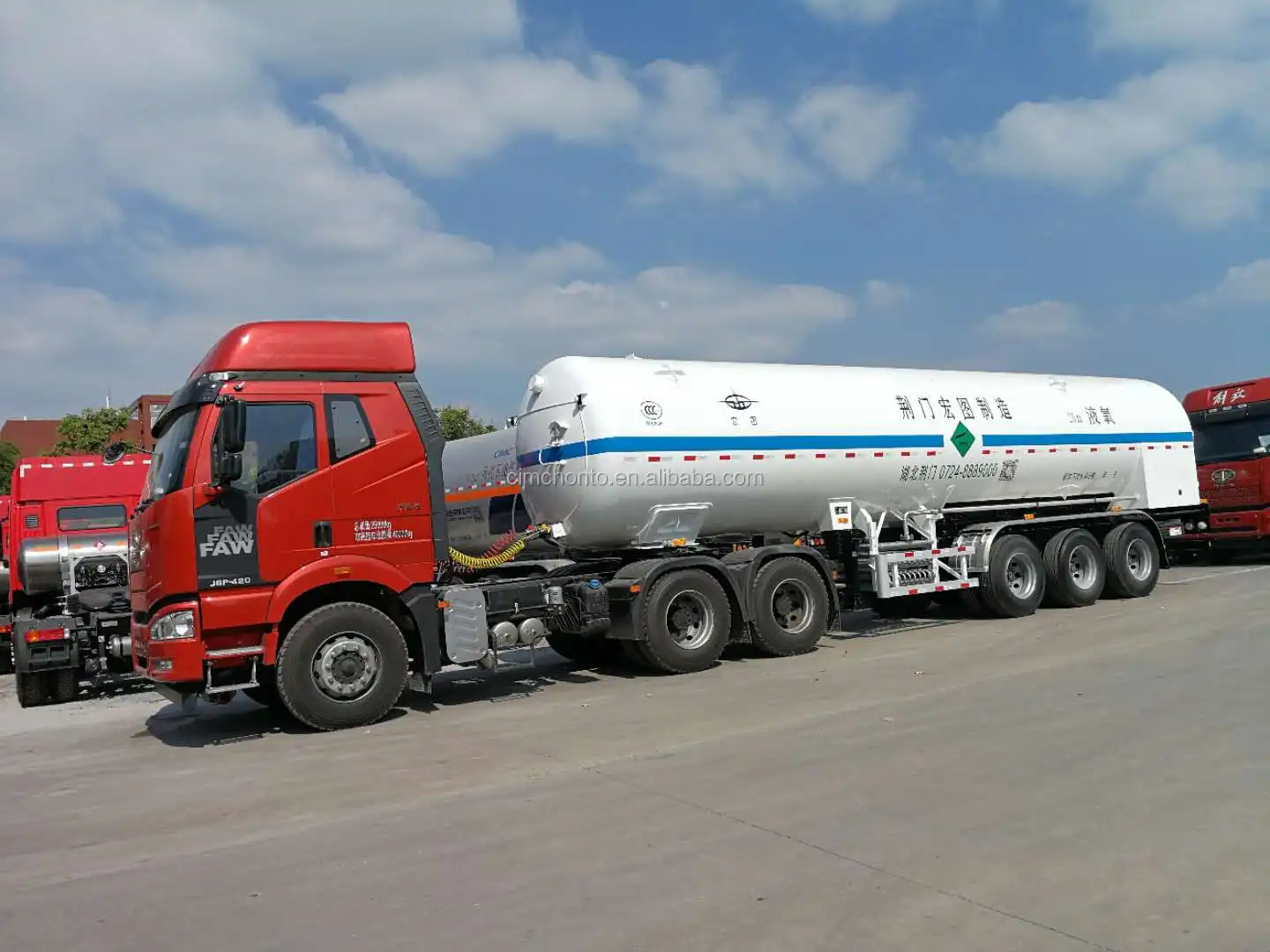

Main Technical Characteristic of 26m³ Liquid Oxygen Semi-trailer

Gross Vehicle Weight
40000 kg
Max. Payload (90% filling)
26700 kg
Kerb Weight
13300 kg
Overal Dimensions
Length: 11000mm Width: 2490mm Height: 3600mm
Wheel Space
4940+1320+1320 mm
Environmental Temperature
-183 ℃ -20~+50 ℃
Performance Datas
Volume
26 m³
Effective Volume
23.4 m3
Design Pressure
0.8 MPa /-0.1 MPa
Weight of Vessel
7900 kg
Design Temperature
-196 ℃ / +50 ℃
MAWP
-0.1 MPa
Joint Efficient
1.0 / 0.85
Corrosion Allowance
0
Material of Shell
S30408 / Q345R
Material of Tank
S30408 / Q345R
Working Temperature
-183 ℃ -20~+50 ℃
Working Pressure
0.8 MPa /-0.1 MPa
Product Standard
TSG R0005-2011 NB/T47058-2017
Certifications
Company Introduction

CIMC·Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd. has 30 years experience in the design and manufacturing of storage and transportation equipments for liquefied gas and dangerous chemicals. The company has participated in the compiling of National TSG R0005-2011 Mobile Pressure Vessel Safety Technology Supervision Regulation and GB 18564.1-2006 Liquid & Dangerous Goods Transport Tank Vehicle Standards.

The company has developed 62 models of liquefied gas transport vehicle which features more than 30 patented technologies. For 20 years, the production and sales volume always ranks the first in domestic market, and the products have been exported to more than 40 countries and areas.

Hongtu liquefied gas transport vehicle is specially used for the road transport of liquefied gas like LPG, propane, propene, liquid ammonia, butadiene, iso-butane, and isobutene. The company has more than 30 core technologies including stress analysis and design, high strength light aluminum alloy weather board made of aeronautical materials with military manufacturing technology, wholly embedded safety valve, quadrangular outriggers, precision assembly between the tank and the travel mechanism, etc. as well as professional modular manufacturing lines, robot welding, etc. For more than 20 years, the company is always in the leading position and ranks the first in terms of market share in the domestic market.

Our Workshop

Our Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2 .

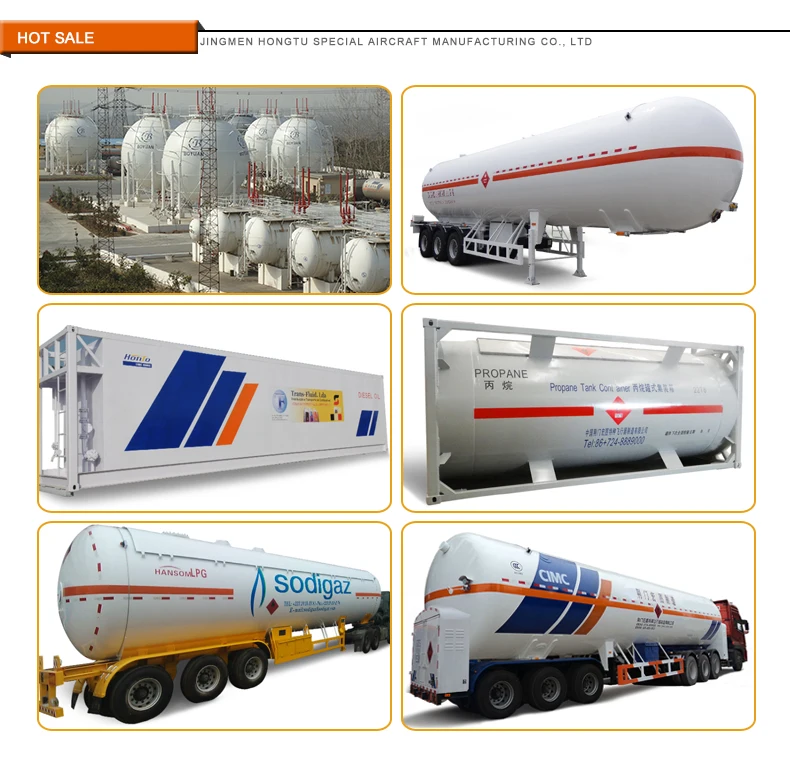

Main Products

 Semi-trailer

 Bobtail/Rigid Tanker

 ISO Tank /Tank Container

 Spherical Tank

 Horizontal/Mounded/Domestic Storage Tank

LPG Plant/Filling Plant/Autogas Station

LPG/Autogas Filling Skid
