20feet ISO tank container ASME liquid chlorine tank container

FOB Reference Price:Get Latest Price
$10,000.00 - $21,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
AS20FLCL
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Capacity:
20000L
Place of Origin:
Hubei, China (Mainland)
Brand Name:
HONTO
Dimension(L*W*H):
6058*2438*2591mm
Weight:
8750KG
Certification:
ASME, ISO, ADR, CSC, CCC, BV
Warranty:
12 Months
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Material:
Steel
Medium:
Liquid Chlorine
Payload:
24.2T
Design pressure:
1.7MPa
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Nude package or customized package.
Port
Shanghai, Wuhan, Jingzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

We have been engaged in R&D and manufacturing of pressure vessels and liquefied gas storage and transportation equipment since 1980s.


Our main products include: various storage and transportation equipment for LPG, LNG, Cryogenic liquid, and other chemical liquid.

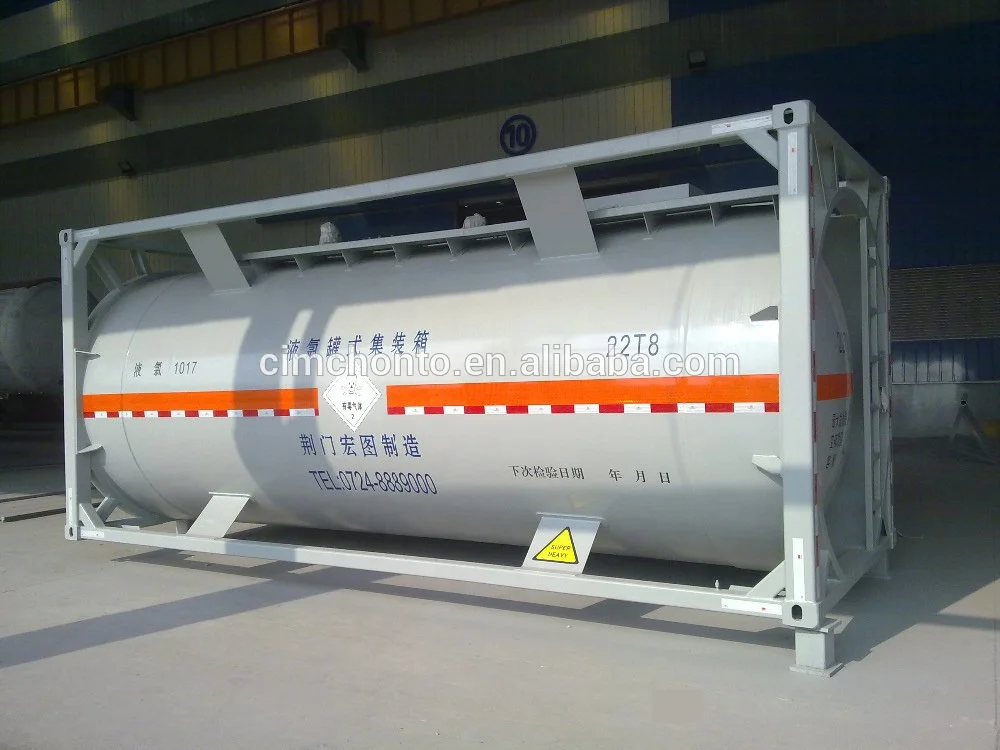

20 Feet Liquid Chlorine ISO Tank Container
Product Name
20 Feet Liquid Chlorine ISO Tank Container
Model
HT20FD-20A
Design Code
ASME Code
Design Pressure
1.7MPa
Design Temperature
60℃
MDMT
-40 ℃ at 1.9MPa
Shell Material
SA-516M Gr.485 Normalized
Head Material
SA-516M Gr.485 Normalized
Overall Dimension(L/W/H)
6058*2438*2591
Nominal Volume
20000L
Tare Mass
8750KG
Max Gross Mass
24200KG (UN1017)
Working Pressure
1.5MPa
Working Temperature
-40~+55℃
Hydro Test Pressure
2.72MPa
Leakage Test Pressure
1.7MPa
Medium
Liquid Chlorine
Medium Density
1.21t/m3
Corrosion Allowance
4mm
Joint Efficiency
1.0
Authorized Inspection Agency
BV/TUV
U2 Stamp
Yes
Packing & Delivery

Packaging: Nude or according to customer's requirements
Delivery:

Ship in 40 days after receiving payment if the container is in stock.
Ship in 120 days after receiving payment if the container is not in stock.

Company Information

CIMC ENRIC • Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called Hongtu, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since her establishment in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked 68th in Chinese Top 500 businesses), is engaged in R&D of normal temperature storage & transportation equipment and cryogenic storage & transportation equipment, EPC contracting, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2.

The Company always stands in the forefront leading the industrial development. "HONTO" Brand LPG tanker's production and sales has ranked No.1 in China for the past three decades with a domestic market share over 60% all along. Hongtu has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also the only LPG full-industrial chain equipment manufacturer and solution provider in China.

"HONTO" brand LPG storage and transportation equipment has been distributed to more than 32 countries in America, Middle East, South America, Southeast Asia, Northeast Asia and Africa.

Our Products

Our main products:

LPG Semi-trailer
LPG Bobtail/Rigid Tanker
LPG ISO Tank Container
LPG Spherical Tank
LPG Horizontal/Mounded/Domestic Storage Tank
LPG Plant/Filling Plant/Autogas Station
LPG/Autogas Filling Skid

Our Workshop

Our Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2 .
