18.9 tons 45.5m3 40' 40 feet cryogenic 40ft lng iso tank container

  • 1 - 9 Sets
    $80,000.00
  • >=10 Sets
    $78,000.00
Model Number:
PCC04-00003 - 2
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Applicable Industries:
Energy & Mining
Max Working Pressure(MPa):
0.79 MPa
Capacity:
45.5m3
Place of Origin:
Hubei, China
Brand Name:
CIMC Enric Hongtu
Dimension(L*W*H):
12192x2438x2591 mm
Weight:
11580 kg
Certification:
China GB Standard
Key Selling Points:
High Safety Level
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Rated Mass:
30480 kg
Max. Allowable Filling Weight:
18900kg
Design Pressure:
0.79/-0.1 MPa
Design temperature:
50 ℃
MDMT:
-196/-40 ℃
Materials for Shell:
S30408/Q345R
Materials for Head:
S30408/Q345R
Working Pressure:
≤0.79MPa
Working Temperature:
-162~50℃
Corrosion Allowance:
0
Warranty:
1 Year
Supply Ability
Supply Ability:
2000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Naked package or customized wih protective covers
Port
Shanghai, Wuhan, Jingzhou or else
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Video Description
Products Description

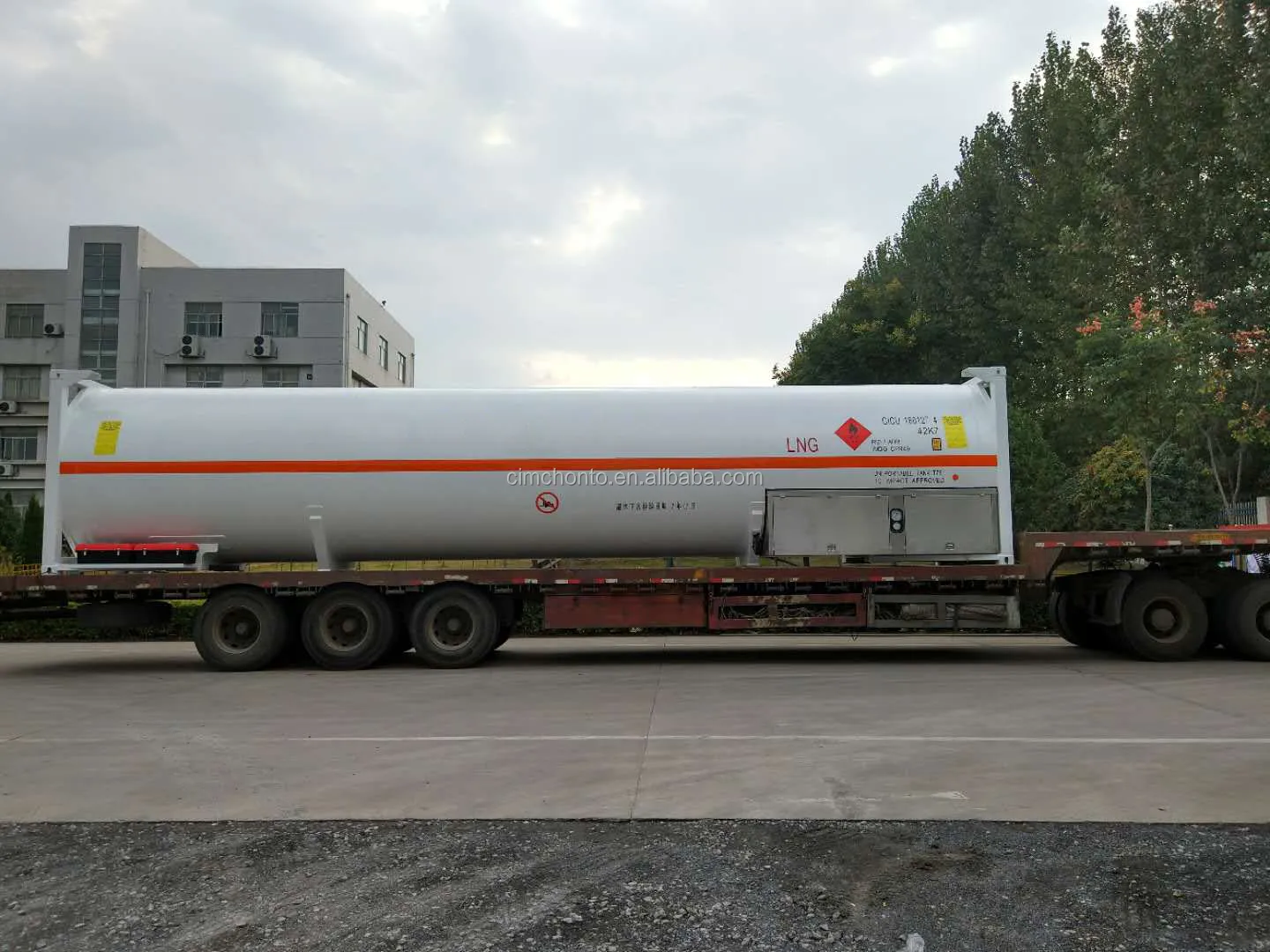

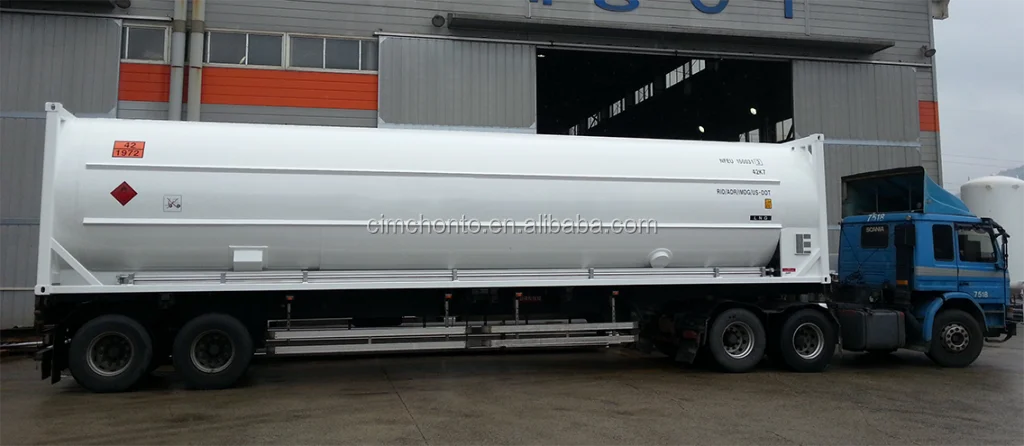

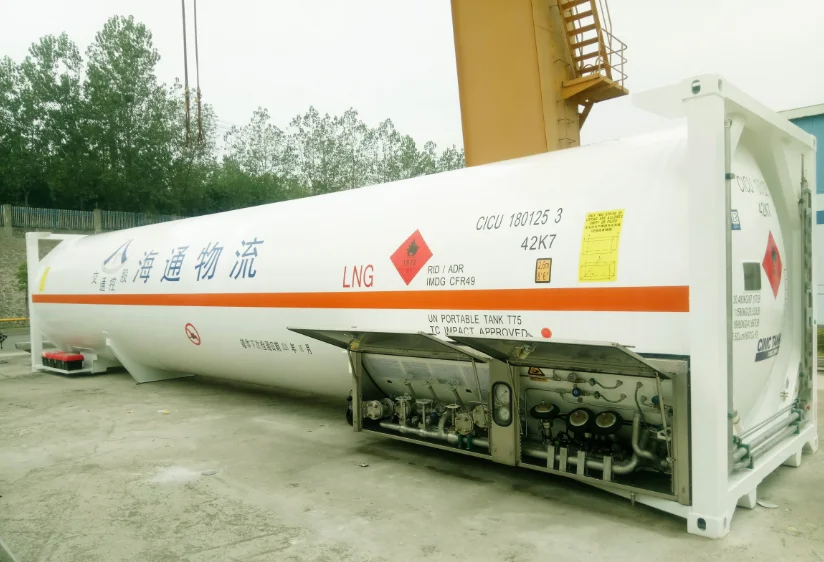

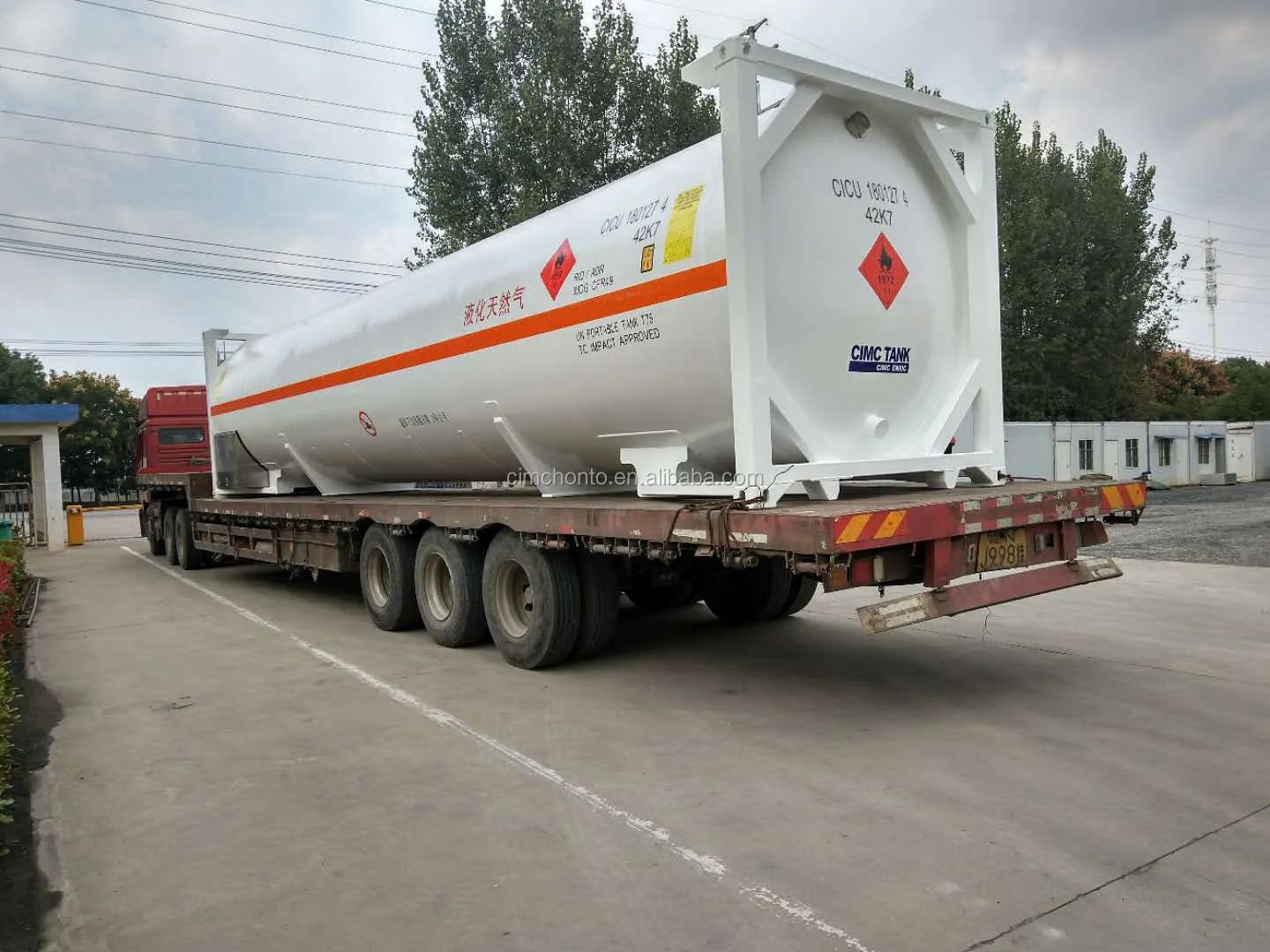

LNG ISO Tank Container
The LNG ISO Tank Container adpots GB standard and ASME standard, and has special equipment manufacturing supervision and inspection certificate, China Classification Society and BV classification society certificate, which can meet the requirements of road, sea, railway and intermodal multi-model transportation.
Technical Speccification
Design code: NB/T47059, TSG R0005, ASME BPVC.Ⅷ.1, RID/ADR, IMDG T75, UIC, DOT49CFR, CSC, ISO1496/3
Dimension: (L*W*H): 12192x2438x2591(mm)
Maximum Allowable Working Pressure: 0.79 MPa(GB)/0.83 MPa(ASME)
Capacity: 45.5m3
Insulation Type:
High Vacuum Multilayer Insulation
ASME Code LNG ISO Tank Container
20ft
40ft
Inner Tank Material
S30408/SA240 304
S30408/SA240 304
Outer Tank Material
Q345R
Q345R
Design Capacity
20.2m3
45.5m3
Medium
LNG
LNG
Tare Mass
7750KG
11807KG
Max. Gross Mass
360000KG
30480KG
Tank Outline Dimension( ID * H * L)
6058*2438*2591mm
12192*2438*2591mm
Design pressure
1.8 MPa
0.79 MPa
Allowable Working pressure

1.8MPa
0.79 MPa
Working Temperature
-196~50 ℃
-196~50 ℃
Design Temperature
50 ℃
50 ℃
Corrosion Allowance
0mm
0mm
Insulation
High Vacuum Multi-layer Insulation
High Vacuum Multi-layer Insulation
Vavle and Instrument
Certificate

ASME U Certificate

ASME U2 Certificate

Certificate of Authorization to Register NB

Container Factory Approval Certificate
BVCT 1681762/S

ADR 2017

GB/T28001-2011/OHSAS18001:2007

OCCUPATIONAL HEALTH AND SAFETY MANAGEMENT SYSTEM CERTIFICATE

GB/T19001-2016/ISO9001:2015

QUALITY MANAGEMENT SYSTEM CERTIFICATE

GB/T24001-2016/ISO14001:2015

ENVIRONMENTAL MANAGEMENT SYSTEM CERTIFICATE

SY/T6276-2014, Q/SY1002.1-2003, Q/SHS0001.1-2001

HSE MANAGEMENT SYSTEM CERTIFICATE

Manufacture License of Special Equipment

Pressure Vessel

Design License of Special Equipment

Pressure Vessel

Design License of Special Equipment

Pressure Pipe
Company Profile

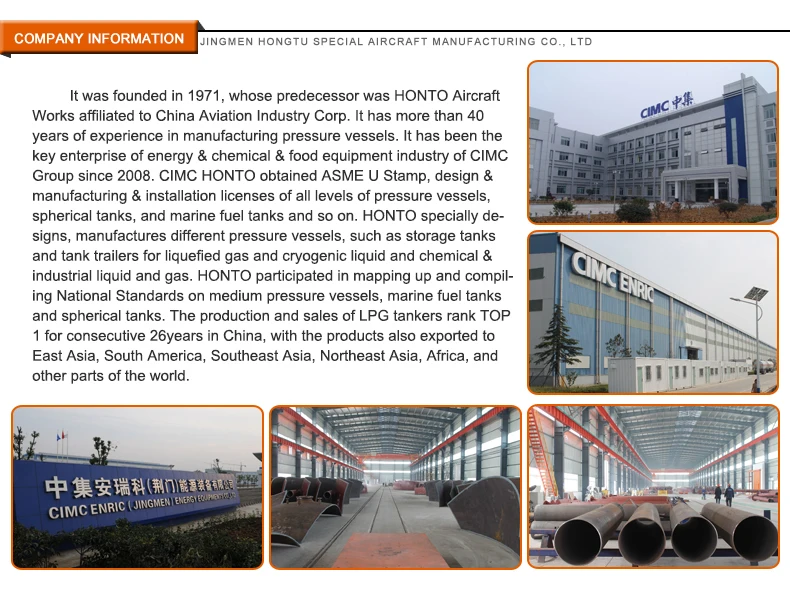

Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd.

Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called HONGTU, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since established in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked the 68th in China's Top 500 businesses), is engaged in R & D of normal temperature storage & transportation equipment, cryogenic storage & transportation equipment, EPC services, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has more than 1,300 employees, including approx. 200 R&D professionals, and has workshop area totaling 130,000 m2.

In the 1980s, HONGTU entered into the industry of hazardous chemicals storage & transportation equipment manufacturing based on the advantages of aviation technology, providing customers with individualized and integrated solutions in the fields of hazardous chemicals'storage & transportation, gasification in cities/towns and vehicle/vessel's oil-to-gas transformation.

The Company always leads the development of the industry. The production and sales of "HONTO" Brand LPG tanker has been ranking No.1 in China in the past 36 years. The domestic market share of HONGTO reaches over 60% all along. HONGTU has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also China's only LPG full-industrial chain equipment manufacturer and solution provider.

The Company has ASME "U" and "U2" Stamps Qualification and all Chinese National Permits for design, manufacture and installation of various pressure vessels, spherical tanks, urban gas pipeline projects and marine fuel tanks, and has developed and drafted a number of national standards on pressurized and non-pressurized products of China.

The Company provides global customers and partners with safe, efficient and value-added energy and chemical storage &
transportation equipment under the concept of providing service in the full product life cycle and creating values for customers, through the three-in-one marketing mode of brand communication, product sale and lifelong service, and is committed to become a leading competitive supplier with in the field of global energy chemical industry.

"HONTO" brand LPG storage and transportation equipment has been distributed to more than 40 countries & regions in North America, South America, Southeast Asia, South Asia, Middle East and Africa, etc.

Our Advantages

01 Powerful R&D Ability
HONGTU has been rated as "Hubei Province Technical Center for Pressure Vessels", "Hubei Province Workstation for High-skilled Talents", etc. We have acquired more than 120 patents through the "Producing, Learning and Researching" practice, and frequent technical communications and cooperation with China Standardization Committee on Boilers and Pressure Vessels, China Classification Society, Tsinghua University, Shanghai Jiao Tong University, Zhejiang University, Fuzhou
University, Huazhong University of Science and Technology, YPDI(Nanjing Yangzi Petrochemical Design Engineering Co., Ltd.), Burg Industries B.V., TGE GAS INVESTMENT SA, Department of Energy Business(DOEB in Thailand), Australia MLI company, and other Government agencies at home and abroad, Universities, famous companies in the industry.
02 Top Expert Team
We have more than 330 professional technical staff, 30 senior engineers(including 5 Researcher-level Engineers), about 500 staff who are multi-skilled technical talents and senior technicians, 9 outsourced experts and professors employed in the industry. We are the Editorial Board of the China National Boards of Supervision Regulation on Safety Technology for Transportable Pressure Vessel; We have participated in the compiling of many other standards, such as Road Tanker for Liquefied Gas, Road Tankers for Cryogenic Liquid, Supervision Regulation on Safety Technology for Transportable Pressure Vessel, Road Tanker for Dangerous Liquid Goods Transportation.
03 Strong Production Capacity
HONGTU has been facilitated with more than 2000 sets of equipment, such as plasma cutting machines, US Lincoln welding machines, welding robots, all kinds of large and medium-sized rolling machines, beveling machines, cranes, heat treatment furnace, NDT equipment, 2000 tons of spherical shell press machines and other large heavy equipment. Among them, there are more than 200 sets of testing equipment.
04 Comprehensive Industrial Chain Solution
HONGTU has been engaged in manufacturing of energy and chemical storage & transportation equipment for over 3 decades. Focusing on the production, storage and transportation, application and intensive processing of upstream, midstream and downstream liquefied petroleum gas industry chain, HONGTU forms complete industrial equipment cluster from oil refining device, spherical tank, large scale flat bottomed vertical tank to mounded type tank, from lightweight and large-volume liquefied gas tanker to core equipment manufacturing of various types of end applications and engineering application, is China's only LPG whole industry chain equipment manufacturer and solution provider.
05 Scientific and Reorous QA&QC System
HONGTU has a sound quality assurance system and perfect quality control procedures. Products from the entry of raw materials to the delivery to the user must pass 111 quality control points, 243 quality control procedures and 47 procedure document reviews. Annual radiographic inspection films of the products exceed more than 400,000 copies and each product quality files keep for more than 20 years, so each weld quality can be tracked. HONGTU continues to carry out the LEAN Management, introduce the ONE module, passes the HSE system(quality, occupational health and safety, environment) certification and realizes the comprehensive management of information, quality and workers in the manufacturing site.
06 Professional International ervices and Marketing Network
HONGTU has its own international business network and a sound international business organization structure, including 50 plus professionals engaged in technical service and overseas marketing, dedicated to providing overseas customers with technical consultation, business negotiation, product service, personnel training and a full range of integrated solutions services, and has built a three-level service assurance system comprised of salesperson, engineer and professional service personnel.
