ASME 1 ton 500 gallons 1.89m3 Propane lpg small pressure tank

FOB Reference Price:Get Latest Price
$1,500.00 - $1,600.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
HW-FA-180101-02
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hubei, China (Mainland)
Brand Name:
CIMC Enric Hongtu
Dimension(L*W*H):
2379mmx1050mm
Capacity:
1.89m3
Weight:
510 kg
After-sales Service Provided:
Field maintenance and repair service, Video technical support
Warranty:
1 Year
Design pressure:
1.724 MPa
MAWP:
1.724 MPa AT 51.7℃
Operating temperature:
51.7℃
MDMT:
-20℃ AT 0.7MPa
Corrosion allowance:
0
Material:
SA-516 GR.70 As-rolled
Minimum required thickness of shell:
6.61 mm
Minimum required thickness of head:
6.57 mm
Joint efficiency:
1.0
Tank weight under hydrostatic test:
510 kg
Supply Ability
Supply Ability:
50 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
international standard
Port
any port in China
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Product Description

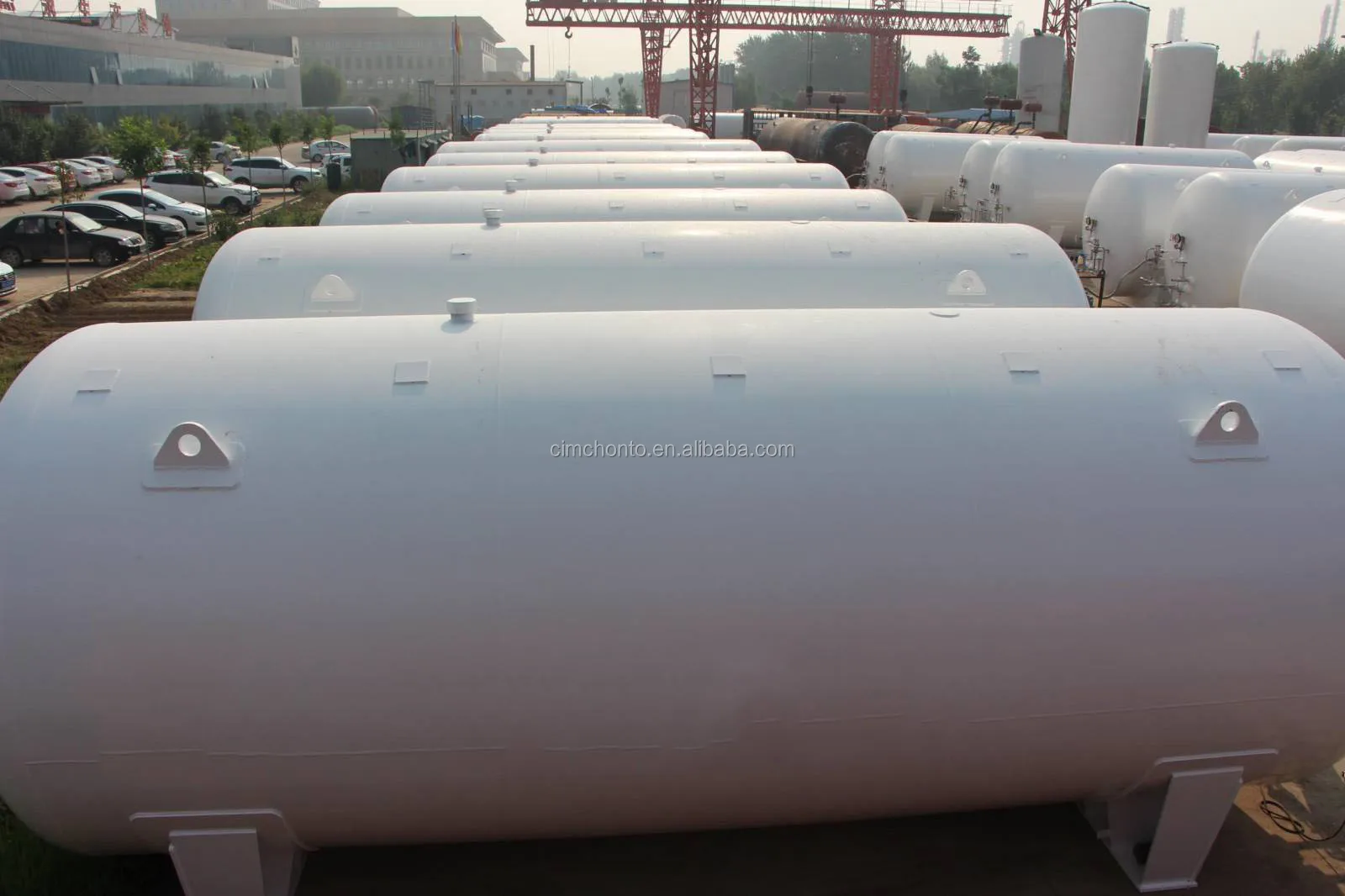

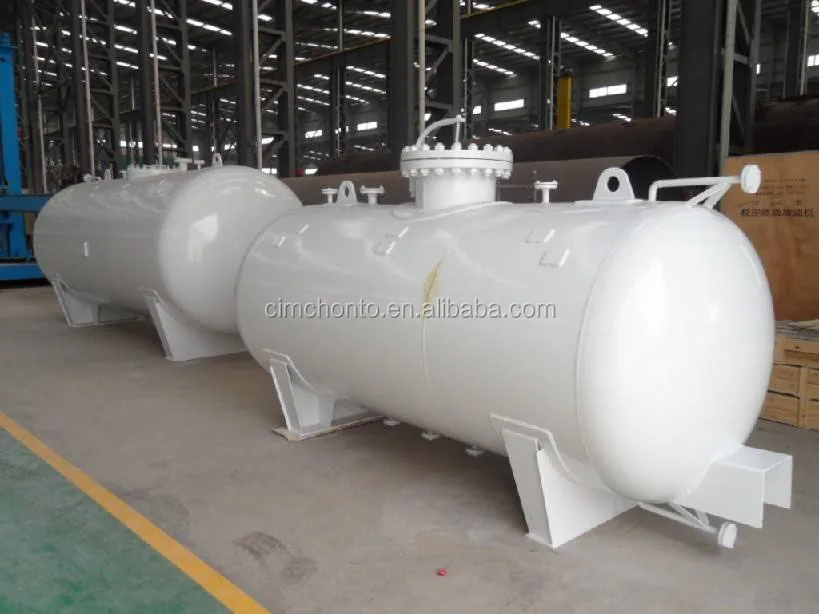

Propane LPG Storage Tank

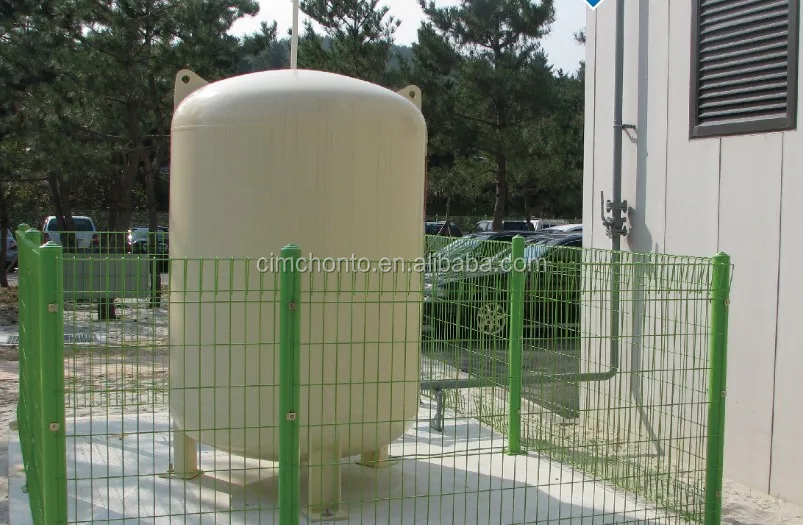

HONGTU has the design and fabrication capability of household storage tanks and stationary storage tanks, including above-ground storage tanks, underground storage tanks, horizontal storage tanks, and vertical storage tanks etc., which is customized according to the customers' requirement.

Technical Specifications
Design Codes: ASME BPVC Ⅷ-1/Ⅷ-2,GB/T 150,JB/T 4732
Vessel Capacity: 0.5m3~1000m3
Vessel Material: SA-516, SA-612,Q370R etc.

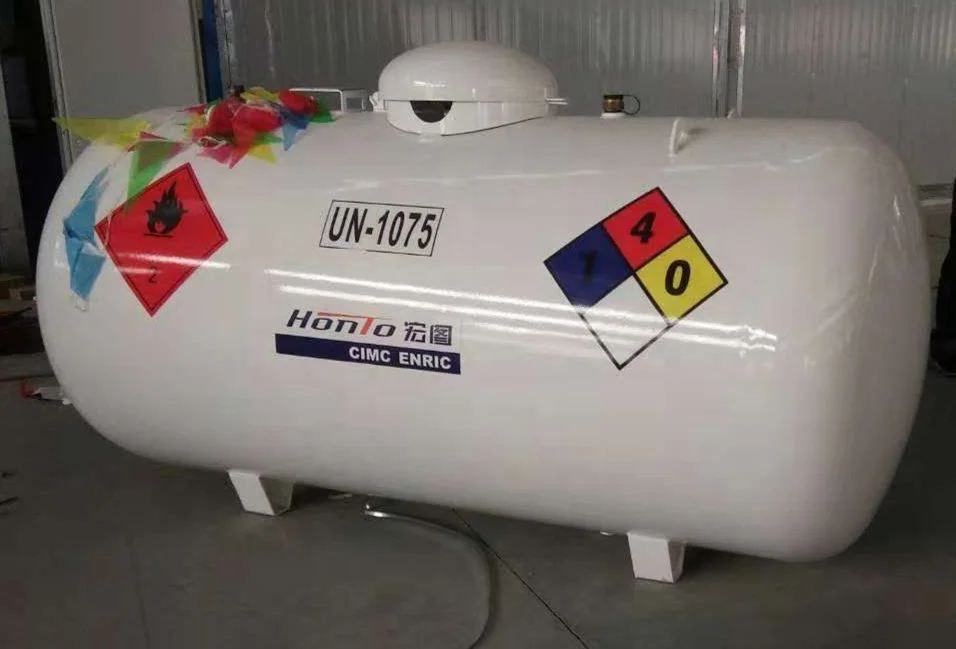

SPECIFICATIONS for 1.89 m3 LPG Storage Tank
Storage tank Model
HW-FA-180101-02
Water capacity
1.89 m³
Tank weight under hydrostatic test
2400 kg
Tank empty weight
510 kg
Design pressure
1.724 MPa
MAWP
1.724 MPa AT 51.7℃
Loading
LP Gas
Design Temperature
51.7℃
MDMT
-20℃ AT 0.7MPa
Corrosion allowance
0
Air-leackage test pressure
1.724/null
Hydro. or  PNUMATIC test pressure
2.25/1.897 MPa
Minimum required thickness of shell
6.61 mm
Minimum required thickness of head
4.57 mm
Main material
SA-516 GR.70 AS-ROLLED
Design& manufacturing standard, regulation for supervision & Inspection
ASME Boiler and Pressure Vessel Code, SECT. VIII. DIV. I, 2017ED
