ASME LPG propane storage tank 25-50 CBM

FOB Reference Price:Get Latest Price
$15,000.00 - $25,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
WG18-2400-25/32/40/45/50
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Graphic customization (Min. Order: 1 Pieces)

More

Customized packaging (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
energy & chemical & transportation & storage
Condition:
New
Capacity:
25-50 CBM
Place of Origin:
Hubei, China
Brand Name:
CIMC HONTO
Dimension(L*W*H):
(6006-11516)x2400x3250 mm
Weight:
8420-14450 kg
Certification:
ASME
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service
Tank mass:
8420-14450KG
Payload:
11580-23160KG
Working pressure:
≤1.724MPa
Design pressure:
1.724 MPa
Working temperature:
-20~50 ℃
Allowable working:
1.724 MPa
Design Temperature:
-20/50 ℃
Filling ratio:
0.85
Shell Material:
SA-516 GR.70
Corrosion Allowance:
1.0mm
Supply Ability
Supply Ability:
200 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
International Standard
Port
Any Port in China
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

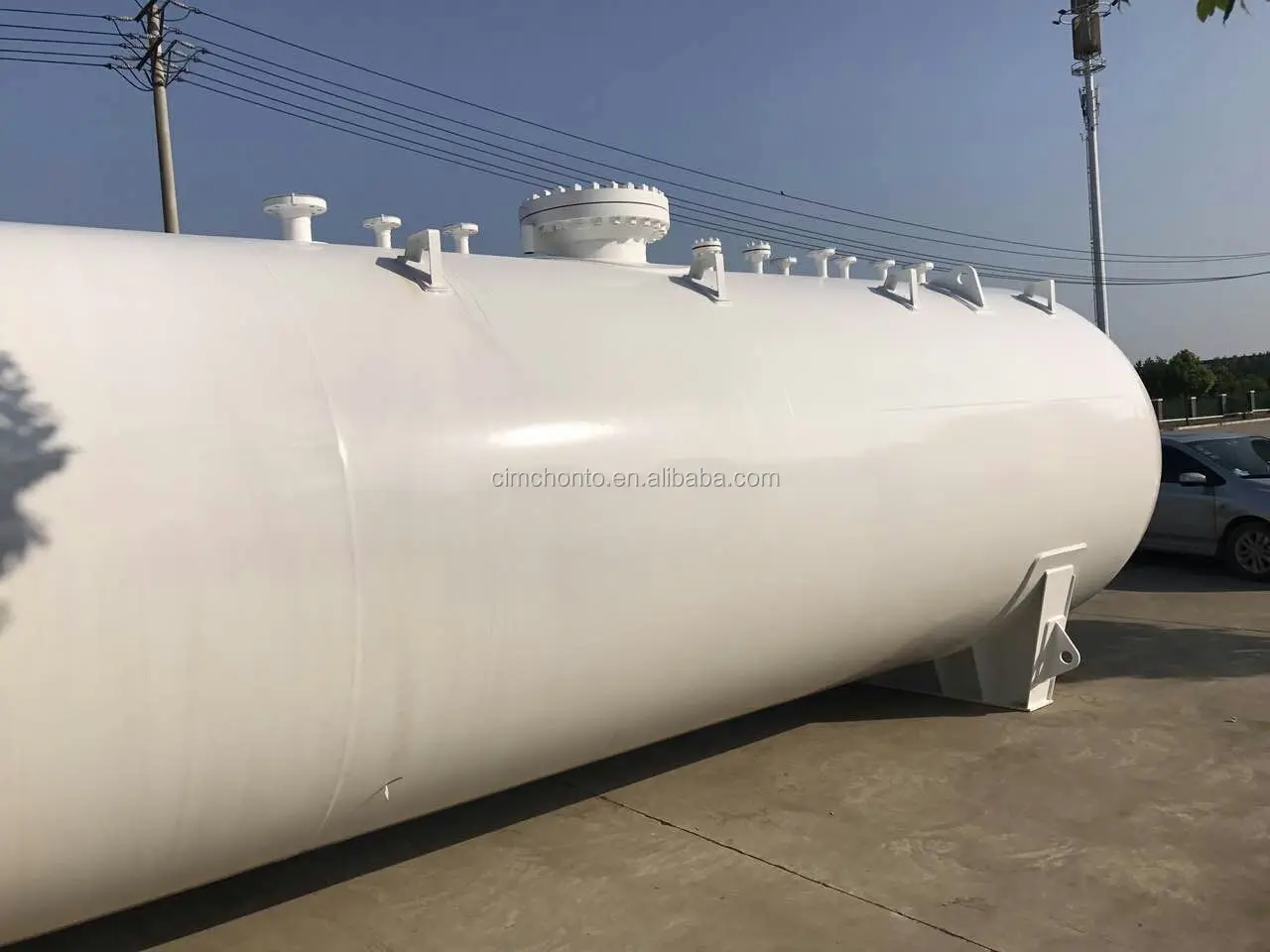

Propane LPG Storage Tank

HONGTU has the design and fabrication capability of household storage tanks and stationary storage tanks, including above-ground storage tanks, underground storage tanks, horizontal storage tanks, and vertical storage tanks etc., which is customized according to the customers' requirement.

Technical Specifications
Design Code: ASME BPVC Ⅷ-1/Ⅷ-2, GB/T 150,JB/T 4732
Vessel Capacity: 0.5m3~1000m3
Vessel Material: SA-516, SA-612,Q370R etc.

SPECIFICATIONS for Propane Storage Tank
Storage tank Model
WG18-2400-25/32/40/45/50
Design capacity
25-50 m³
Payload
11580-23160 kg
Net weight
8420-14450 kg
Tank Outline dimension ID * H * L
φ2400×3250×(6006-11516) mm
Working pressure
≤1.724 MPa
Design pressure
1.724 MPa
Working temperature
-20~50 ℃
Allowable working pressure
1.724 MPa
Loading
LPG (propane) / explosive,inflammable
Note: H2S≤10mg/m³
Design Temperature
-20/50 ℃
Filling ratio
0.85
Ambient temperature
-20~50 ℃
Corrosion allowance
1.0 mm
Hydraulic test pressure
2.25 MPa
Shell design thickness
18  mm
Main material
SA-516/GR70
Saddle standard
SA-105(N)/SA-106 Gr. B/Carbon steel
Design& manufacturing standard, regulation for supervision & Inspection
ASME BPVC Ⅷ-1 2017
