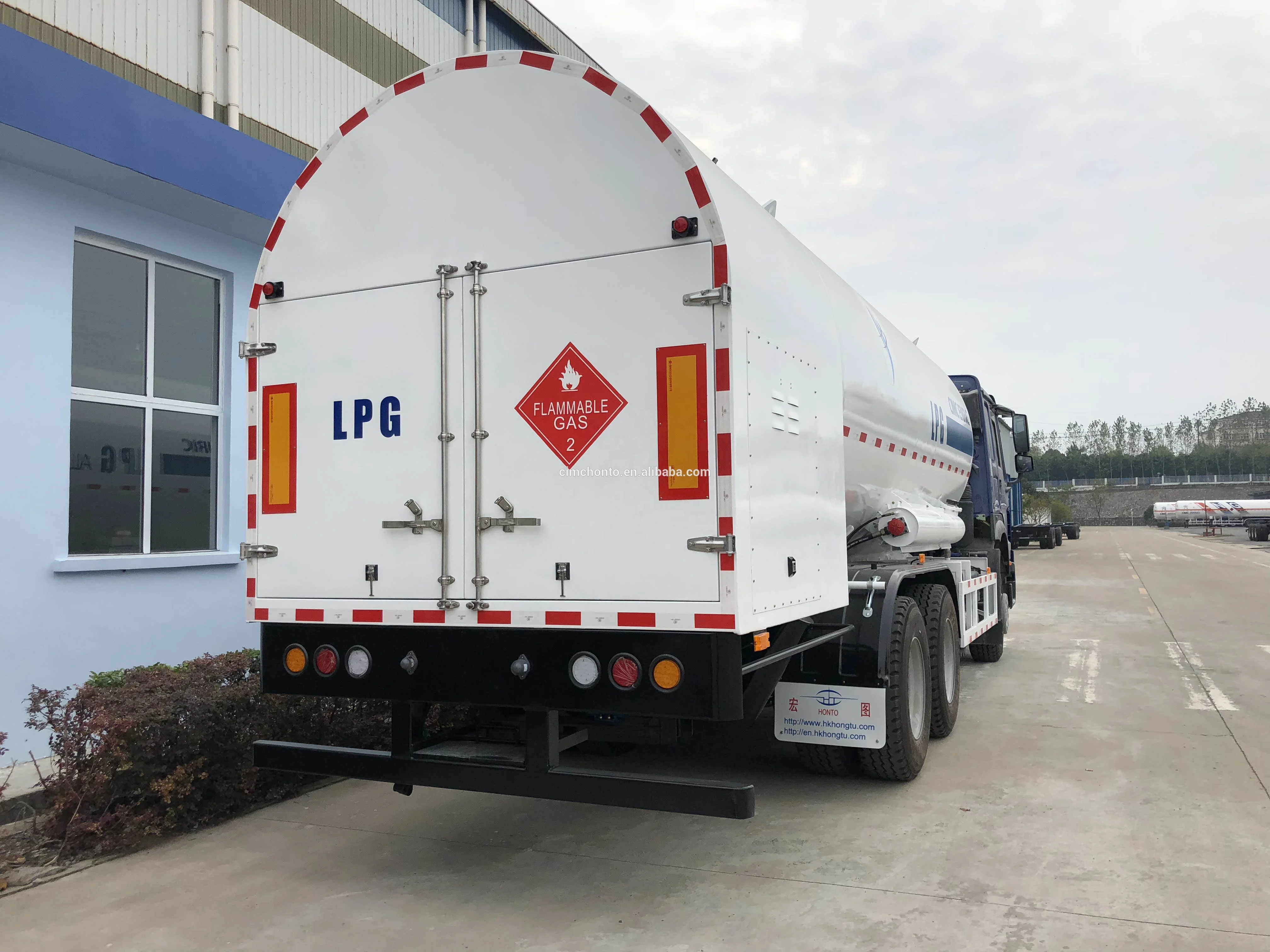

23.81m3 10ton LPG tank truck with pump

FOB Reference Price:Get Latest Price
$48,000.00 - $52,300.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DC2381-GB10
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Storage:
LPG
Tank Volume:
15001 - 30000L
Dimensions (L x W x H) (mm):
10040*2490*3580mm
Place of Origin:
China
Gross Vehicle Weight:
15320
Chassis brand:
SIONTRUK HOWO
Payload:
10ton
Pump:
Blackmer
Transmission type:
Manual
Design temperature:
50°C
Design pressure:
1.61/-0.1MPa
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude or covered with wax
Port
Shanghai or any port of China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Introduction

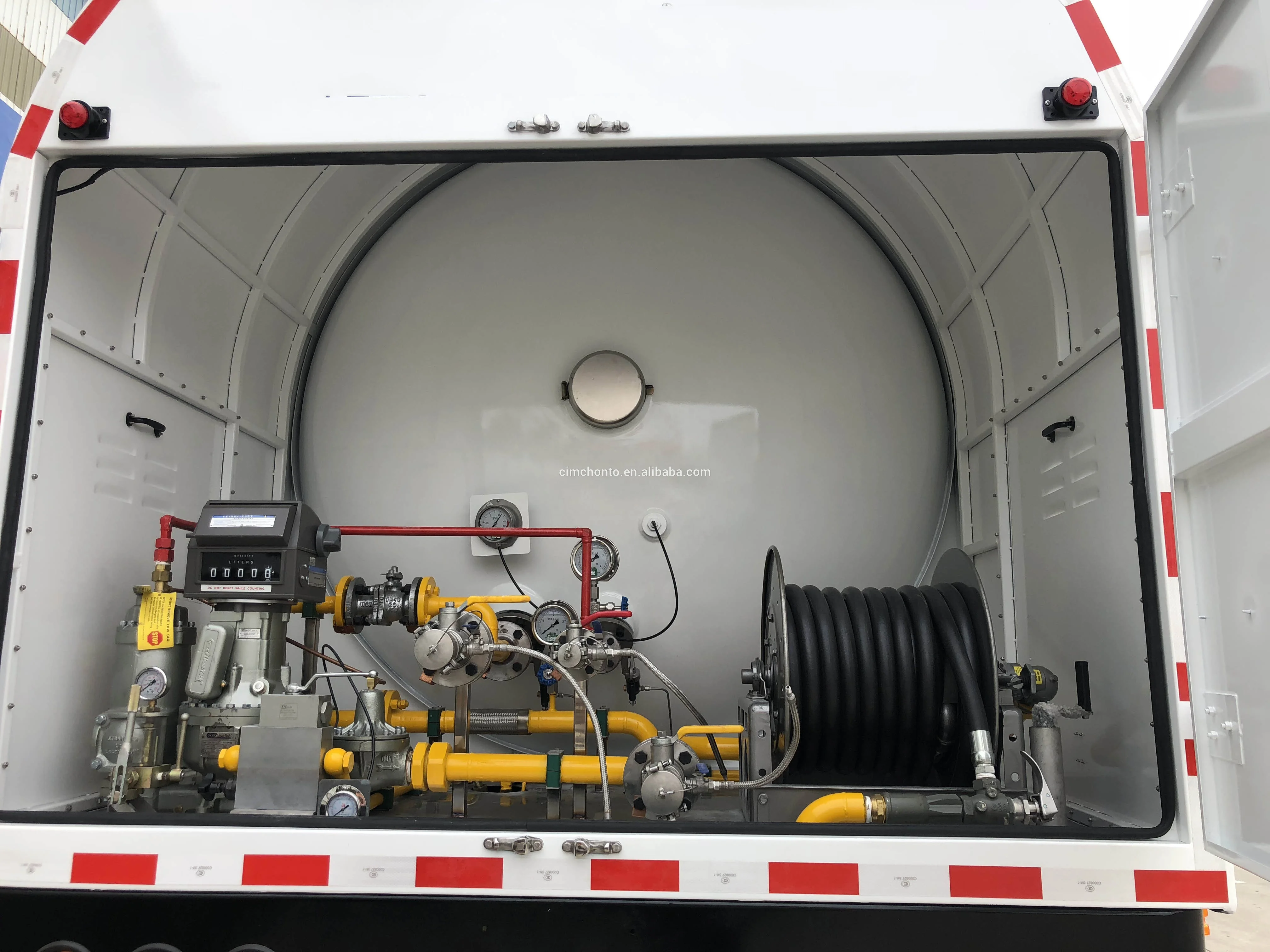

CIMC HONGTU( brand name HONTO) is qualified to design and manuafacture LPG bobtail tankers with pumps and loading & unloading system on the side or at the rear of the tankers. The pump can be driven by PTO, hydraulic or electric motor. The valves and instruments used on the bobtail tankers are well-known international brands, catering to application requirements of different countries.


Technical specification


Design code: ASME BPVC VIII-1/VIII-2, EN12493, GB/T19905, JB4732

Tank capacity: 5m3~40m3

Material: SA-516, SA-517, SA-612, P460, Q420, Q370R, ETC.

Product Parameters
Vehicle
Chassis
ZZ1257N4341W
Kerb weight
15320kg
Payload
10000kg
Gross vehicle weight
25450kg
Dimension
10040*2490*3580mm

Full load
First front axle load
7200kg
Middle and real axle load
18250kg
Max. vehicle roll angle
>35°
Design speed
straight road: 60km/h  turning:25km/h
Tank
Design pressure
1.61/-0.1MPa
Design temperature
50°C
Water capacity
23.81m3
Filling medium
LPG(propane)
Tank material
Q345R
Corrosion allowance
1mm
Tank weight
5340kg
Dimension
2250*12(13)*6431mm
Service year
10 years
Product Details Show
Certifications
Company Information

CIMC ENRIC • Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called Hongtu, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since her establishment in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked 68th in Chinese Top 500 businesses), is engaged in R&D of normal temperature storage & transportation equipment and cryogenic storage & transportation equipment, EPC contracting, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2.

The Company always stands in the forefront leading the industrial development. "HONTO" Brand LPG tanker's production and sales has ranked No.1 in China for the past three decades with a domestic market share over 60% all along. Hongtu has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also the only LPG full-industrial chain equipment manufacturer and solution provider in China.

"HONTO" brand LPG storage and transportation equipment has been distributed to more than 32 countries in America, Middle East, South America, Southeast Asia, Northeast Asia and Africa.

Our Products

Our main products:

LPG Semi-trailer
LPG Bobtail/Rigid Tanker
LPG ISO Tank Container
LPG Spherical Tank
LPG Horizontal/Mounded/Domestic Storage Tank
LPG Plant/Filling Plant/Autogas Station
LPG/Autogas Filling Skid

Our Workshop

Our Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2 .
