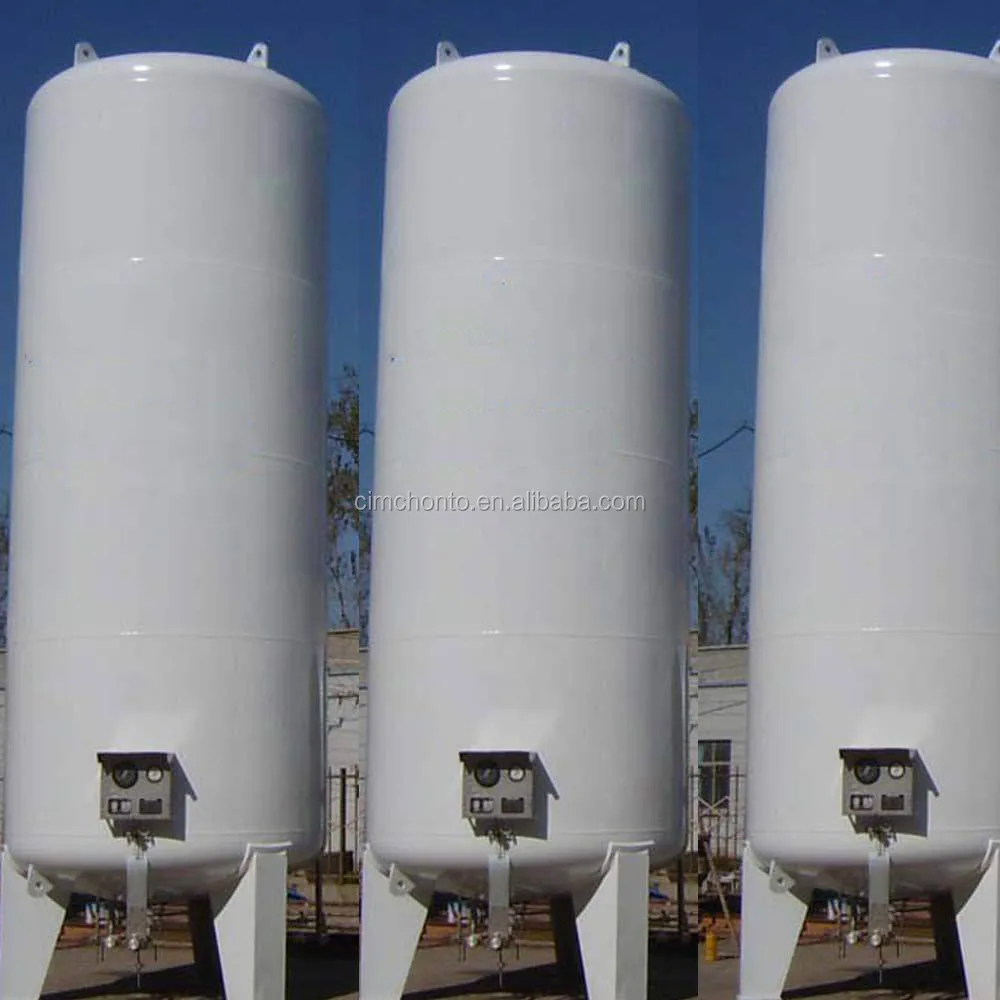

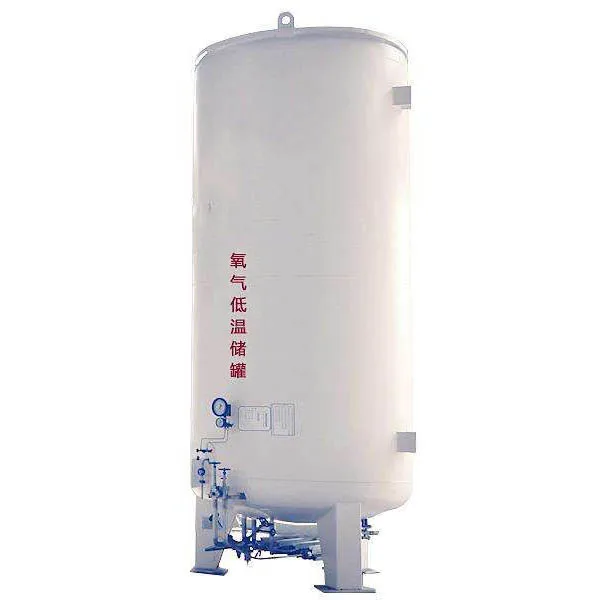

21.08m3 LO2/LN2/LAr Chemical Storage Tank Liquid Oxygen Nitrogen Argon Storage Tank Price

FOB Reference Price:Get Latest Price
$25,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
M21-GB22T
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
China
Brand Name:
HONTO
Dimension(L*W*H):
8730x2520x2574mm
Capacity:
21.08m3
Weight:
11300kg
After-sales Service Provided:
Field maintenance and repair service
Warranty:
1 Year
Filling medium:
LO2 /LAr/LN2
Filling capacity:
22820/27780/16140kg
Design code:
Chinese GB standard
Material:
Stainless steel S30408, carbon steel Q345R
Design pressure:
-0.1/1.68 MPa
Design temperature:
-196/50 ℃
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude, with wax or with cover as per customer's requirement
Port
Any port of China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

CIMC Enric Hongtu is one of the largest cryogenic stroage and transportation equipment manufacturer with the largest capacity and advanced internal insulation technology in the world. CIMC Enric Hongtu creates our own advanced vacuum pumping process and helium mass spectrum leak detection. The static evaporation rate is better than industry standard requirements.

Product Standard
GB150. GB/T18442. Q/15A119
Geometric Volume of Inner Vessel
21.08 m³
Volume of Interlayer
15.84 m³
Inside Diameter of Inner Vessel
2000 mm
Inside Diameter of Outer Shell
2504 mm
Height(Length) of Inner Vessel
7060 mm
Height(Length) of Outer Shell
8010 mm
Material for Inner Vessel
S30408
Material for Outer Shell
Q345R
Thickness of Inner Vessel
8 mm for shell; 9 mm for head
Thickness of Outer Shell
6 mm for shell; 8 mm for head
Boundary Dimension
8730x2520x2574 mm
Weight of Shell
11300 kg
Design Pressure of Inner Vessel
1.68 MPa
Design Pressure of Outer Shell
-0.1 MPa
Design Temperature of Inner Vessel
-196 ℃
Design Temperature of Outer Shell
50 ℃
Mediums
LO2, LN2, LAr
Certifications
Company Information

CIMC ENRIC • Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called Hongtu, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since her establishment in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked 68th in Chinese Top 500 businesses), is engaged in R&D of normal temperature storage & transportation equipment and cryogenic storage & transportation equipment, EPC contracting, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2.

The Company always stands in the forefront leading the industrial development. "HONTO" Brand LPG tanker's production and sales has ranked No.1 in China for the past three decades with a domestic market share over 60% all along. Hongtu has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also the only LPG full-industrial chain equipment manufacturer and solution provider in China.

"HONTO" brand LPG storage and transportation equipment has been distributed to more than 32 countries in America, Middle East, South America, Southeast Asia, Northeast Asia and Africa.

Our Workshop

Our Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2 .
