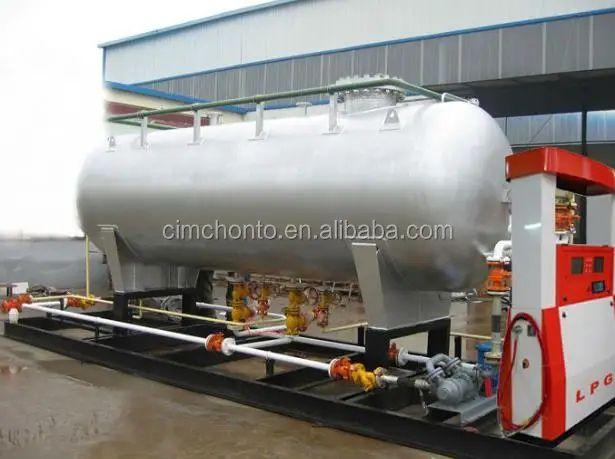

5 metric ton lpg filling skid with dispenser for sale gas filling plant

  • >=1 Units
    $20,000.00
Model Number:
WG18-1600-10
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Graphic customization (Min. Order: 1 Units)

More

Customized packaging (Min. Order: 1 Units) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
CIMC Enric Hongtu
Dimension(L*W*H):
6800*2200*2420mm
Capacity:
10m3
Weight:
5MT
After-sales Service Provided:
Field maintenance and repair service
Warranty:
1 Year
Working pressure:
≤1.61MPa
Design pressure:
1.61 MPa
Hydraulic test pressure:
2.22MPa
Working temp.:
-20~50 ℃
Ambient temperature:
-20~50 ℃
Life expectancy:
20 years
Corrosion allowance:
1.0mm
Wind load & snow load:
Not considered
Main Material:
Q345R
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard for Export
Port
Jinzhou, Shanghai
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Product Description


I. Standard Configuration
Storage Tank, Underframe, Pipeline System, LPG Filling Pump, Electrical Filling Scale, Electrical Control System, Sunshed
II. Performance Advantages
This project is an integrated equipment for metering civil LPG storage tank (household gas tank). The main equipment adopts integrated skid design, including LPG storage tank, supplying pipeline and hosepipe, hydrocarbon pump and pipeline, LPG filling scale and control carbinet. It has the unloading function for LPG tanker with pump, unloading function for LPG storage tank skid with pump, filling function for LPG cylinder in car, bottling function for civil LPG cylinder, loading function for LPG tanker, function of safe reflux, etc. This product has below advantages:
High integrity, small occupied land area
Standard design, seriation is formed

Complete functions, meet various customer requirement
PLC control, safe and reliable
Short installation time, commissioning inside plant
Skid design, convenient for transportation

III. Technical Parameters for 20m3 LPG Filling Skid

Medium
LPG
Design Temperature
50℃
Environmental Temperature
-20~50 ℃
Design Pressure
1.61 MPa
Max. Working Pressure in Pipe
1.77 MPa
Life expectancy
20 years
Total System Power
LPG Tank
Max. Working Pressure
1.77 MPa
Design Pressure
1.61 MPa
Volume
10m3
Overall Dimension
Φ1600×2370×5300mm
Curb Weight
3400 kg
LPG Dispenser
Chinese Brand RT-LPG124
whole dimension
6800×2200×2420mm
Packing & Delivery
Company Introduction

CIMC·Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd. has 30 years experience in the design and manufacturing of storage and transportation equipments for liquefied gas and dangerous chemicals. The company has participated in the compiling of National TSG R0005-2011 Mobile Pressure Vessel Safety Technology Supervision Regulation and GB 18564.1-2006 Liquid & Dangerous Goods Transport Tank Vehicle Standards.

The company has developed 62 models of liquefied gas transport vehicle which features more than 30 patented technologies. For 20 years, the production and sales volume always ranks the first in domestic market, and the products have been exported to more than 40 countries and areas.

Hongtu liquefied gas transport vehicle is specially used for the road transport of liquefied gas like LPG, propane, propene, liquid ammonia, butadiene, iso-butane, and isobutene. The company has more than 30 core technologies including stress analysis and design, high strength light aluminum alloy weather board made of aeronautical materials with military manufacturing technology, wholly embedded safety valve, quadrangular outriggers, precision assembly between the tank and the travel mechanism, etc. as well as professional modular manufacturing lines, robot welding, etc. For more than 20 years, the company is always in the leading position and ranks the first in terms of market share in the domestic market.

Our Workshop

Our Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2 .

Main Products

 Semi-trailer

 Bobtail/Rigid Tanker

 ISO Tank /Tank Container

 Spherical Tank

 Horizontal/Mounded/Domestic Storage Tank

LPG Plant/Filling Plant/Autogas Station

LPG/Autogas Filling Skid
