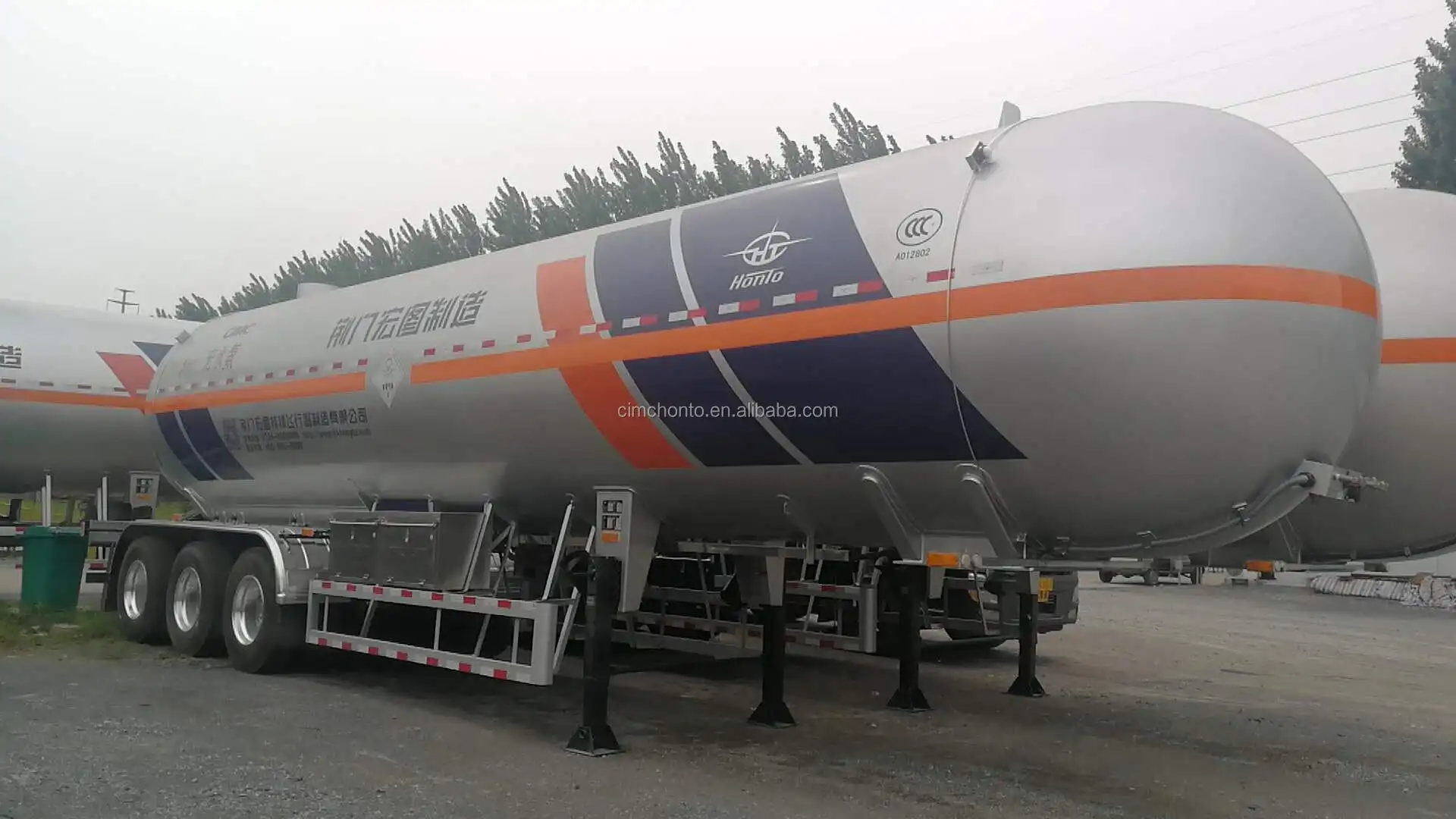

Liquid Ammonia anhydrous ammonia tank transport semi trailer

  • >=1 Pieces
    $45,000.00
Model Number:
HT9409GYQC3
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Graphic customization (Min. Order: 1 Pieces)
Customized logo (Min. Order: 1 Pieces)

More

Customized packaging (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Steel
Certification:
GB
Size:
124790x2500x3900mm
OEM No.:
N
Max Payload:
25970KG
Place of Origin:
Hubei, China
Brand Name:
CIMC HONTO
Product name:
Liquid Ammonia Semi-trailer
Gross Vehicle Weight:
40000KGS
Kerb Weight:
14030KGS
Design Pressure:
1.91/-0.1MPa
Working Pressure:
≤1.91 MPa
Working Temperature:
-20~50℃
Tank Material:
Q370R(Normalized)
Corrosion allowance:
2.0
Joint efficiency:
1.0
Capacity:
49 CBM
Supply Ability
Supply Ability:
200 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Nude packing
Port
Any Port in China
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

Main Technical Characteristic of 49 m³ Liquid Ammonia Transport Semi-trailer

Total Mass
40000 KGS
Payload
25970 KGS
Kerb Mass
14030 KGS
Overal Dimensions LxWxH
12790x2500x3900 mm
Design Pressure
1.91/-0.04 MPa
Environmental Temperature
-20~50 ℃
Performance Datas
Volume
49 m³
Inside Diameter
2310 mm
Total Length of Vessel
12492 m
Maximu Allowable Working Pressure
1.91MPa
Weight of Vessel
10000 KGS
Design Temperature
-20~50 ℃
S.G.
0.53 t/l
Hydrostatic Test Pressure
2.49 MPa
Welding Joint Coefficient
1.0
Corrosion Allowance
2.0
Material
Q370R(Normalized)
Thickness
13/8.5
Working Pressure
≤ 1.91MPa
Certificates
Company Introduction

CIMC·Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd. has 30 years experience in the design and manufacturing of storage and transportation equipments for liquefied gas and dangerous chemicals. The company has participated in the compiling of National TSG R0005-2011 Mobile Pressure Vessel Safety Technology Supervision Regulation and GB 18564.1-2006 Liquid & Dangerous Goods Transport Tank Vehicle Standards.


The company has developed 62 models of liquefied gas transport vehicle which features more than 30 patented technologies. For 20 years, the production and sales volume always ranks the first in domestic market, and the products have been exported to more than 40 countries and areas.


Hongtu liquefied gas transport vehicle is specially used for the road transport of liquefied gas like LPG, propane, propene, liquid ammonia, butadiene, iso-butane, and isobutene. The company has more than 30 core technologies including stress analysis and design, high strength light aluminum alloy weather board made of aeronautical materials with military manufacturing technology, wholly embedded safety valve, quadrangular outriggers, precision assembly between the tank and the travel mechanism, etc. as well as professional modular manufacturing lines, robot welding, etc. For more than 20 years, the company is always in the leading position and ranks the first in terms of market share in the domestic market

Workshop
Main Products

Semi-trailer


Bobtail/Rigid Tanker

ISO Tank /Tank Container

Spherical Tank

Horizontal/Mounded/Domestic Storage Tank

LPG Plant/Filling Plant/Autogas Station

LPG/Autogas Filling Skid
