China GB Standard 40' 51m3 LPG 20.91 tons Propane lpg pressure vessel tank container

FOB Reference Price:Get Latest Price
$24,000.00 - $26,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HT40FD - 1
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Capacity:
51 m3
Place of Origin:
Hubei, China
Brand Name:
CIMC Enric Hongtu
Dimension(L*W*H):
12192x2438x2591 mm
Weight:
13250 kg
Certification:
China GB Standard
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service, Video technical support
Product name:
40' tank container for LPG propane
Mode of transportation:
Road
Max. gross mass:
34160 kg
Max. payload:
20910 kg
Environment temp.:
-20~55 ℃
Working pressure:
≤1.8 MPa
Max. filling density:
0.41 t/cbm
Joint efficiency:
1.0
Corrosion allowance:
1.0 mm
Materials:
Q370R Normalized
Supply Ability
Supply Ability:
2000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Naked package or customized wih protective covers
Port
Shanghai, Wuhan, Jingzhou or else
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Introduction

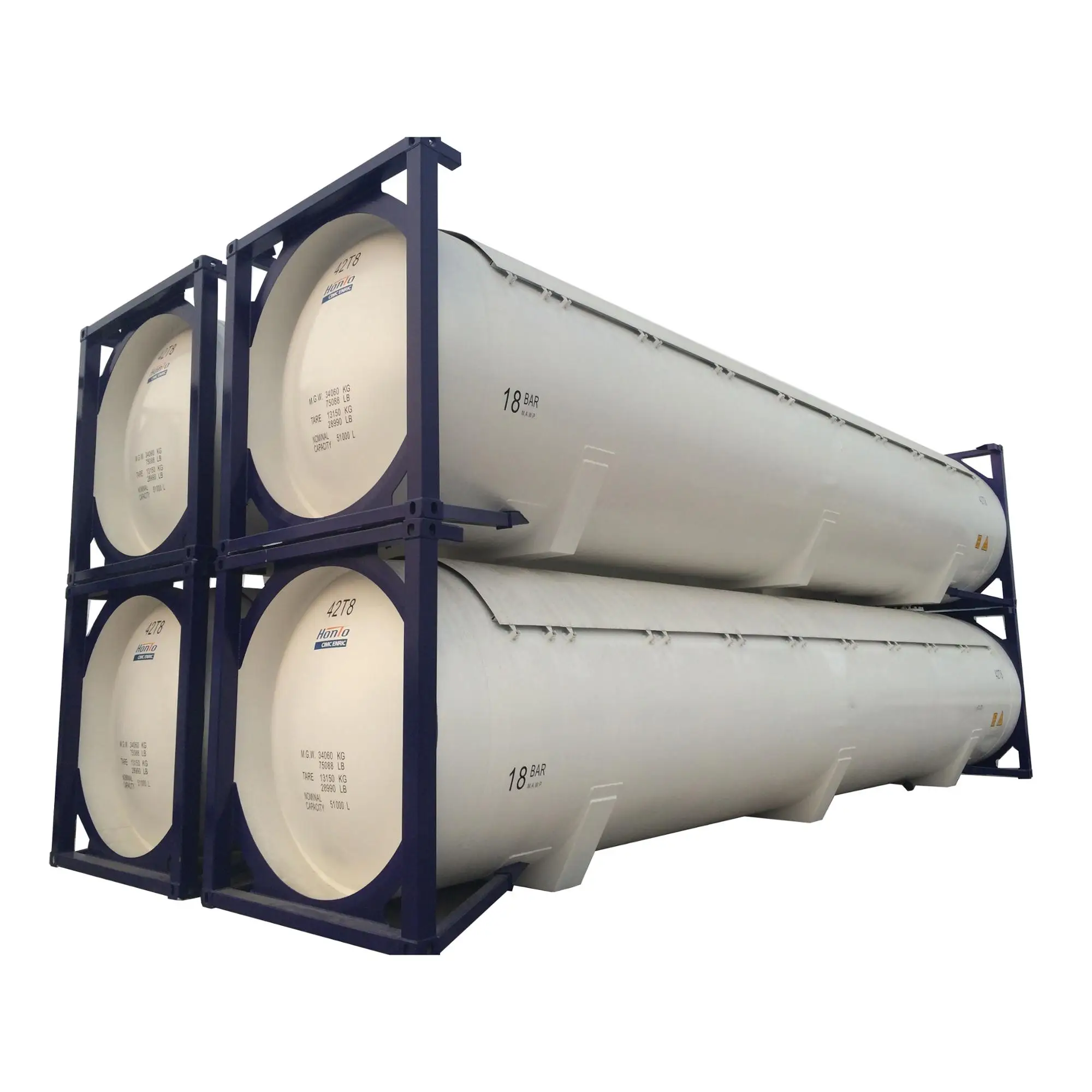

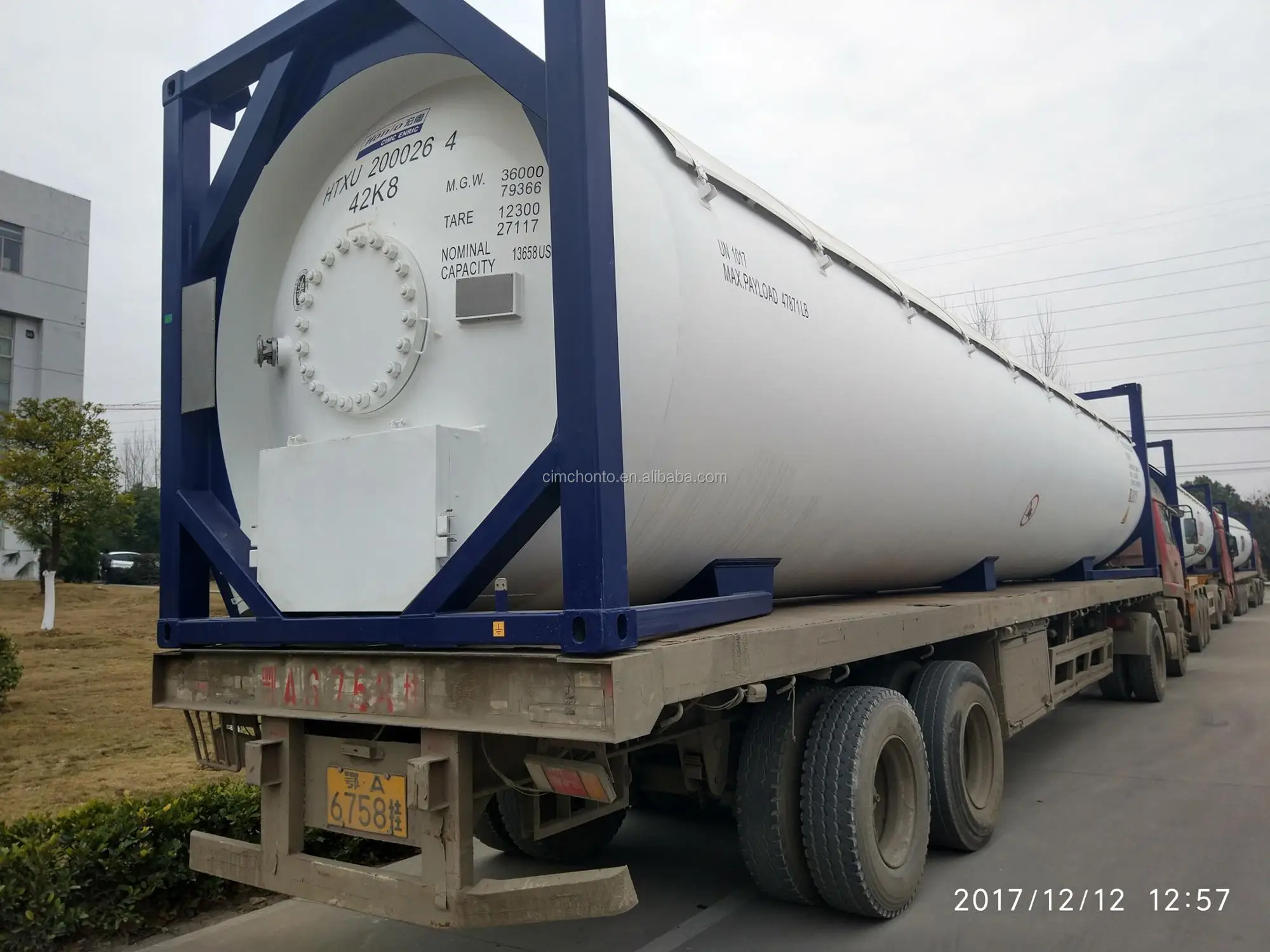

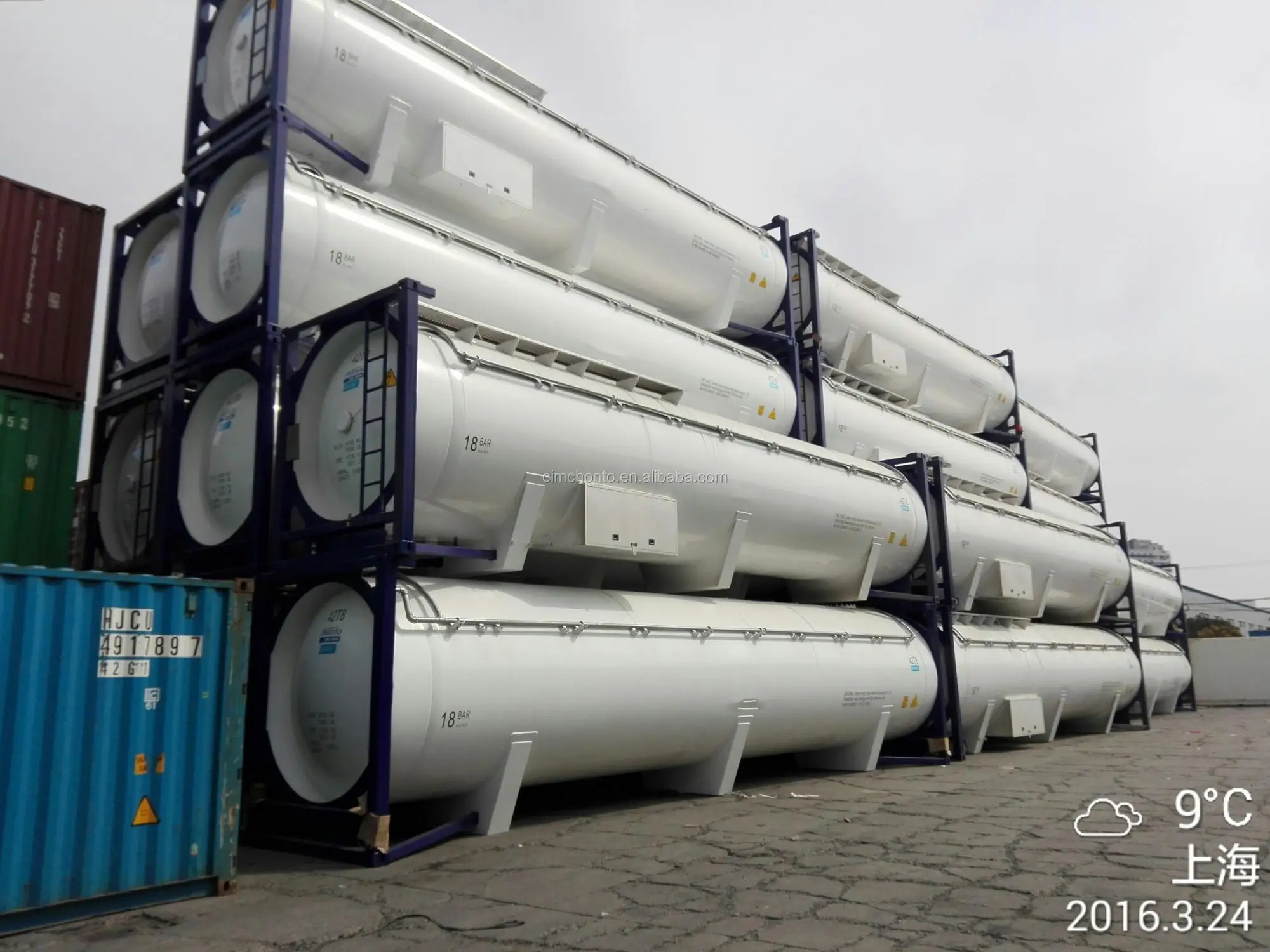

Tank Container

Hongtu has mature capability of design and manufacture tank containers. The tank containers are equipped with FORTVALVE loading & unloading accessories and safety valves; side-mounted floating level meter on the rear head and aluminum sunshield on the top. With all necessary certificates, HONGTU tank containers meet international road, marine and railway transportation requirements.

Technical specifications
Design code:
ASME BPVC Ⅷ-1/Ⅷ-2,RID/ADR,IMDG T50,TC,UIC,CSC,TIR,ISO1496/3
Vessel capacity: 24.7m3(20feet), 51.7m3(40feet)
Material: SA-516,SA-612
Design certificates: BV, LR, CCS

Product Parameters
40' Tank Container for LPG Propane
Tank Container
Mode of Transportation
Road
Environmental Temp.
-20~55℃
Workig Pressure
≤ 1.8 MPa
Tare Weight
13250 kg
Max. Gross Weight
34160 kg
Max. Payload
20910 kg
Frame(L/W/H)
Length:12192mm   Width:2438mm   Height:2591mm




Vessel Performance Datas
Volume
51 m³
Internal Diameter
2380 mm
Total Length
11911 mm
Design Pressure
1.8 MPa
Weight of Vessel
11750 kg
Design Temp.
-20/55℃
Max. Filling Density
0.41 t/m³
Joint Efficiency
1.0
Corrosion Allowance
1.0 mm
Material
Q370R Normalized
Shell Thickness
13 mm
Head Thickness
14mm
Structure
Elliptical Heads
Cynlindrical Shell
Mediums
LPG
Propane
