25m3x2 40' 40ft 40feet Seperate Anti-explosion Skid Mounted Diesel Fueling Equipment portable fuel station

FOB Reference Price:Get Latest Price
$50,000.00 - $60,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HT QZJ-12-25-1
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Capacity:
25m3x2
Place of Origin:
Hubei, China (Mainland)
Brand Name:
CIMC Enric Hongtu
Dimension(L*W*H):
12192x2438x2591 mm
Weight:
14830 kg
Certification:
China GB Standard
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service, Video technical support
Payload:
38026 kg
Gross Weight:
52856 kg
Filling Rate:
0.9
Filling Medium:
Diesel
Air Leakage Test Pressure:
0.036 MPa / 1.5 KPa
Design Pressure:
Ordinary Pressure
Design Temperature:
50℃
Corrosion Allowance:
1.0mm
Materials:
Q235-B
Weight of Internal Tank:
7170 kg
Supply Ability
Supply Ability:
2000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Naked package or customized wih protective covers
Port
Shanghai, Wuhan, Jingzhou or else
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Product Introduction

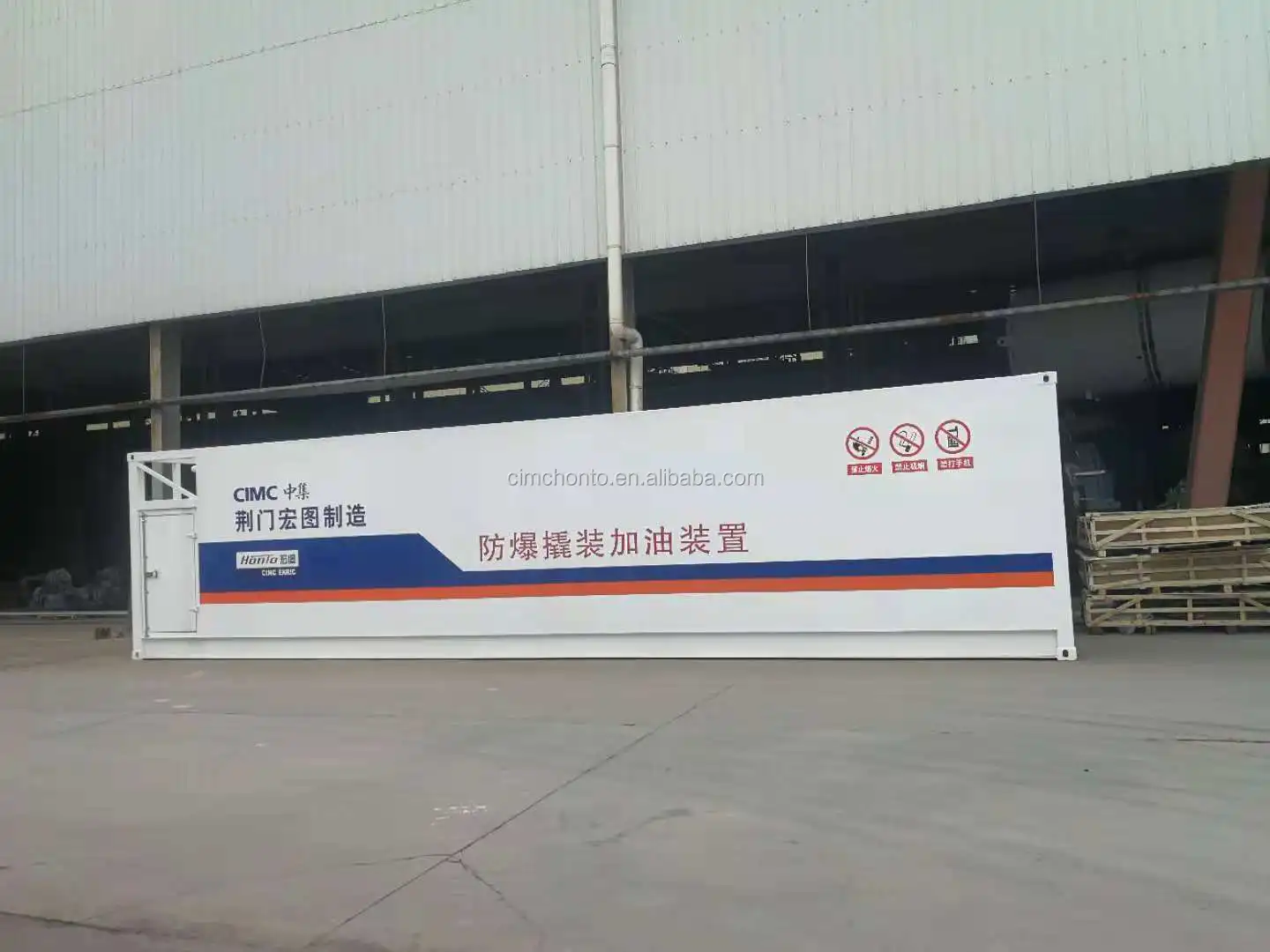

Seperate Anti-explosion Skid Mounted Fueling Equipment

Technical Data Table
Tank Container
Curb Weight
14830 kg
Payload
38026 kg
Gross Weight
52856 kg
Design Volume(Double Internal Tanks)
25m3*2
Filling Rate
0.9
Filling Medium
Diesel
Air Leakage Test Pressure
(Internal Tank)
0.036 MPa
Air Leakage Test Pressure
(Interlayer between External and Internal Tank)
1.5 KPa
Boundary Dimension
(LengthxWidthxHeight)
12192x2438x2896mm
Tank
Design Pressure(Internal Tank)
Ordinary Pressure
Design Pressure(External Tank)
Ordinary Pressure
Design Pressure
50℃
Materials of Main Part of Internal Tank
Q235-B-δ6
Materials of Main Part of External Tank
Q235-B-δ2.5
Corrosion Allowance
1.0 mm
Weight of Internal Tank
7170 kg
Boundary of Internal Tank
(LengthxWidthxHeight)
4712x2210x2625 mm
Equipment Data Table
Equipment Name
Equipment Model
Flow/Capacity
Pressure/Others
Internal Tank 1 - Internal Tank 2
Net Volume
25m3*2
Ordinary Pressure
External Tank
/
Ordinary Pressure
Self-priming Centrifugal Oil Pump
80CYZ-A-17
Flow 43m3/h
Lift 17m
Motor Power 4Kw
Single Oil Double Guns Double Display
Large Flow Skid Mounted Oil Dispenser with Pump
JT1100GB-LQ
5~70L/min
Pump Outlet Pressure≤300KPa
AC220V, 750W, 50Hz
Why Choose Us

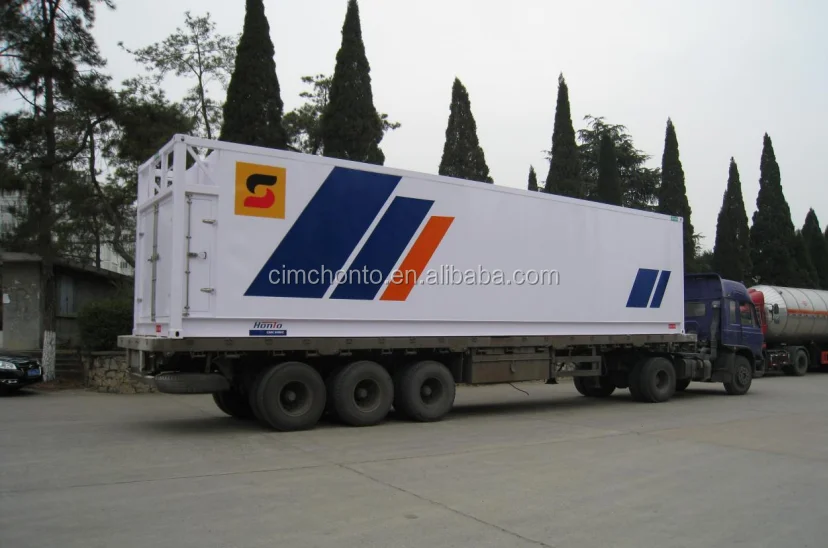

Product Packing
