ASME 1000 tons 2000m3 2026.4m3 Propane Spherical lpg gas spheres tank

  • 1 - 9 Pieces
    $500,000.00
  • >=10 Pieces
    $450,000.00
Model Number:
AQG1501 -0000-00 - 2
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 180 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Capacity:
2026.4m3
Place of Origin:
Hubei, China
Brand Name:
CIMC Enric Hongtu
Dimension(L*W*H):
18637mmx15700mmx38mm
Weight:
270466 kg
Certification:
ASME
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Working pressure:
1.2 MPa
Design pressure:
1.737 MPa
Max. allowable working pressure:
1.737 MPa
Working temperature:
28 ℃
Design temperature:
42 ℃
Spherical Shell Material:
SA-537M Cl2 (Hardened and Tempered Condition)
Sharpy T..:
0 ℃
Corrosion allowance:
1.0 mm
Joint Efficiency:
1.0
Charging Efficiency:
0.9
Supply Ability
Supply Ability:
50 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
sea-shipment packing
Port
any port in china
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 180 To be negotiated
Product Description

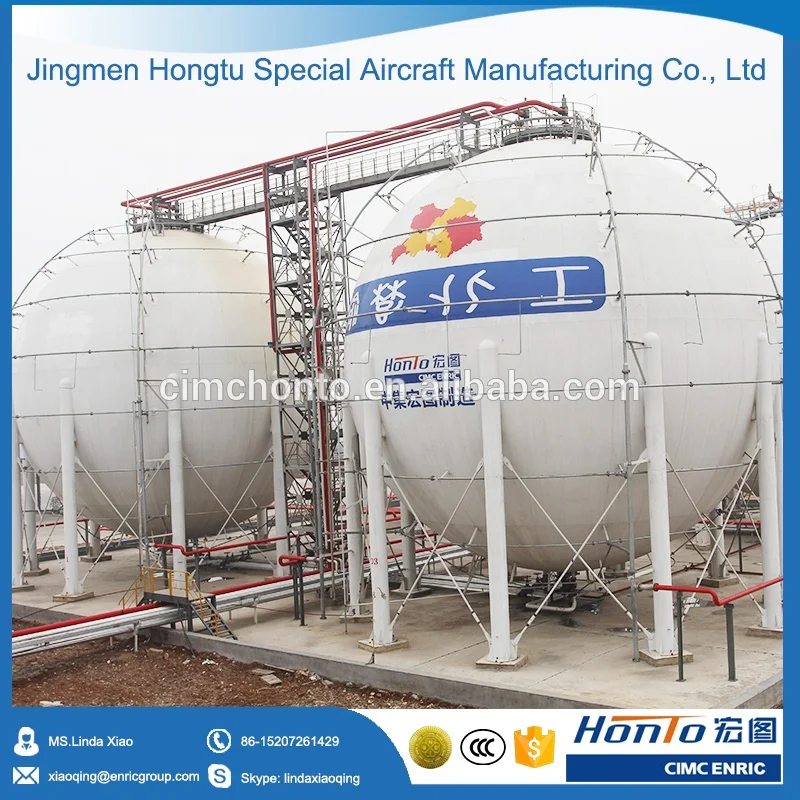

LPG Spherical Tank

HONGTU has the design and fabrication capability of large ASME codes spherical tanks and owns 5 sets of large hydraulic pressing machine. The maximum pressing capacity for spherical shell plate is thickness 80mm. Besides, HONGTU can also construct the spherical tanks made of special steel such as stainless steel, stainless steel clad carbon steel plate, 9Ni steel and etc. , and owns relevant project references.

Technical Specifications
Design Codes:
ASME BPVC Ⅷ-1/Ⅷ-2,GB/T 12337,JB/T 4732
Vessel Capacity: 50m3~10000m3 liquefied gas spherical tank, 200m3 ~20000m3 gas spherical tank
Material: SA-516,SA-537 CL1,SA-537 CL2,Q370R etc.

SPECIFICATIONS for 2000 m3 LPG Spherical Tank
Design capacity
2026.3m³
Net weight
270466 kg
Payload
1000 tons
Full water weight
2310000 kg
Working pressure
1.2 MPa
Design pressure
1.737 MPa
Max. allowable working pressure
1.737 MPa
2828Working temperature
28 ℃
Design temperature
42 ℃
Mediu Sp.
Flammable
Spherical Shell Material
SA-537M Cl2 (Hardened and Tempered Condition)
Sharpy T.
0 ℃
Corrosion Allowance
1.0 mm
Joint efficienty
1.0
Charging efficiency
0.9
Wind pressure
1035 Pa
Seismic Intensity
7 degress (Neaby Seismic)
Field Soil Category
III
Hydraulic testing pressure
2.484 MPa
Air tightness testing pressure
1.737 MPa
Design/Fabrication/Inspection Standard
ASME Code SEC. VIII DIV.2 2013 Edition
Refering to "Steel Spherical Tanks" GB12337-2014
Certifications

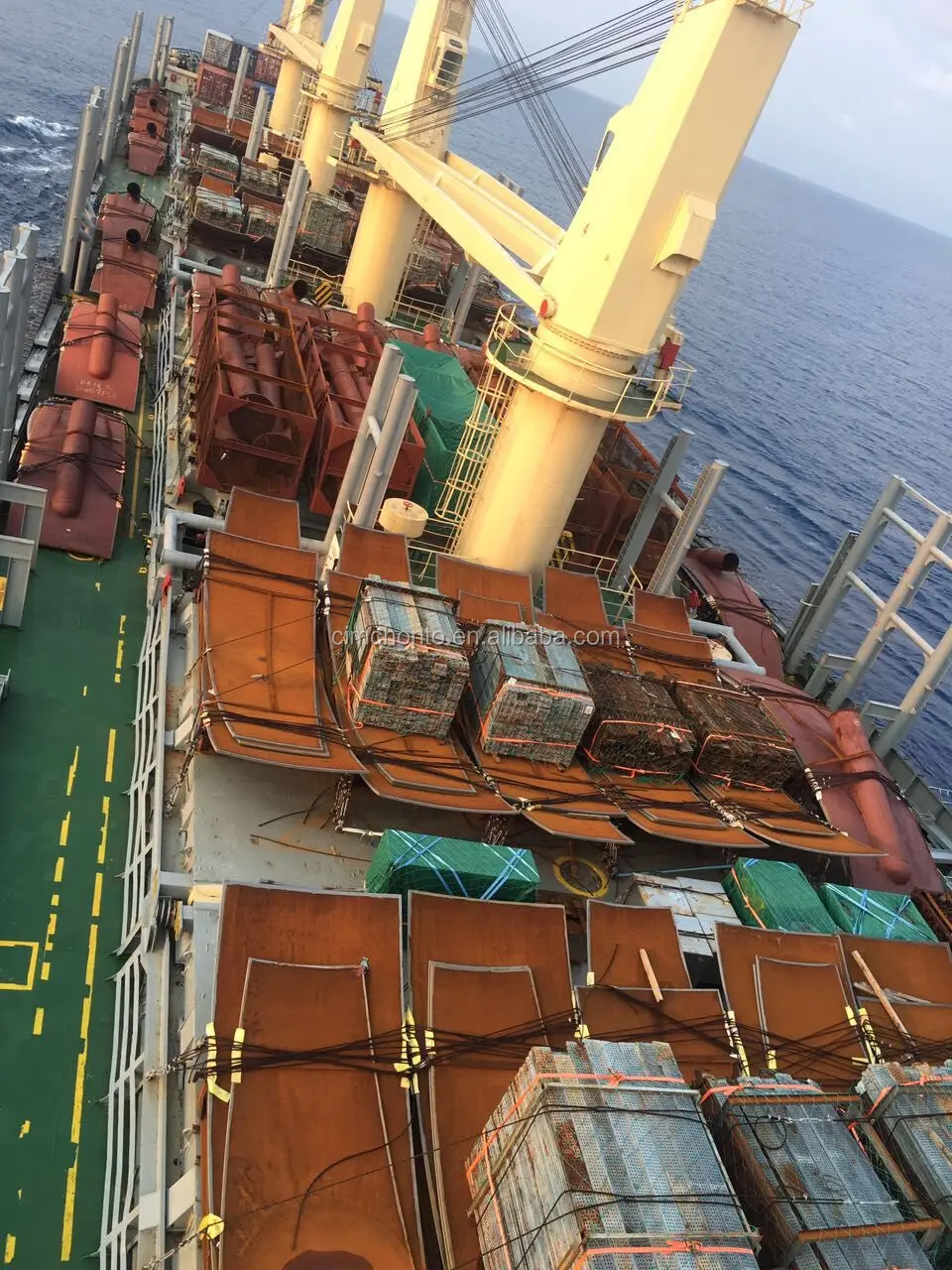

Packing & Delivery
