ASME 1000m3 974.3m3 500tons Propane Sphere lpg storage spherical tank

  • 1 - 1 Pieces
    $1,000,000.00
  • >=2 Pieces
    $900,000.00
Model Number:
QGF1408-0000-00 - 2
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 180 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
CIMC Enric Hongtu
Dimension(L*W*H):
14725mmx12300mmx44mm
Capacity:
974.3 m3
Weight:
184710 kg
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Warranty:
1 Year
Working pressure:
1.57 MPa
Design pressure:
1.77 MPa
Max. allowable working pressure:
1.77 MPa
Working temperature:
40 ℃
Design temperature:
55 ℃
Spherical Shell Material:
SA516 M Gr485
M.D.M.T:
0 ℃
Corrosion allowance:
1.5 mm
Joint Efficiency:
1.0
Charging Efficiency:
0.9
Supply Ability
Supply Ability:
50 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
sea-shipment packing
Port
any port in china
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 180 To be negotiated
Product Description

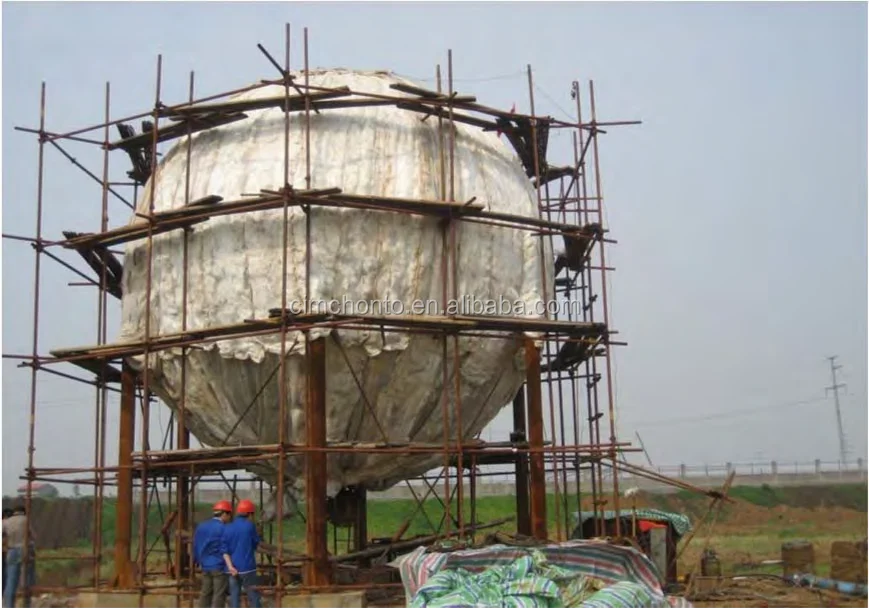

LPG Spherical Tank

HONGTU has the design and fabrication capability of large ASME codes spherical tanks and owns 5 sets of large hydraulic pressing machine. The maximum pressing capacity for spherical shell plate is thickness 80mm. Besides, HONGTU can also construct the spherical tanks made of special steel such as stainless steel, stainless steel clad carbon steel plate, 9Ni steel and etc. , and owns relevant project references.

Technical Specifications
Design Codes:
ASME BPVC Ⅷ-1/Ⅷ-2,GB/T 12337,JB/T 4732
Vessel Capacity: 50m3~10000m3 liquefied gas spherical tank, 200m3 ~20000m3 gas spherical tank
Material: SA-516,SA-537 CL1,SA-537 CL2,Q370R etc.

SPECIFICATIONS for 1000 m3 LPG Spherical Tank
Total Capacity
974.3m³
Net weight
184710 kg
Payload
500 tons
Full water weight
1180000 kg
Working pressure
1.67 MPa
Design pressure
1.77 MPa
Max. allowable working pressure
1.77 MPa
Working temperature
40 ℃
Design temperature
55 ℃
Mediu Sp.
Flammable
Spherical Shell Material
SA 516 M Gr485
Sharpy T.
0 ℃
Corrosion Allowance
1.5 mm
Joint efficienty
1.0
Charging efficiency
0.9
Wind pressure
1500 Pa
Seismic Intensity
7 degress (Neaby Seismic)(0.15g)
Field Soil Category
II
Hydraulic testing pressure
2.301 MPa
Air tightness testing pressure
1.77 MPa
Design/Fabrication/Inspection Standard
ASME Code SEC. VIII DIV.1 2017 Edition
Refer to GB/T 12337-2014 "Steel Spherical Tanks"
