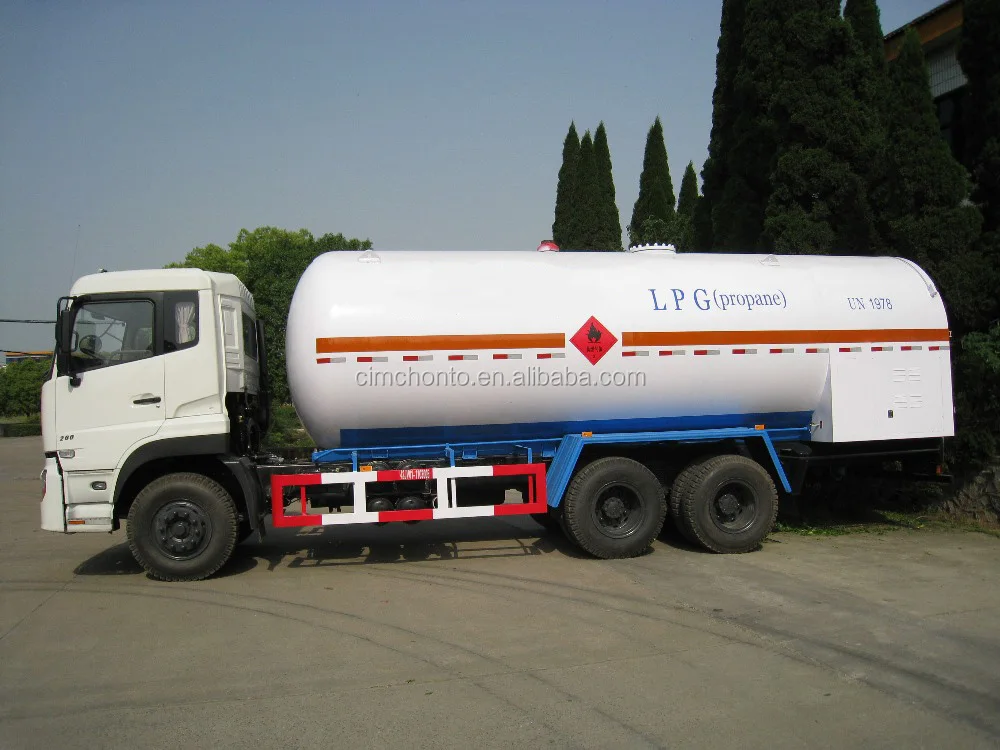

GB 5.7 tons 13.58m3 LPG Butane Bobtail Tanker with pump propane gas delivery trucks

  • 1 - 9 Units
    $50,000.00
  • >=10 Units
    $45,000.00
Model Number:
HT5160GYQ
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Storage:
LPG
Drive Wheel:
4x2
Horsepower:
150 - 250hp
Transmission Type:
Manual
Fuel Type:
Diesel
Tank Volume:
15001 - 30000L
Engine Capacity:
8300cc
Dimensions (L x W x H) (mm):
8140x2450x3450 mm
Brand Name:
CIMC Enric Hongtu
Place of Origin:
Hubei, China
Gross Vehicle Weight:
16000
Chassis:
SX5160CCYLA1
Kerb weight:
10170 kg
Payload (product weight):
5700 kg
Design pressure:
1.61/-0.1MPa
Design temperature:
50℃
Tank material:
Q345R
Corrosion allowance:
1 mm
Tank mass:
3390 kg
External Dimensions of Tank:
2000*10.5(11)*4692
Hydraulic Test Pressure:
2.10 MPa
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude packing
Port
any port in China
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Product Description

Hongtu is qualified to design and manufacture bobtail truck with pump included, and with loading & unloading system on the side or at the rear of the truck. The pump can be powered by PTO, hydraulic oil or electric machinery. The valves and instruments used on the bobtail truck are from well-known international brands, catering to application requirements of Europe, America, Southeast Asia and other countries.

Technical specification
Design code:
 ASME BPVC Ⅷ-1/Ⅷ-2,EN 12493,GB/T 19905,JB/T 4732
Vessel capacity: 5m3~40m3
Material: SA-516, SA-612, P460, Q420R, Q370R, etc.

HT5160GYQ 13.58m³ LPG Tanker (Propane)
Item
Data
Vehicle
Chassis
SX5160CCYLA1
Kerbweight
10170kg
Payload (Product weight)
5700kg
Gross Vehicle Weigh(GVW)
16000kg
External Dimensions
(Length*Width*Height)
8140x2450x3450
Full load
First front axle load
5200 kg
Middle and rear axle load
10800 kg
Max. Vehicle roll anlge
>35°
Design the limited velocity
Straight road
60 km/h
Turning
25 km/h
Tank
Design pressure
1.61/-0.1 MPa
Calculation pressure
1.73 MPa
Design temperature
50 ℃
Water capacity
13.58 m3
Filling medium
LPG (Propane)
Tank material
Q370R
Corrosion allowance
1 mm
Tank mass
3390 kg
Hydraulic test pressure
2.10 MPa
Pressure of leak test
1.61 MPa
Heat treatment method
PWHT
External dimensions
(In-diameter*Thickness*Length)
2000x10.5(11)x4692
Service years
Ten years
Certifications
Company Introduction

CIMC·Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd. has 30 years experience in the design and manufacturing of storage and transportation equipments for liquefied gas and dangerous chemicals. The company has participated in the compiling of National TSG R0005-2011 Mobile Pressure Vessel Safety Technology Supervision Regulation and GB 18564.1-2006 Liquid & Dangerous Goods Transport Tank Vehicle Standards.

The company has developed 62 models of liquefied gas transport vehicle which features more than 30 patented technologies. For 20 years, the production and sales volume always ranks the first in domestic market, and the products have been exported to more than 40 countries and areas.

Hongtu liquefied gas transport vehicle is specially used for the road transport of liquefied gas like LPG, propane, propene, liquid ammonia, butadiene, iso-butane, and isobutene. The company has more than 30 core technologies including stress analysis and design, high strength light aluminum alloy weather board made of aeronautical materials with military manufacturing technology, wholly embedded safety valve, quadrangular outriggers, precision assembly between the tank and the travel mechanism, etc. as well as professional modular manufacturing lines, robot welding, etc. For more than 20 years, the company is always in the leading position and ranks the first in terms of market share in the domestic market.

Our Workshop

Our Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2 .

Main Products

 Semi-trailer

 Bobtail/Rigid Tanker

 ISO Tank /Tank Container

 Spherical Tank

 Horizontal/Mounded/Domestic Storage Tank

LPG Plant/Filling Plant/Autogas Station

LPG/Autogas Filling Skid
