GB 11.12m3 10.89m3 4.26 tons Vertical Stationary Liquid Methane CH4 Storage lng cryogenic tank

  • 1 - 9 Sets
    $20,000.00
  • >=10 Sets
    $18,000.00
Model Number:
CFL-10/0.8
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Energy & Mining
Condition:
New
Capacity:
11.12m3
Place of Origin:
Hubei, China
Brand Name:
CIMC Enric Hongtu
Dimension(L*W*H):
6738*2216*2216
Weight:
5.68 tons
Certification:
GB
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Volume of Interlayer:
10.89m3
Inner Diameter:
1702/2204 mm
Materials of Inner Vessel:
S30408
Materials of Outer Shell:
Q345R
Thickness of Inner Vessel:
6/7 mm
Thickness of Outer Shell:
6/8 mm
Design Pressure:
0.88/-0.1 Mpa
Design Temperature:
-196/50 ℃
MAWP:
-/-0.1 MPa
Working Pressure:
0.8/3 MPa
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
For Export
Port
Any ports in China
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Description

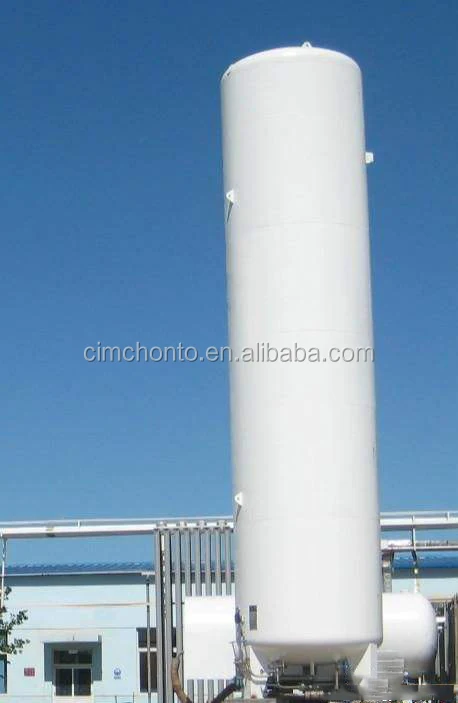

LNG Storage Tank

Design Code: GB/T 150, GB/T18442, ASME BPVC VIII-1

Capacity: 5~200m³

Working Pressure: 0.8~1.2MPa

Type: Vertical or Horizontal

Materials: S30408 (for Inner Tank);

                   Q345R, 16MnDR (for Outer Tank)

Item
Data
Volume of Vessel
Inner Vessel
11.12m³
Interlayer
10.89m³
Inside Diameter of Vessel
Inner Vessel
1702mm
Outer Shell
2204mm
Height(Length) of Vessel
Height(Length) of Inner Vessel
5196mm
Height(Length) of Outher Shell
6138mm
Materials
Shell of Inner Vessel
S30408
Head of Inner Vessel
S30408
Shell of Outer Shell
Q345R
Head of Outer Shell
Q345R
Thickness
Shell of Inner Vessel
6mm
Head of Inner Vessel
7mm
Shell of Outer Shell
6mm
Head of Outer Shell
8mm
Boundary Dimensions
6728*2216*2216mm
Weight of Tank
5680 kg
Filling Weight
4260 kg
Design Pressure
Inner Vessel
0.88MPa
Outer Shell
-0.1MPa
Design Temperature
Inner Vessel
-196℃
Outer Shell
50℃
MAWP
Inner Vessel
/
Outer Shell
- 0,1 MPa
Medium of Inner Vessel
LNG
Medium of Interlayer
Expanded Perlite
Installation Type
Vertical
Insulation Type
Vacuum Powder Insulation
Working Pressure
Inner Vessel
0.8 MPa
Outer Shell
3 MPa (Absolute Pressure)
Working Temperature
Inner Vessel
-162℃
Outer Shell
Normal Temperature
Corrosion Allowance
0
Packing & Delivery
Company Information

CIMC ENRIC • Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called Hongtu, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since her establishment in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked 68th in Chinese Top 500 businesses), is engaged in R&D of normal temperature storage & transportation equipment and cryogenic storage & transportation equipment, EPC contracting, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2.

The Company always stands in the forefront leading the industrial development. "HONTO" Brand LPG tanker's production and sales has ranked No.1 in China for the past three decades with a domestic market share over 60% all along. Hongtu has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also the only LPG full-industrial chain equipment manufacturer and solution provider in China.

"HONTO" brand LPG storage and transportation equipment has been distributed to more than 32 countries in America, Middle East, South America, Southeast Asia, Northeast Asia and Africa.

Certificates

ASME U Certificate

ASME U2 Certificate

Member of World LPG Association

National Board of Boiler & Pressure Vessel Inspection

Our Products



Storage Tank

Design Code: ASME BPVC VIII-1/VIII-2, GB/T 150, JB4732
Vessel Capacity: 0.5m3~1000m3
Vessel Material: SA-516, SA-612, Q370R etc.



ISO Tank Container

Design code: ASME BPVC VIII-1/VIII/2, RID/ADR, IMDG T50, TC, UIC, CSC, TIR, ISO1496/3
Vessel capacity: 24.7m3(200feet), 51.7m3(40feet)
Material: SA-516, SA-612
Certificates: BV, TUV, CCS

Tanker Semi-trailer

Design codes: GB/T 150 Pressure Vessels, NB/T47058-2017, ASME BPVC SEC VIII-2
Capacity: 20m3~52.6m3
Material: S30408/SA-240 304(inner tank)/Q345R/SA-516(outer tank)

Options for you:

- ASME code tank + international brands of valves and safety accessories
- Chinese standard tank + Chinese brands of valves and safety accessories
- Chinese standard tank + international brands of valves and safety accessories



Tanker Truck

Design code: ASME BPVC VIII-1/VIII-2, EN12493, GB/T19905, JB4732
Capacity: 5m3~40m3
Material: SA-516, SA-517, SA-612, P460, Q420, Q370R, ETC.



Skid Filling Station

Refuel LPG vehicle and LPG cylinder.

Small land occupation
Easy operation
PLC control, safe and reliable
Convenient for transportation



Spherical Tank

Design Code: ASME BPVC Ⅷ-1/Ⅷ-2,GB/T 12337,JB/T 4732
Capacity: 50m3~10000m3 liquefied gas spherical tank, 200m3 ~20000m3 gas spherical tank
Material: SA-516,SA-537 CL1,SA-537 CL2,Q370R, etc.



LPG Carrier

Design Code: ASME BPVC VIII-1/VIII-2, IGC Code, etc.

Capacity: 1000m3~7000m3

Material: 15MnNiDR, 07MnNiMoDR(CF62), P690QL1, etc.
